MYLAPS X2 Decoder - Quick start guide

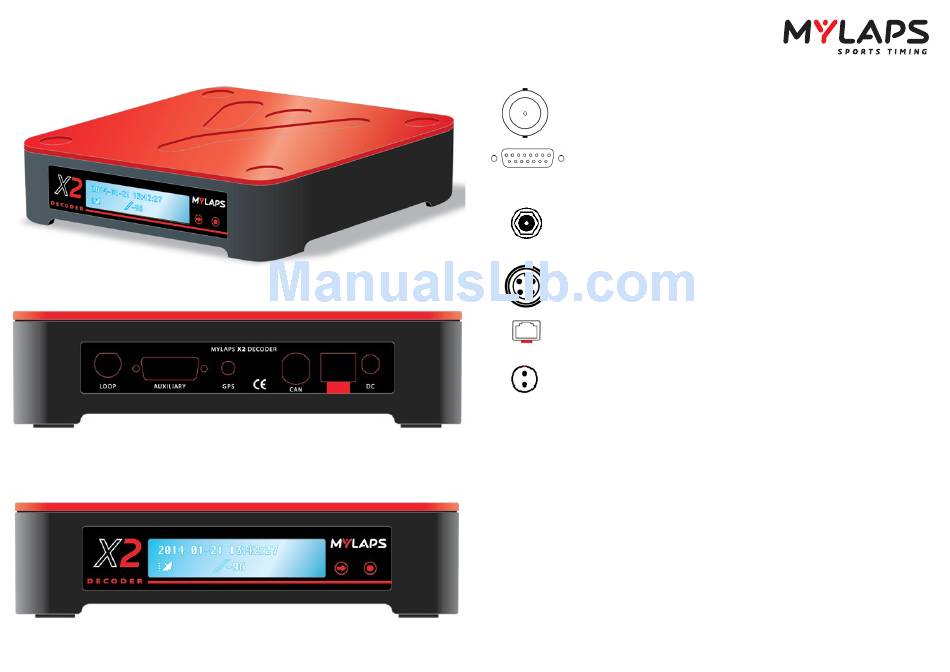

Installing the MYLAPS X2 Decoder
The detection loop: Connect here the coax cable coming from the
detection loop to the MYLAPS X2 decoder.
The auxiliary port: This port can be used to connect a photocell,
external start pulse or a sync pulse. For more information on how
to connect these devices, see appendix D of the MYLAPS X2 decoder
manual.
The GPS antenna: Connect the GPS antenna cable and place the
antenna where it has a clear view of the sky overhead to be able to
make connections to satellites in order to synchronize to the time of
day very accurately.
CAN connector: for future use
The network: Use a UTP cable to connect the MYLAPS X2 Decoder to the
MYLAPS X2 Server on the
on the connector will show if a physical network connection is available.
Power: Connect the supplied VDC adapter to the decoder and mains.
It is recommended to connect the VDC adapter to mains through
an Uninterruptable Power Supply (UPS) to avoid any interruption of
power supply to the decoder.
Technical Specifications of the MYLAPS X2 Decoder
• Dimensions
• Weight
• Clock Stability
• GPS Receiver
• GPS antenna connection
• Timing Resolution
• Loop connection
• Operating temperature range
• Humidity range
• Operating voltage range
• Power consumption
• Network Interface
• Auxiliary connector
• Can connection
Specifications are subject to change without notice
1
red port of the MYLAPS X2 Decoder. The LEDs
220x180x60mm / 8.7x7x2.4inch
1.5kg / 3.3lb
0.5PPM
quick fix, -160dB, 15nS
SMA, active
0,001s
1x BNC, max. 20m loop
-20 to 50 °C / -4 to 122 °F
10% to 90% relative
10 to 14.4VDC, Typical 12VDC
Appr. 5W
10-100BT (RJ45)
DB15, Female
Future use
2
