MYLAPS X2 Server - Quick start guide

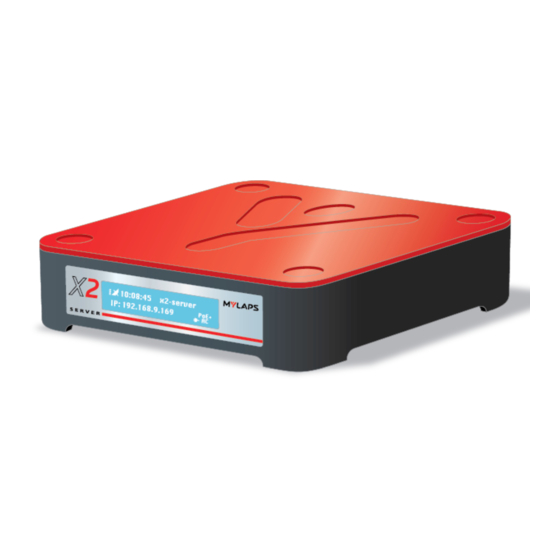

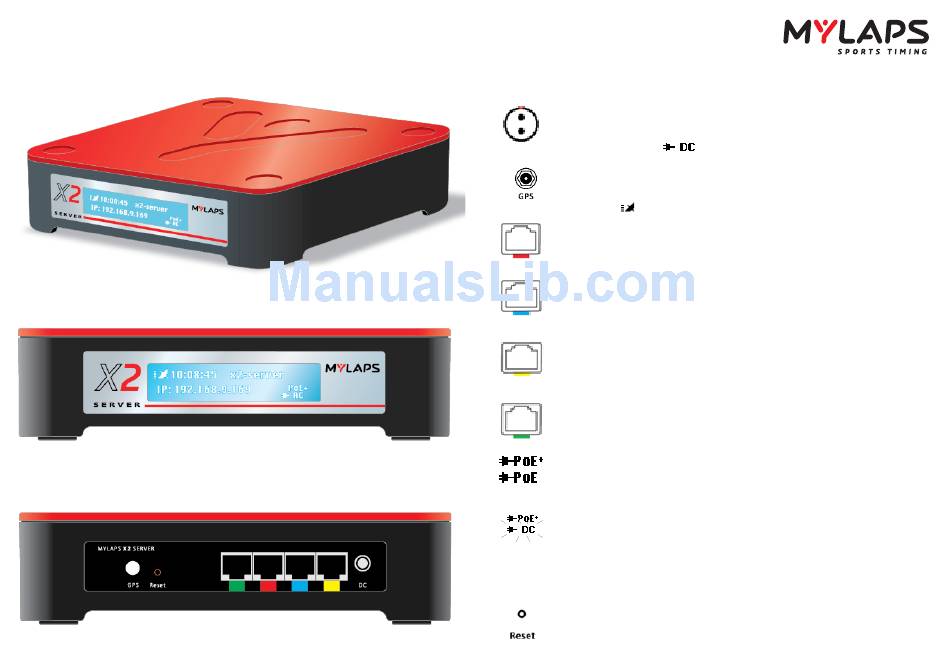

Installing the MYLAPS X2 Server
Connect the MYLAPS X2 server to the DC mains power supply. As
the MYLAPS X2 server has no on/off button it will start working
immediately after power is applied. The display in front will show a DC
power supply icon .
Connect the GPS antenna to the MYLAPS X2 Server to synchronize
the MYLAPS X2 server clock to UTC time. When there is GPS reception
the display will show a satellite icon with a received signal strength
indication .
Use a UTP cable to connect the MYLAPS X2 Server to a decoder on the
red port of the MYLAPS X2 Server. The LEDs on the connector will show
if a physical network connection is available.*
Use a UTP cable to connect the MYLAPS X2 Server to a local computer
network on the blue port of the MYLAPS X2 Server. The LEDs on the
connector will show if a physical network connection is available.*
Use a UTP cable to connect the MYLAPS X2 Server to a network with
internet access on the yellow port of the MYLAPS X2 Server. The LEDs on
the connector will show if a physical network connection is available.*
Use a UTP cable to connect the MYLAPS X2 Server to an extra decoder
on the green port of the MYLAPS X2 Server. The LEDs on the connector
will show if a physical network connection is available.*
By using a PoE(+) switch the MYLAPS X2 Server can also be powered
over a single port. In this case every port can be used and the display
will show a PoE or PoE+ icon.
When used together with the DC mains power supply the PoE(+)
power supply functions as a secondary 'back-up' power supply. When,
for example, the DC power supply is disconnected the display of the
MYLAPS X2 Server will show a blinking icon.
*
The color-coding of the network ports is an example on how the
MYLAPS X2 server can be connected. There are no dedicated ports and
all the ports have the same configuration.
Pressing the Reset button at the back panel of the MYLAPS X2 Server
will set it to factory defaults. Network settings will be set to DHCP and
the admin login account password will be set to 'admin'.
