Page 1: Instruction Manual

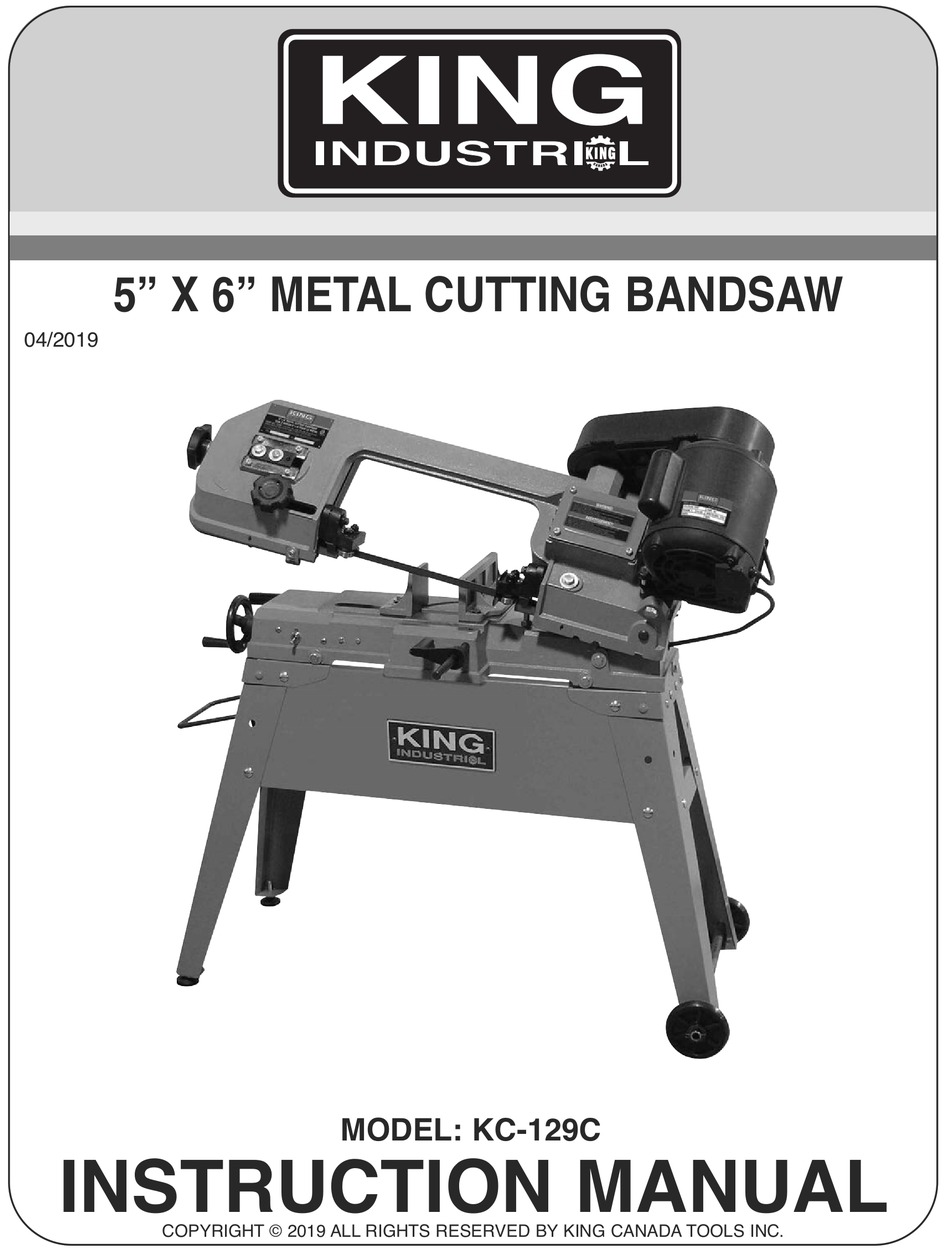

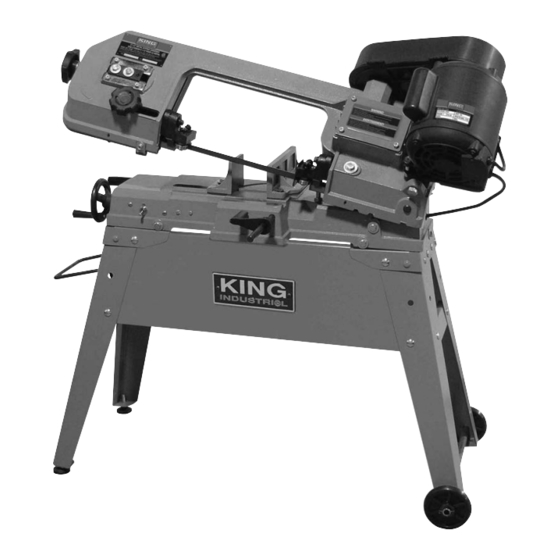

5” X 6” METAL CUTTING BANDSAW 04/2019 INSTRUCTION MANUAL MODEL: KC-129C COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. -
Page 2: Warranty Information
wARRANTY INFORMATION 2-YEAR KING CANADA TOOLS LIMITED WARRANTY OFFERS A 2-YEAR LIMITED WARRANTY FOR THIS METAL CUTTING BANDSAW INTENDED FOR NON COMMERCIAL USE PROOF OF PURCHASE Please keep your dated proof of purchase for warranty and servicing purposes. REPLACEMENT PARTS Replacement parts for this product are available at our authorized King Canada service centres across Canada. -
Page 3: General Safety Instructions
GENERAL & SPECIFIC SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS 1. KNOW YOUR TOOL footwear is recommended. wear protective hair covering to Read and understand the owners manual and labels affixed to the contain long hair. Roll up long sleeves above the elbows. 12. -
Page 4: Electrical Information
ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE wITH THE MACHINE DISCONNECTED FROM THE POwER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! KC-129C POWER SUPPLY (115V- 1 PHASE) PROPERLY GROUNDED OUTLET WARNING:... - Page 5 12) Blade guides 13) Gear Box 14) Pulley cover 15) Belt tension lock knob 16) Stand wheel set BANDSAW SPECIFICATIONS MODEL KC-129C Cutting capacity at 90˚ Rect. 4-1/2” x 6” Diam. 5” Cutting capacity at 45˚ Rect. 3” x 4-1/2” Diam. 3”...
- Page 6 ASSEMBLY & SETUP INSTRUCTIONS BEFORE OPERATING BANDSAw Assembling Stand, Wheel Set and Mounting Bandsaw (Fig.3) 1) Assemble the stand legs (A & E) Fig.3 and the 3 horizontal bars (B) and front panel (B) together using 8 carriage bolts, 8 washers and 8 hex. nuts. 2) Once the stand legs and horizontal bars/panel are assembled, assemble the cross braces (C) on top of each end of the stand using 8 carriage bolts, 8 washers and 8 hex.
- Page 7 ASSEMBLY & SETUP INSTRUCTIONS BEFORE OPERATING BANDSAw Installation of the Belt and Pulley Cover, Belt and Tensioning Belt To install the belt and pulley cover: 1) Place the belt and pulley cover fixing plate (A) Fig.7 around the pulleys as shown in Fig.7 and fix it into place using 2 hex.
- Page 8 SETUP & OPERATION BEFORE OPERATING BANDSAw Adjusting Vise Angle To adjust the angle of the vise: 1) Loosen hex. bolt (A) Fig.11 and slide the vise (B) to the desired angle. Use the scale (C) as a guide to set your angle. 2) Retighten hex.
- Page 9 SETUP & OPERATION INSTRUCTIONS, REPLACING BLADE Blade Selection Material Speed Belt groove used 1) A 14 tooth per inch, general-use blade is supplied with this Metal (FPM) Motor pulley Drive pulley Cutting Bandsaw. Tool, stainless or alloy 2) The choice of blade is governed by the thickness of the work to be cut. steel, bearing bronzes.
-
Page 10: Blade Tracking
BLADE TRACKING & GENERAL MAINTENANCE Adjusting the Tracking of the Blade The blade tracking has been set at the factory and will rarely need to be adjusted if the Bandsaw is used correctly. To adjust the tracking of the blade: 1) Turn the blade tension knob (A) Fig.19 counterclockwise so that the blade loosens a little. -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Materials loose in vise. 1. Clamp work securely. Excessive blade 2. Adjust speed or feed. breakage 2. Incorrect speed or feed. 3. Blade teeth spacing too large. 3. Replace with a small teeth spacing blade. 4.
