System Sensor OSY2 Installation And Maintenance Instructions page 4

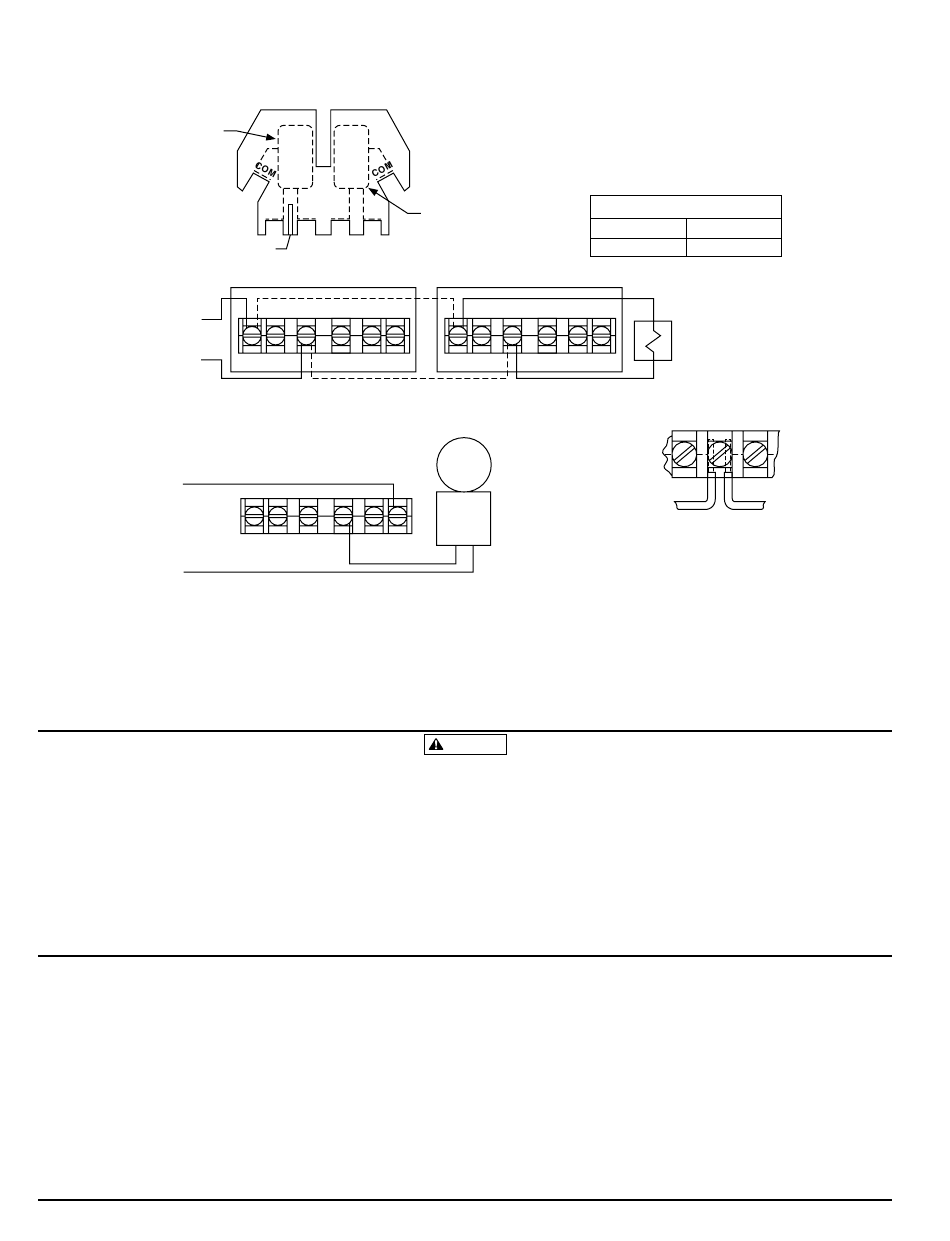

Figure 4. Supervisory switch wiring diagram:
Switch 1
to nonsilenceable initiating
zone of listed FACP
to power source
compatible
with bell
1. Alarms generated by the actuation of the activating lever
may not be received by a central station if telephone or
other communication lines to the detector are out of ser-
vice, disabled, or open.
2. Supervisory switch alarm devices have a normal service
life of 10-15 years.
System Sensor warrants its enclosed supervisory switch to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this supervisory switch. No agent, representa-
tive, dealer, or employee of the Company has the authority to increase or
alter the obligations or limitations of this Warranty. The Company's obli-
gation of this Warranty shall be limited to the repair or replacement of any
part of the supervisory switch which is found to be defective in materials
or workmanship under normal use and service during the three year pe-
riod commencing with the date of manufacture. After phoning System
Sensor's toll free number 800-SENSOR2 (736-7672) for a Return Authori-
zation number, send defective units postage prepaid to: System Sensor,
N770-04-00
Technical Manuals Online! - http://www.tech-man.com
Top View
A B B A
Strip Gauge
Sup. Switch
B B
COM
Typical FACP Connection
B
Typical Local Bell Connection
The Limitations of Supervisory Switch Alarm Devices
Switch 2
Sup. Switch
B B
COM COM
local
bell
COM
WARNING
3. Supervisory switches are not a substitute for insurance.
Building owners should always insure property and lives
being protected.
Three-Year Limited Warranty
Repair Department, RA #__________, 3825 Ohio Avenue, St. Charles, IL
60174. Please include a note describing the malfunction and suspected
cause of failure. The Company shall not be obligated to repair or replace
units which are found to be defective because of damage, unreasonable
use, modifications, or alterations occurring after the date of manufacture.
In no case shall the Company be liable for any consequential or incidental
damages for breach of this or any other Warranty, expressed or implied
whatsoever, even if the loss or damage is caused by the Company's negli-
gence or fault. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages, so the above limitation or exclusion may
not apply to you. This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
4
CONTACT RATINGS
125/250 VAC 10 AMPS
24 VDC 2.5 AMPS
end-of-line resistor
COM
Break wire as shown for supervision
of connection. DO NOT allow stripped
wire leads to extend beyond switch
housing. DO NOT loop wires.
A78-1639-00
I56-393-06
© System Sensor 1999
