D8128D
Installation
3.4

Wiring OctoPOPIT Sensor Loops

Only the resistance on the loop limits the number of normally-open and/or normally-closed detection devices
each sensor loop can supervise. Resistance on each sensor loop must be less than 100 ohms with the detection
devices connected.
Certain UL and NFPA applications may limit the number of detection devices. Consult the appropriate UL or
NFPA standards.
The OctoPOPIT detects open, short, closed, normal, and grounded circuit conditions on its sensor loops and
transmits the conditions to the panel. A ground on the positive leg of the sensor loop transmits a shorted
condition for the point. Each sensor loop is assigned a point number and transmits to the panel separately.
Radionics recommends you use twisted-pair wire for the OctoPOPIT sensor loops to avoid EMI problems. Run
wires away from the premises telephone and AC wiring. If you suspect a noisy environment, use shielded cable.
There are two rows of
terminal numbers on the
OctoPOPIT. In the row
closest to the terminal blocks,
the positive outputs for the
sensor loops are labeled P1
to P8. Sensor loop outputs P1
and P2, P3 and P4, P5 and
P6, and P7 and P8 share
common terminals. The
common terminals for each
pair are labeled COM.
Terminate each OctoPOPIT
sensor loop with a 1 kΩ end-
of-line resistor. Attach a
resistor even if you don't
enable the loop. The
OctoPOPIT comes with a
D105BL resistor for each
sensor loop.
Take care not to duplicate point assignments. Points assigned to both an OctoPOPIT sensor loop and a POPIT,
two OctoPOPIT sensor loops, or two POPITs do not function properly.
3.4.1

D8128D OctoPOPIT Switch Settings for D9412 and D9112

Refer to the table at right to
set the OctoPOPIT
switches for use with the
D9412 and D9112
Control/Communicators.
Note: For the OctoPOPITs
assigned to points 121-127
and 241-247, be sure to set
Point Input Switch 8 to the
OPEN position.
* Line Termination Switch
(see section
3.1.1.2 Line Termination
Switch Settings).
41343D
COM IN OUT+12V P1 COM P2 P3 COM P4 P5 COM P6 P7 COM P8

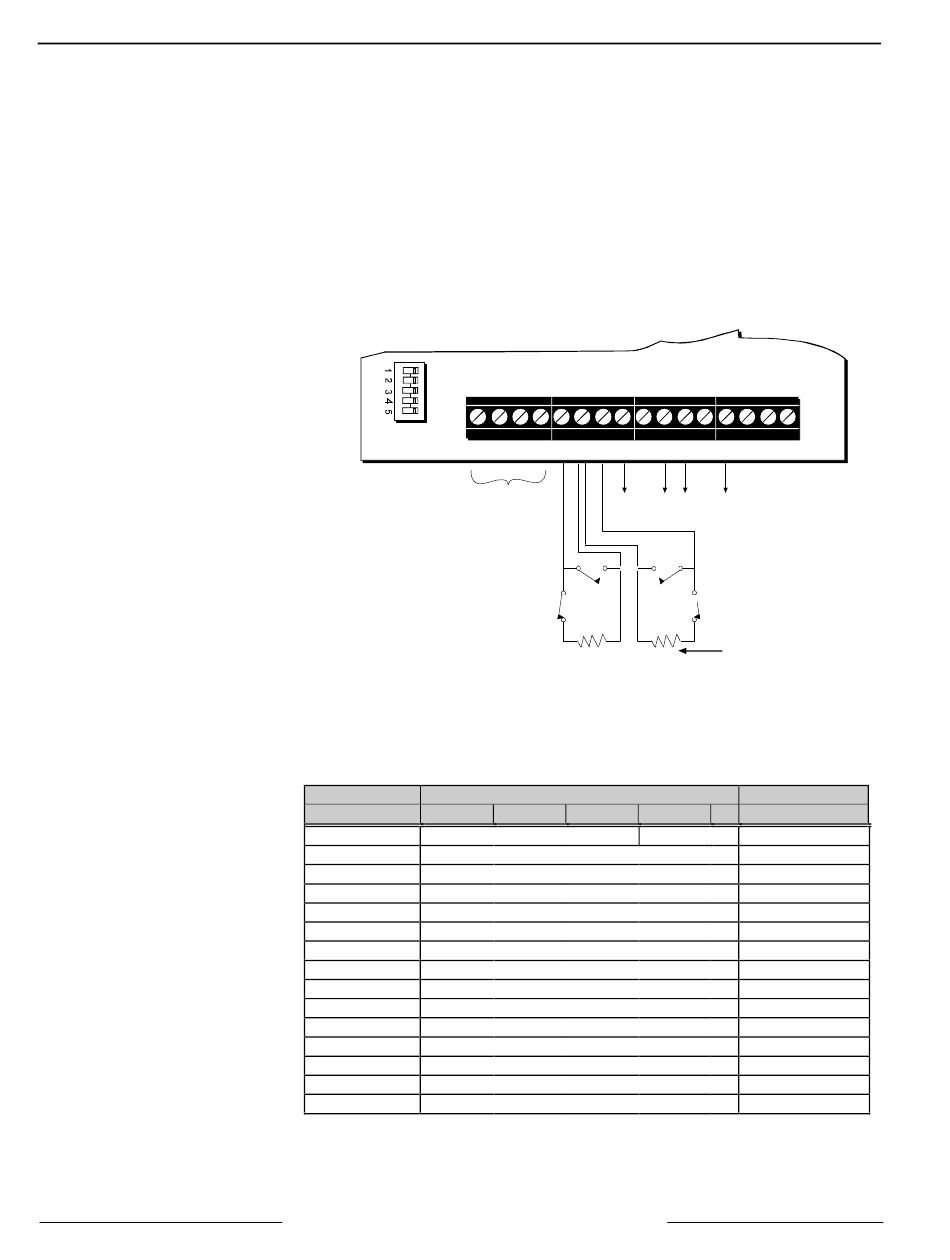

Figure 6: D8128D OctoPOPIT Sensor Loops

ZONEX 1
Points 9-127 1
9-16 ON
17-24 ON
25-32 ON
33-40 ON
41-48 ON
49-56 ON
57-64 ON
65-72 ON
73-80 OFF
81-88 OFF
89-96 OFF
97-104 OFF
105-112 OFF
113-120 OFF
121-127 OFF

Table 5: OctoPOPIT Settings - D9412 and D9112

D8128D OctoPOPIT Module Installation Instructions
Page 14
TO ADDITIONAL OCTOPOPIT
TO PANEL
SENSOR LOOPS
D8128D Address Switches
2 3
ON ON
ON ON OFF
ON OFF
ON OFF OFF
OFF ON
OFF ON OFF
OFF OFF
OFF OFF OFF
ON ON
ON ON OFF
ON OFF
ON OFF OFF
OFF ON
OFF ON OFF
OFF OFF
D8128D OctoPOPIT
OCTOPOPIT
SENSOR LOOPS
1k EOL RESISTOR
RPN D105BL
ZONEX 2
4 5 Points 129-247
ON * 129-136
* 137-144
ON * 145-152
* 153-160
ON * 161-168
* 169-176
ON * 177-184
* 185-182
ON * 193-200
* 201-208
ON * 209-216
* 217-224
ON * 225-232
* 233-240
ON * 241-247
© 2001 Radionics
