D8128D
Installation
3.2

Mounting the OctoPOPIT

You can install the D8128D OctoPOPIT Module in the enclosure with the panel, or in a separate enclosure
(model D8103, D8108A, or D8109) up to 200 feet (61 meters) from the panel using standard four-conductor 22
AWG (0.8 mm) wire. Refer to the section 1.3.1
the D125B or the D129.
If you mount the OctoPOPIT in a separate enclosure, use shielded cable to avoid electro-magnetic interference.
For UL Listed systems, mount the D8128D in a tampered-proof enclosure.
Follow the procedure below to
install OctoPOPITs in the panel's
enclosure. Use the D137 Mounting
Bracket to install OctoPOPITs in
enclosures with no module-
mounting locations available.
1. Align the OctoPOPIT module
with any of the four mounting
locations in the enclosure.
See Figure 2.
2. Use the screws provided with
the module to secure it in the
enclosure.
3.3

Wiring the OctoPOPIT

Disconnect all power to the Control Panel before beginning any work with the internal components.
Serious injury could result from electrical shock.
Power down the panel by disconnecting the positive (red) battery lead at the battery and unplugging the
transformer.
The D8128D can be up to 200 feet (61 meters) away from the Control/Communicator. There are two methods for
connecting the D8128D to a Control/Communicator. You can wire the OctoPOPIT to the control/communicator
using the terminal strip on the side of the module, or you can connect it using the Molex connectors (P1 and P2).
AC INDUCTION: Avoid installing ZONEX data wires and ZONEX input (sensor loop) wires around any AC
conduit/wiring or electrical devices that emit fields of electromagnetic interference (EMI).
41343D
Requirements for Fire Initiation Applications, when using
POINT CHART LABEL
D8128D OctoPOPIT Module Installation Instructions
Page 10
MODULE MOUNTING
LOCATIONS
MOUNTING
SKIRT HOOK
SKIRT MOUNTING HOLE

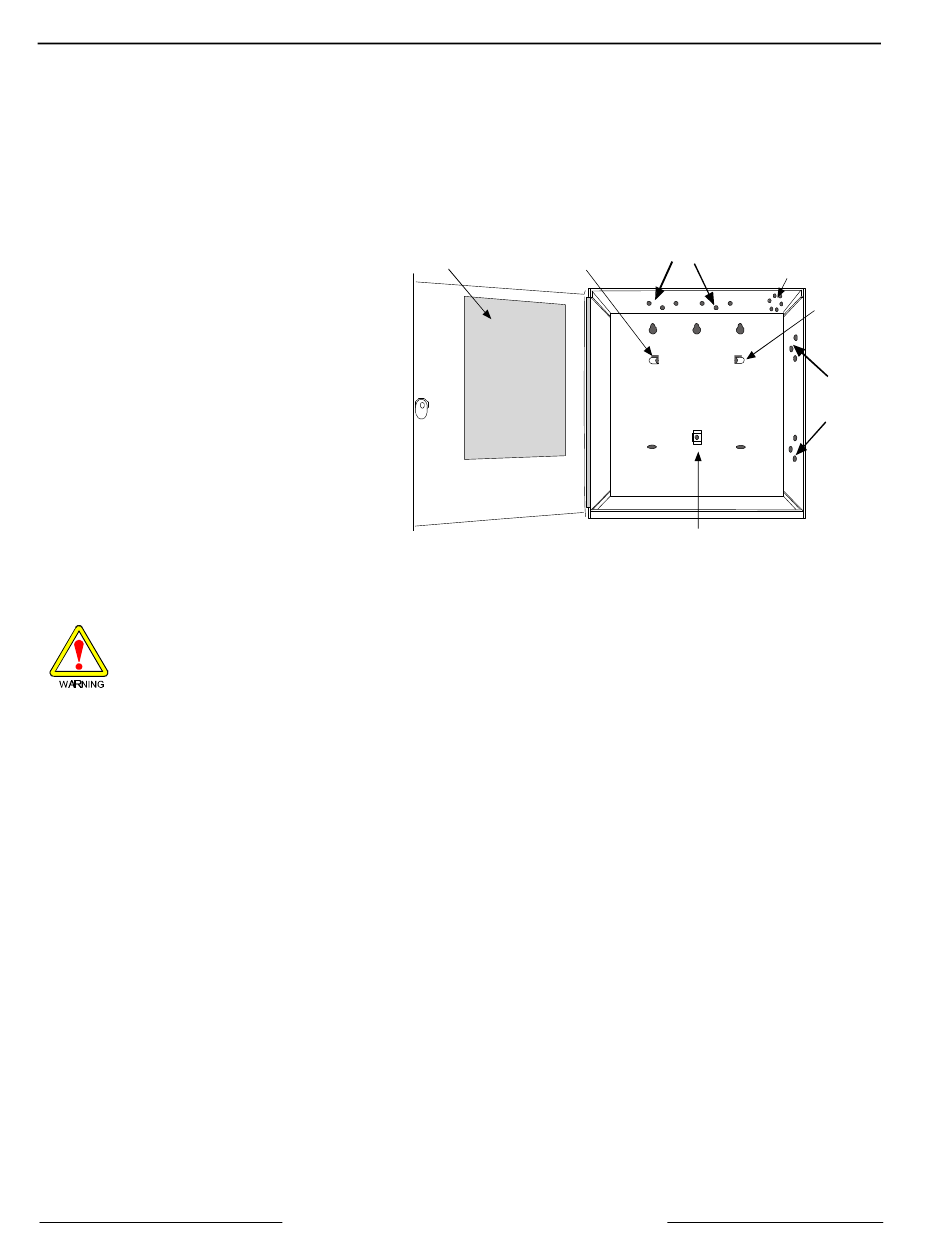

Figure 2: Mounting Enclosure

TAMPER SWITCH
MOUNTING LOCATION
MOUNTING
SKIRT HOOK
MODULE
MOUNTING
LOCATIONS
© 2001 Radionics
