STA100 Stereo Adaptor

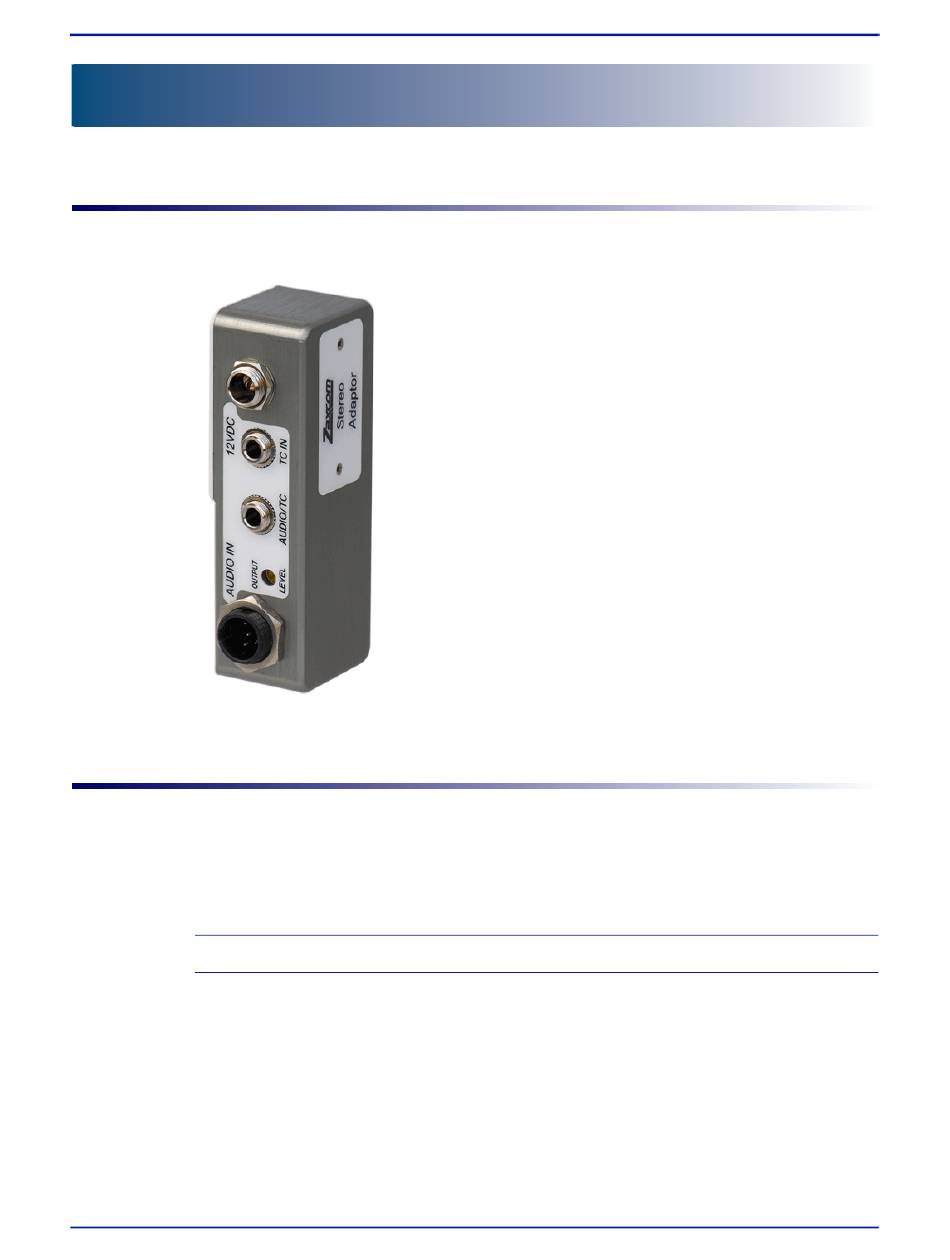

The STA100 stereo adaptor converts a TRX900 and ZFR100 recorder to stereo operation.

Installation

The STA100 attaches to either the TRX900 or ZFR100 unit with two screws located under the
"Stereo adaptor" label.
Tighten the two screws, alternating between the two, until the stereo adaptor and the transmitter/
recorder are tightly connected.
Caution:
Do not to over tighten the screws.

Setting Levels

1. Connect the TA5 male connector to a suitable line level audio source.
The line level needs to be at a level between -6dBu to +8dBu.
2. Output tone from the field mixer and adjust the two input pots so the meter on the LCD display
is at a level of -20 dB.
The stereo adaptor does not have a limiter function so it is important not to clip the input of the
stereo adaptor.
