Remove the BIOM 4 from the microscope

After completing the surgery, loosen the knurled screw and remove the BIOM 4, in-
cluding the adapter plate, from the dovetail mount.

For the BIOM 4c only:
Also disconnect the plug of the BIOM 4c-drive unit from the coupler at the SDI 4c
housing. Only pull on the corrugated sleeve of the plug (fig. 7-9, page 19). When the
plug is pushed into the socket, the plug locks into place automatically. The lock can
only be released by pulling on the corrugated sleeve.
Note
Always grip the plug of the BIOM 4c at the sleeve, in order to release the lock. Pulling on
the cable itself could damage it and the complete drive module would then have to be
exchanged.

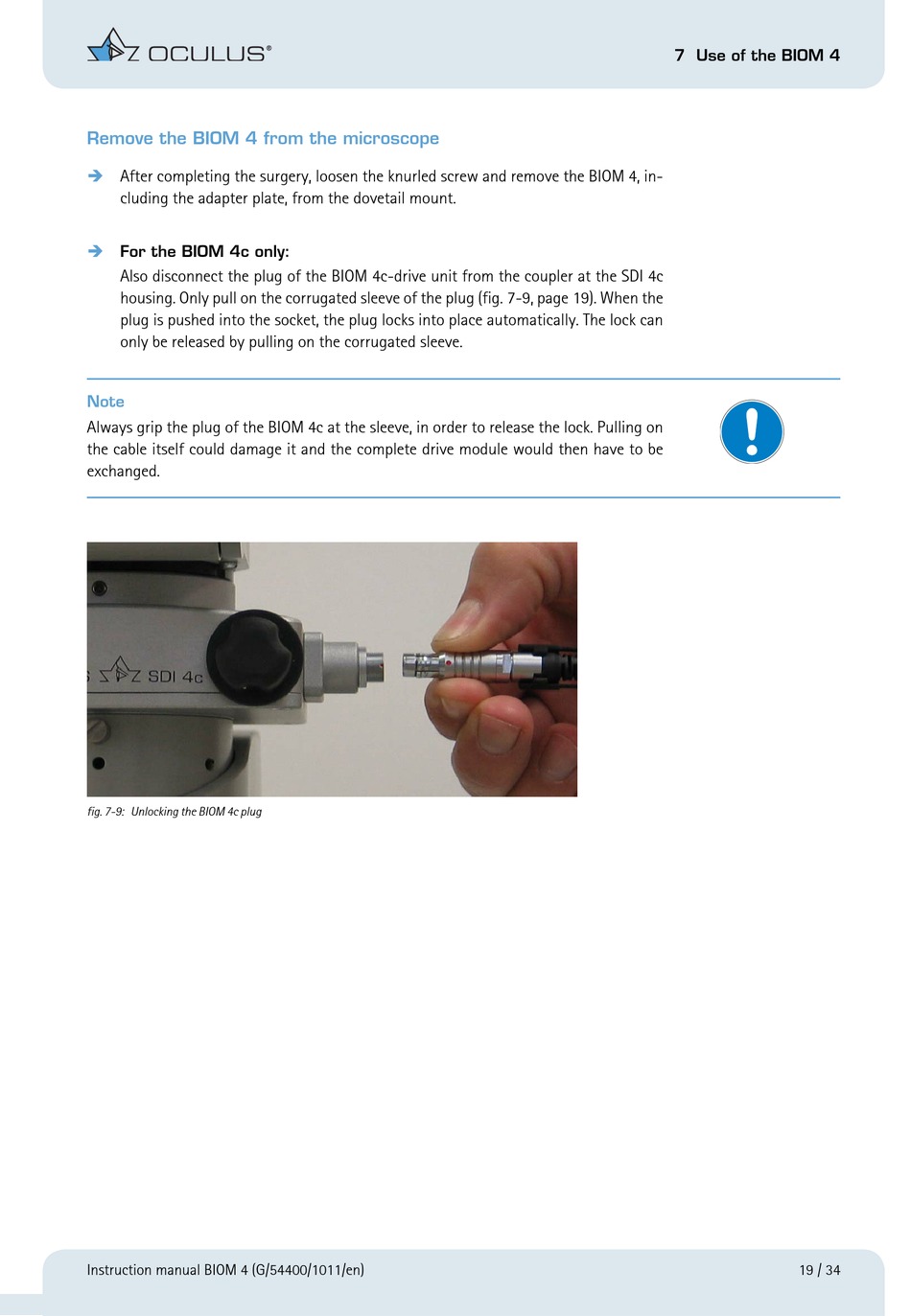

fig. 7-9: Unlocking the BIOM 4c plug
