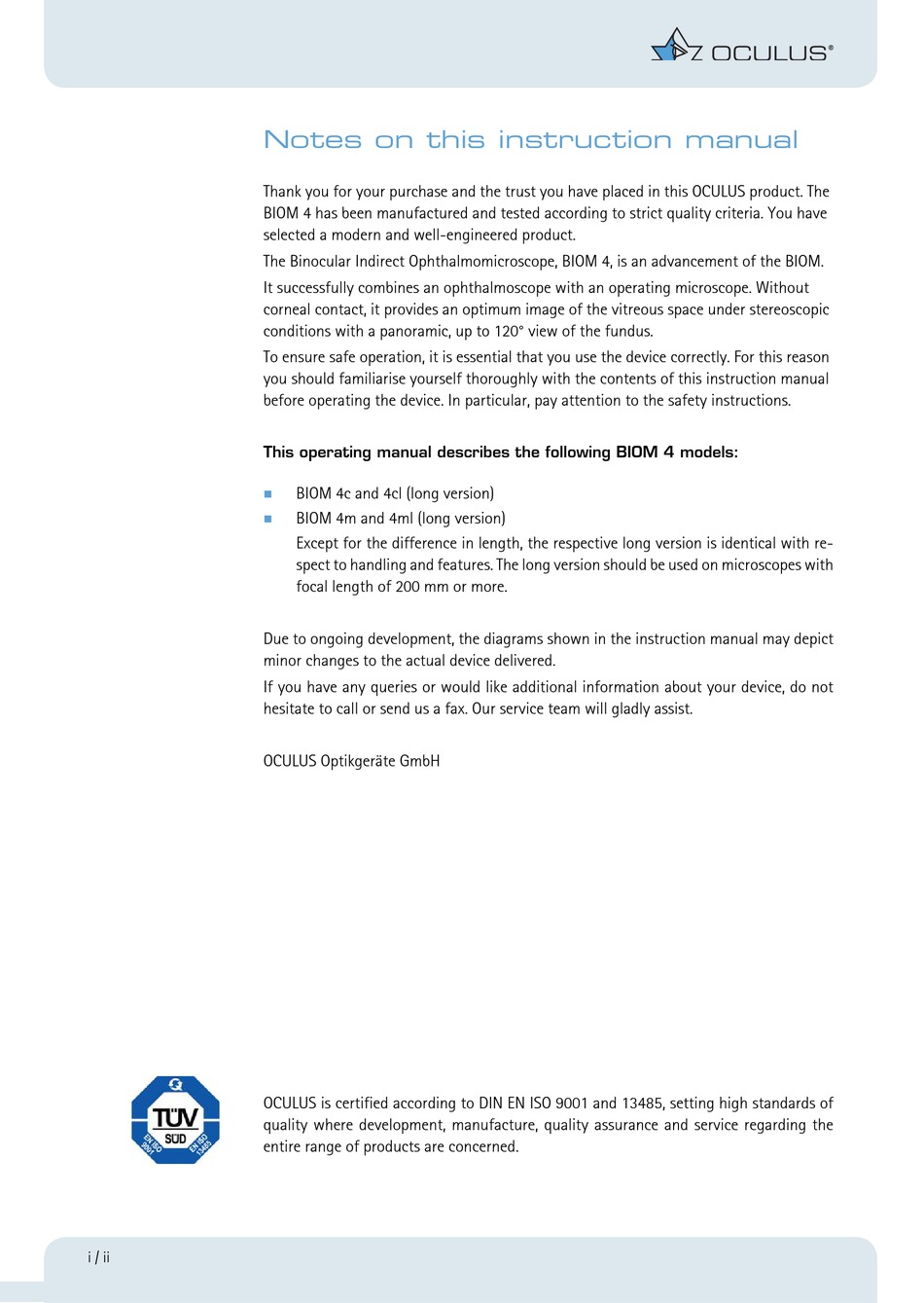

Notes on this instruction manual
Thank you for your purchase and the trust you have placed in this OCULUS product. The
BIOM 4 has been manufactured and tested according to strict quality criteria. You have
selected a modern and well-engineered product.
The Binocular Indirect Ophthalmomicroscope, BIOM 4, is an advancement of the BIOM.
It successfully combines an ophthalmoscope with an operating microscope. Without
corneal contact, it provides an optimum image of the vitreous space under stereoscopic
conditions with a panoramic, up to 120° view of the fundus.
To ensure safe operation, it is essential that you use the device correctly. For this reason
you should familiarise yourself thoroughly with the contents of this instruction manual
before operating the device. In particular, pay attention to the safety instructions.
This operating manual describes the following BIOM 4 models:
BIOM 4c and 4cl (long version)

 BIOM 4m and 4ml (long version)
Except for the difference in length, the respective long version is identical with re-
spect to handling and features. The long version should be used on microscopes with
focal length of 200 mm or more.
Due to ongoing development, the diagrams shown in the instruction manual may depict
minor changes to the actual device delivered.
If you have any queries or would like additional information about your device, do not
hesitate to call or send us a fax. Our service team will gladly assist.
OCULUS Optikgeräte GmbH
OCULUS is certified according to DIN EN ISO 9001 and 13485, setting high standards of
quality where development, manufacture, quality assurance and service regarding the
entire range of products are concerned.
