7.3.1 Under sterile conditions:
Perform a safety function test

Make sure that all components are present and are sterile.

Flip the BIOM against the adapter plate. It is equipped with a swivel mechanism for
90° and a detent for this purpose.

Make sure that the housing body can be shifted without resistance.

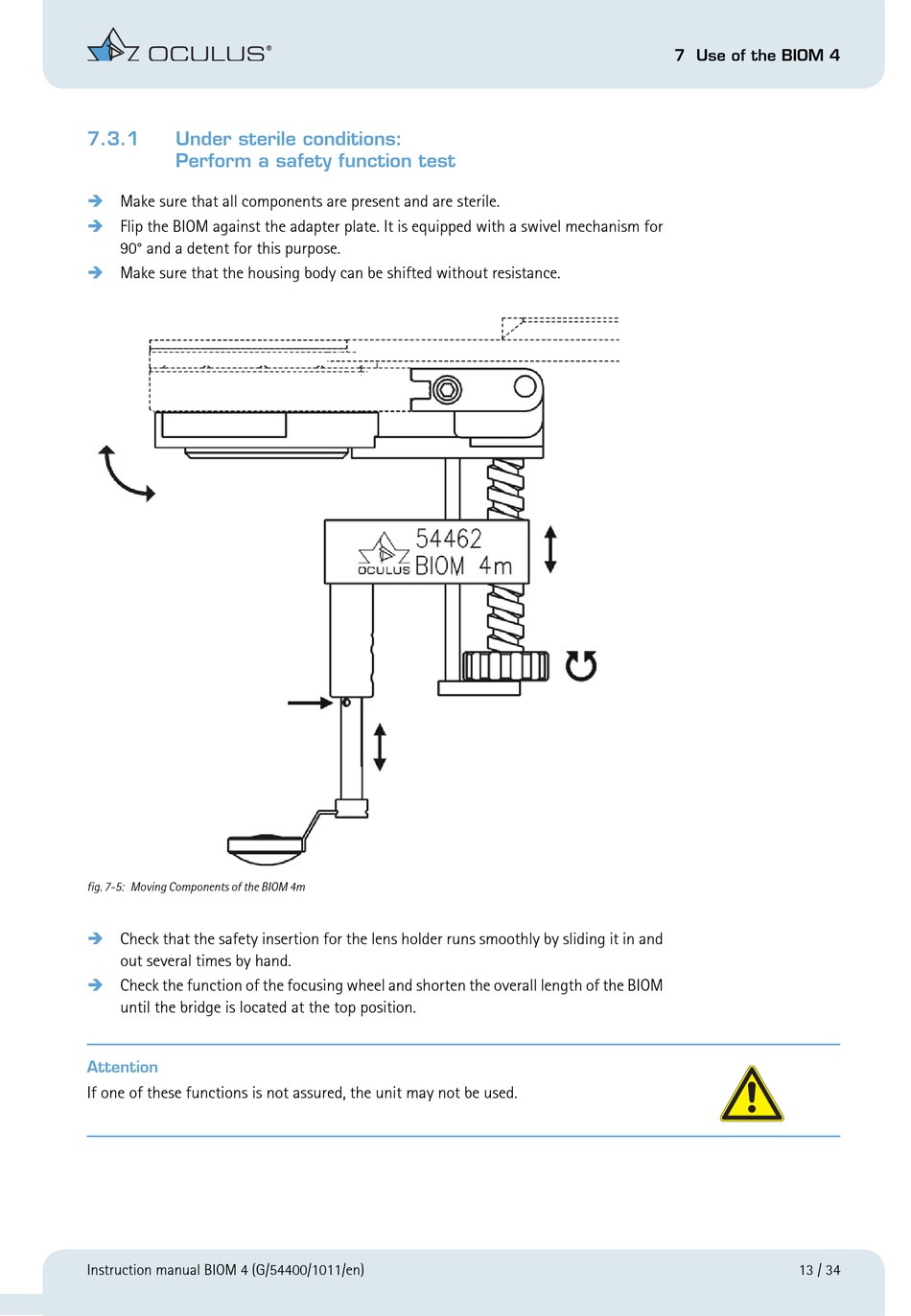

fig. 7-5: Moving Components of the BIOM 4m

Check that the safety insertion for the lens holder runs smoothly by sliding it in and
out several times by hand.

Check the function of the focusing wheel and shorten the overall length of the BIOM
until the bridge is located at the top position.
Attention
If one of these functions is not assured, the unit may not be used.
