Summary of Contents for URC HCM-R1
- Page 1 Order Number : GETEC-C1-14-411 FCC Part 15 subpart C 1 / 1 Test Report Number : GETEC-E3-14-075 Page APPENDIX H : USER’S MANUAL EUT Type: Remote Control FCC ID.: OZ5URCHCMR1...

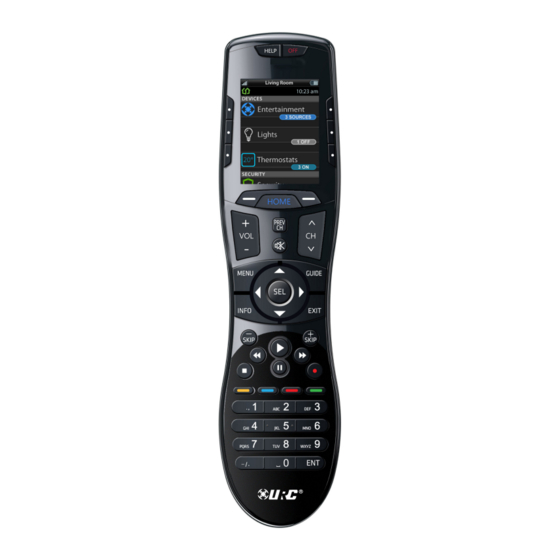

- Page 2 HCM-R1 Remote Control Owner’s Manual...
- Page 3 EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual is subject to change without prior notice. HCM-R1 Owner's Manual © 2014 Universal Remote Control, Inc. URC - Control the Experience is a registered trademark of Universal Remote Control, Inc.
-
Page 4: Table Of Contents
Congratulations! Before Getting Started Parts Guide Connecting the Battery Using the Charger Two-Way via Wi-Fi Using the HCM-R1 Settings Screen Network Settings Base Station Setup iControl Account Info Sleep Timers Brightness System Button Light Power Sound Pickup Firmware Update Factory Default... -
Page 5: Congratulations
Congratulations! Thank you for purchasing the HCM-R1 Wi-Fi remote control for your home automation system. This remote offers two-way control of your connected devices throughout the home or small office space. Controlling and monitoring your home’s devices is simple using the HCM- R1’s Wi-Fi communication. -
Page 6: Before Getting Started
Download and save the setup file on the URC µCloud. All that is needed is basic knowledge of your devices, and the settings of your local area network. Parts Guide What’s included in the HCM-R1 box:... -
Page 7: Connecting The Battery
Using the Charger Plug the charger into a power outlet and to the bottom of the HCM-R1 Remote Control. There is no harm in leaving the HCM-R1 Remote Control on its charger when it is not in use. Two-Way via Wi-Fi... -
Page 8: Settings Screen
LCD screen, or the Select button. Press the Home button to return to a previous step or exit the Settings menu. The expanded view of the HCM-R1 Settings Menu, displays all available Setup Menu options. Page 4... -
Page 9: Network Settings
Network Settings The screen displays network information about your HCM-R1 Remote Control and the wireless network it is connected to. Within this screen, you can scan for a Wi-Fi Network, select a network to connect to, and enter any required custom network settings. -
Page 10: Icontrol Account Info
The HCM-R1 Remote Control provides a two-way interface to these devices, over the local wireless Ethernet network. Contact your subscription television service to acquire iControl® home lighting, comfort and security products to use with your HCM-R1 Remote Control. Page 6... -
Page 11: Sleep Timers
Sleep Timers Adjust the amount of time the LCD remains ON when the remote is not in use. The time can be set independently based on whether the remote is using battery power or connected to the charger. Select LCD on Battery Power or LCD on Charger to setup their Sleep Timer value. -
Page 12: Brightness
Brightness Select Brightness to view and configure the LCD screen’s brightness level. Adjust the screen brightness by pressing the adjacent hard buttons to increase or decrease the brightness level. Press the Save button when you have finished adjusting the level. Pressing the Go Back button will revert to the remotes last saved setting. -
Page 13: System
System The System Information screen displays data about your HCM-R1’s Operating System, Memory, among other information. Press the More button to view further system information. Pressing the Go Back button will exit to the remote’s settings menu. Page 9... -
Page 14: Button Light
Button Light Adjust the remote’s button backlight by pressing the adjacent hard buttons to increase or decrease the light level. Press the Ok button when you have finished adjusting the level. Pressing the Go Back button will revert to the remote’s last saved setting. -
Page 15: Power
Power View the remote’s remaining battery power percentage level and indicate how low the percentage should be before you receive a Low Battery warning screen. Press the Save button when you have finished adjusting the power level. Pressing the Go Back button will revert to the remote’s last saved setting. -
Page 16: Sound
Pressing the Go Back button will revert to the remotes last saved setting. Pickup You can set the HCM-R1 to turn ON when it is picked up. Simply select Yes (Turn ON) or No (Turn OFF). The System Menu is displayed after the pickup is adjusted. -
Page 17: Firmware Update
Firmware Update Select Firmware Update to check for the latest firmware version available for the HCM-R1 remote control and HCM-C1 base station (if necessary). The screen, shown below, appears when a firmware update is available: Select Yes to begin the firmware update process. -
Page 18: Factory Default
Factory Default WARNING! Selecting this button resets the memory of the HCM-R1 to the factory settings. All your programming will be lost! Selecting Yes shall set the HCM-R1 to factory default. Selecting No shall return the HCM-R1 to the Setup Menu screen. -
Page 19: Remote Control Id
Remote Control ID If this is the first time the HCM-R1 Remote Control is being used, out of the box, an Initial Launching process will be shown. The process will guide you to acquiring a Remote Control ID, and a URC Programming Key. When using the... -
Page 20: Specifications
Specifications Microprocessor: ARM9 454MHz RAM: 64Mbyte Mobile DDR NAND: 128Mbyte LCD: 2 Inch Screen (240 by 320) LCD Backlighting by LED Devices: Supports up to 255 Devices with text, less with heavy graphics Usage Pages: Supports up to 255 Pages on each Device with text, less with heavy graphics usage Macro Capability: Up to 255 steps each,... -
Page 21: Limited Warranty Statement
United States of America. URC warrants that the software will substantially conform in any material respect to its functional specifications at the time of delivery. URC SHALL NOT BE LIABLE FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS AND/OR OMISSIONS MADE IN THE URC DOCUMENTATION. URC... - Page 22 In the event of any warranty claim, URC will, at its sole option, repair the URC equipment using new or comparable rebuilt parts, or exchange the URC equipment for new or rebuilt equipment.
- Page 23 URC will not be responsible for any such damage or loss. A dated purchase receipt, bill of sale, installation contract or other verifiable proof of purchase is required. For the URC equipment support and other important information, please visit URC's website available at www.universalremote.com or call...
-
Page 24: End User Agreement
IN NO EVENT SHALL URC BE LIABLE FOR ANY EVENTS BEYOND ITS CONTROL, INCLUDING ANY INSTANCE OF FORCE MAJEURE. IN NO EVENT SHALL URC BE LIABLE FOR THE ACTS OR OMISSIONS OF END USER OR ANY THIRD PARTY. THE LIMITATIONS OF LIABILITY MAY NOT... -
Page 25: Precautions And Information Concerning Rechargeable Lithium Polymer Batteries
Precautions and Information Concerning Rechargeable Lithium Polymer Batteries -If you will not be using your remote control for an extended period of time, be sure to remove the battery. -Do not attempt to disassemble, alter or apply heat to the battery. -Use care to avoid dropping the battery or subjecting it to severe impact that could damage the case. -
Page 26: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement Warning! Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. Note: The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. - Page 27 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com...
