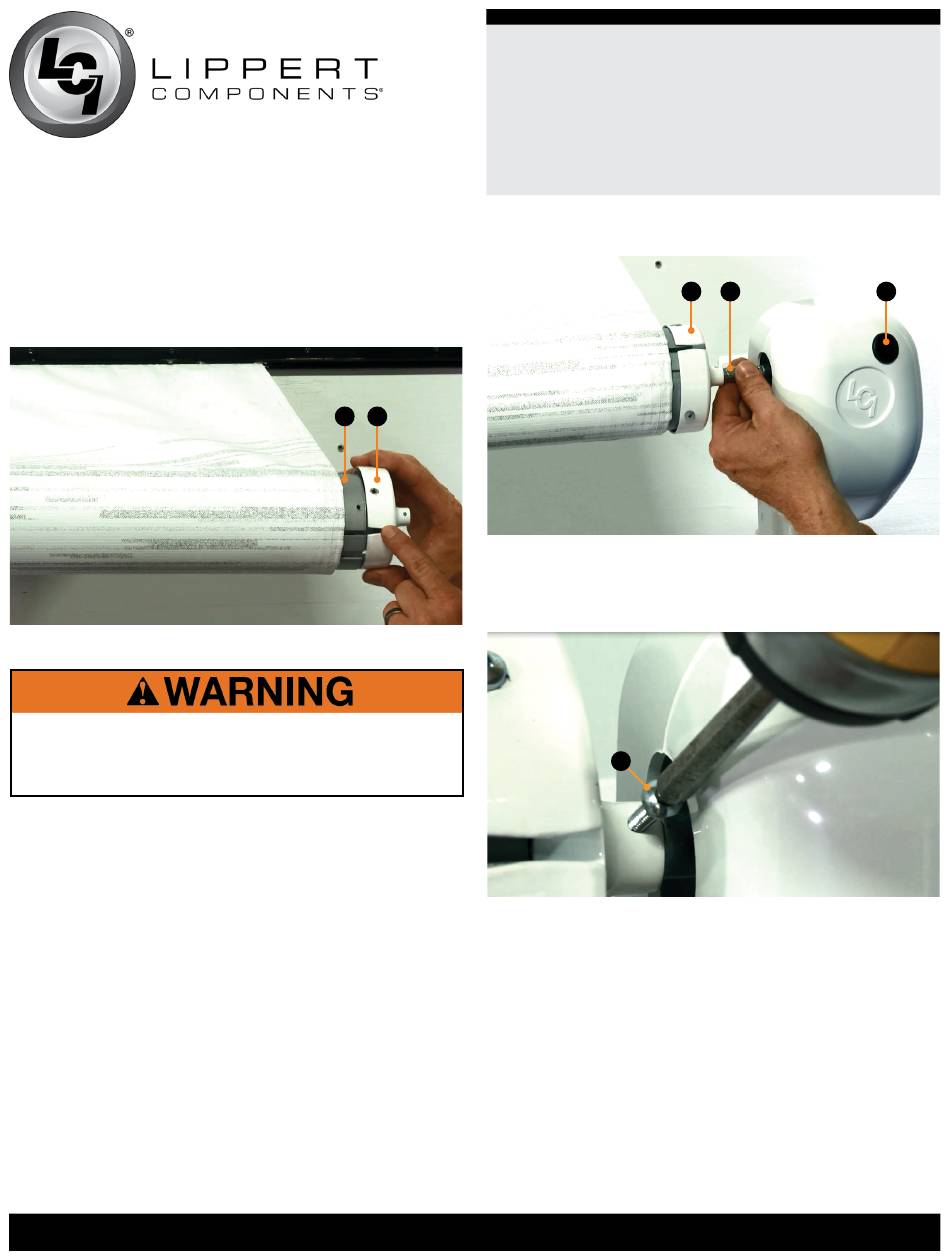

12. Place the Solera end cap (Fig.10B) on the end of the
roll tube (Fig.10A), making sure it is properly seated and
the roll tube channel is aligned with the channel on the
end cap.
Fig.10
FAILURE MAINTAIN CONTROL OF THE ROLL TUBE
AND HEAD MAY RESULT IN DEATH, SERIOUS
INJURY, DAMAGE TO THE UNIT AND/OR VOIDING A
WARRANTY.
13. Secure the Solera end cap to the roll tube with the
provided rivets.
NOTE: It may be necessary to drill out the previous holes
in order to accommodate the larger-sized rivets.
14. Pull the cotter pin from the idler side end cap, making
sure to keep a firm hold on the roll tube to avoid injury or
damage to the unit. (Pulling the cotter pin allows the roll
tube to turn for installation of the drive head).
15. Insert the Solera drive head assembly shaft (Fig.11B)
into the end cap (Fig.11A).
NOTE: When identifying the drive head assembly from the
idler head assembly, the drive head assembly will have an
override plug (Fig.11C). The idler head assembly will not.
lci1.com 574-537-8900
Solera
Manual Awning to
Solera 18V Power Awning
(For Aftermarket Applications)
A B
Fig.11
16. Align the holes in the shaft and end cap and secure
with the provided #8 - 32 x
Fig.12
NOTE: Keep the head of the wax screw
to avoid compromising the structural integrity of the wax screw.
17. Place the drive support arm assembly directly under
the awning rail so the top of the mount arm is touching the
bottom of the rail.
18. Slide the drive support arm assembly outward to align
below the holes of the awning previously removed before
securing the upper bracket.
7
Universal Hardware
®
A B
1/2
" wax screw (Fig.12A).
A
CCD-0001267
C
1/8
" from fastened
Rev: 03.21.19
