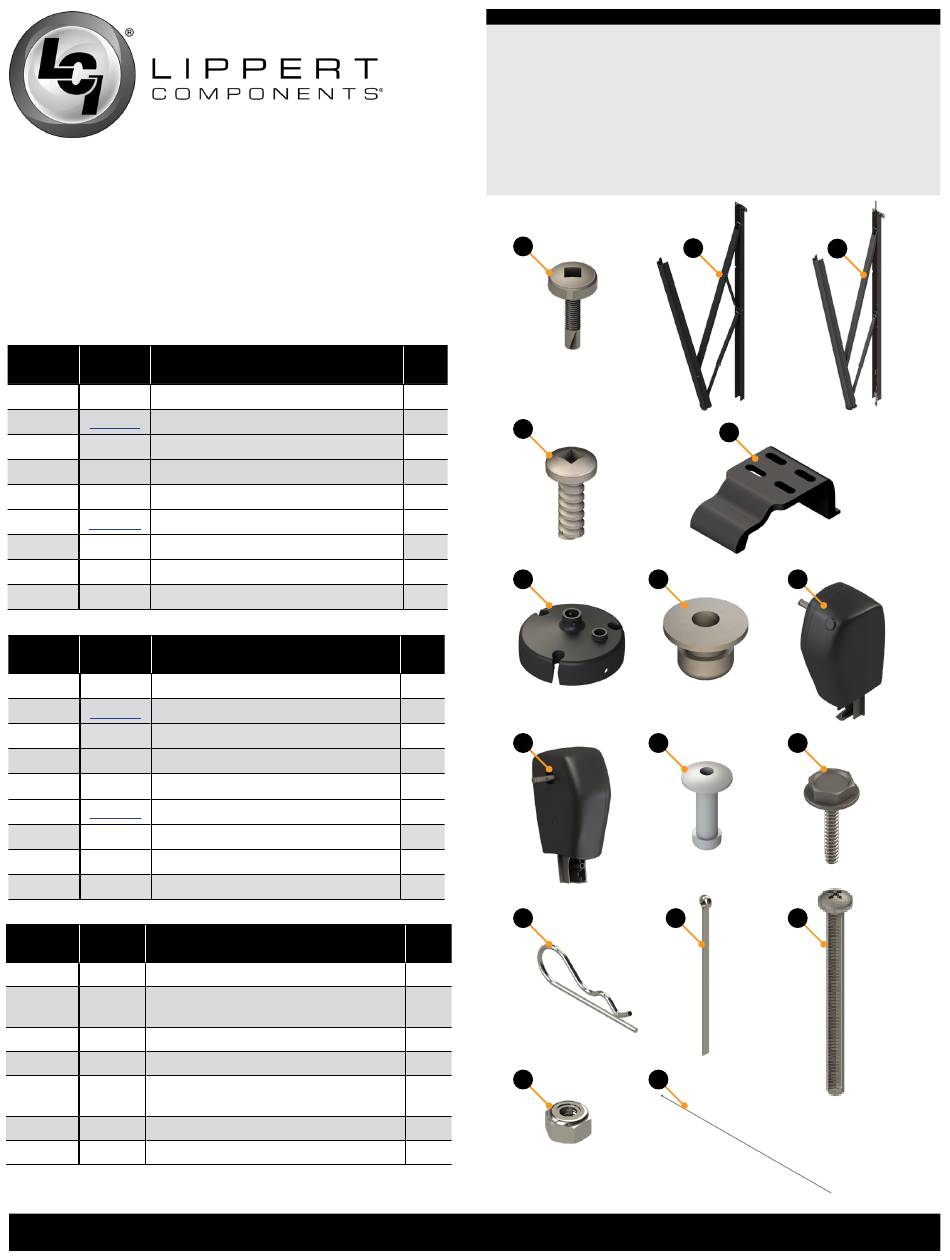

Parts List

NOTE: Part numbers are shown for identification purposes
only. Not all parts are available for individual sale. All parts
with a link to the Lippert Store can be purchased.
Solera Power 18V 69" Kit
Callout PN
434729 Black
A 276611
Screw, #8-18 x 1/2" Pan Head
B 281154
Support Arm Assembly
C 656484
Support Arm Assembly - Battery Pack
D 360575
Screw, #8 - 32 x 1/2" Pan Head
E 384965
Bracket, Upper Solera Power 2.500"
F 423751 End Cap
G 346891 Rivet, 3/16" x .450"
H 672050 Drive Head Assembly Regal Awning
I 672052 Idler Head Assembly Regal Awning
Solera Power 18V 69" Kit
Callout PN
434730 White
A 675906 Screw, #8 - 18 x 1/2" Pan Head
B 281152 Support Arm Assembly
C 656483 Support Arm Assembly - Battery Pack
D 299630 Screw, #8 - 32 x 1/2"Pan Head
E 384964 Bracket, Upper Solera Power 2.500"
F 423750
End Cap
G 346890
Rivet, 3/16" x .450"
H 672049
Drive Head Assembly Regal Awning
I 672051
Idler Head Assembly Regal Awning
Solera Power 18V 69" Kit
Callout PN
Common Parts
J 237315 Rivet, 3/16" x 1.3"
281079 Screw, #6-20 x 1/2" Self-Drilling
K
Hex Washer
L 298760 Hairpin Cotter Pin, 0.093" x 2-5/16"
M 347119 Cotter Pin, 1/8" x 3"
384905 Screw, #10 - 32 x 2 1/2" Stainless Steel
N
Pan Head
O 384906 Nylon Locking Nut, #10 - 32
P 438247 Cable Tie, Standard, NYL - 30
lci1.com 574-537-8900
Solera
Manual Awning to
Solera 18V Power Awning
(For Aftermarket Applications)
A
Qty
6
1
D
1
2
2
2
1
1
F
1
Qty
6
1
1
I
2
2
2
1
1
1
L
Qty
8
2
4
2
O
2
2
2
3
Universal Hardware
®
B
E
G
J
M
P
CCD-0001267
C
H
K
N
Rev: 03.21.19
