3.
Remove the three screws from the back of the monitor that connect the monitor panel to the
pedestal base (1) and slide the pedestal base from the monitor panel (2).

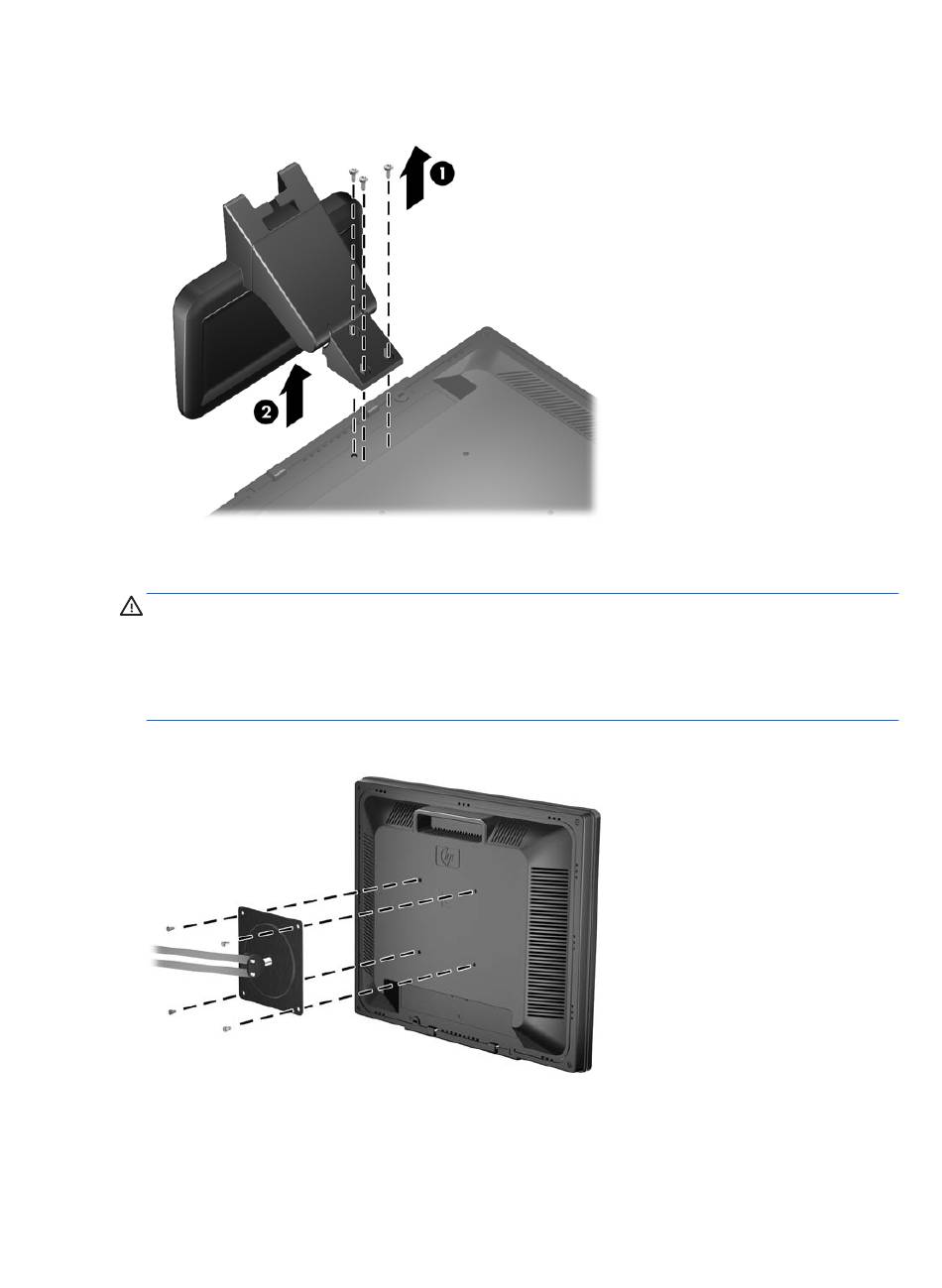

Figure 2-7
4.
To attach the monitor to a swing arm (sold separately), insert four 10mm screws through the
holes on the swing arm plate and into the mounting holes on the monitor.
CAUTION:
attach a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long
screws are required. Longer screws must not be used because they may damage the monitor. It
is important to verify that the manufacturer's mounting solution is compliant with the VESA
standard and is rated to support the weight of the monitor display panel. For best performance, it
is important to use the power and video cables provided with the monitor.
Figure 2-8
To attach the monitor to other mounting fixtures, follow the instructions included with the
mounting fixture to ensure that the monitor is safely attached.
5.
Reconnect the cables to the monitor panel.
8
Chapter 2 Setting Up the Monitor
Removing the Pedestal Base
This monitor supports the VESA industry standard 100 mm mounting holes. To
Installing the Monitor on a Swing Arm (sold separately)
