Safety Instructions & Operator's Manual for
TRANSAXLE DRIVE
WALK-BEHIND MOWER

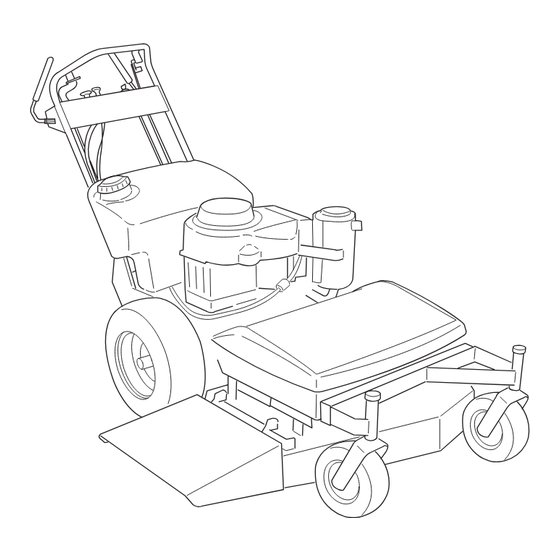

MOWER UNIT MODEL
SFH13320KW
Thank you for buying a SNAPPER Product! Before operating your WALK BEHIND, read this manual carefully
and pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on pages 1 - 3. Remember that all
power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use
in accordance with the operating instructions and common sense!
McDonough, GA 30253 USA
5023224
Rev. No. 00
Rev. Date: 08/2003
© Copyright 2003 Snapper Inc. All Rights Reserved.
TP 100-7133-00-HC-N
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Snapper SFH13320KW
Summary of Contents for Snapper SFH13320KW
- Page 1 MOWER UNIT MODEL SFH13320KW Thank you for buying a SNAPPER Product! Before operating your WALK BEHIND, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on pages 1 - 3. Remember that all power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use...
-
Page 2: Important Safety Instructions
If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-935-2967). -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PREPARATION (Continued From Previous Page) 11. Protect yourself when mowing and wear appropriate clothing including safety glasses, long pants, ear protection, hardhat and substantial footwear with good traction. Long hair, loose clothing or jewelry may get tangled in moving parts. 12. - Page 4 15. Have machine serviced SNAPPER dealer at least once a year and have the dealer install any new safety devices. DO NOT allow untrained personnel to service the machine. 16. Use only genuine SNAPPER replacement parts to assure that original standards are maintained.
-
Page 5: Table Of Contents
Important Safety Instructions ...1-3 Table of Contents ...5 Features & Controls ...6 Control Functions...6 Safety Interlock System ...7 Safety Decals ...8 Operating the Walk Behind Mower ...9 General ...9 Checks Before Starting ...9 Starting the Engine ...9 Driving the Mower ...9 Operating On A Slope...10 Stopping the Mower ...10 Mowing...10... -
Page 6: Features & Controls
Features & Controls Please take a moment and familiarize your- self with the name, location, and function of these controls so that you will better under- stand the safety and operating instructions provided in this manual. Figure 1. Control Locations Motion Control Levers Engine Ignition Switch C. -
Page 7: Safety Interlock System
E. PTO Engagement Switch The PTO Engagement Switch engages and disengages the mower blades. To engage the mower blades, pull up on the switch. To disengage the mower blades, push down on the switch. When the PTO engagement lever or switch is in the Engaged position, the Engine Kill system is activated. -
Page 8: Safety Decals
Features & Controls SAFETY DECALS This unit has been designed and manufactured to pro- vide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effec- tively, we have placed several safety labels on the unit to... -
Page 9: Operating The Walk Behind Mower
GENERAL OPERATING SAFETY Before first time operation: • Be sure to read all information in the Safety and Operation sections before attempting to operate this machine. • Become familiar with all of the controls and how to stop the unit. •... -
Page 10: Operating On A Slope
Operating the Walk Behind Mower OPERATING ON A SLOPE While it is not recommended, traveling up and down slopes may be required from time to time. These guide lines are listed for your safety. Traveling Up a Slope Since the hill climbing ability of the machine will probably far exceed any other machine you may have operated, caution should be observed. -
Page 11: Storage
STORAGE Temporary Storage (30 Days Or Less) Remember, the fuel tank will still contain some gasoline, so never store the unit indoors or in any other area where fuel vapor could travel to any ignition source. Fuel vapor is also toxic if inhaled, so never store the unit in any structure used for human or animal habitation. -
Page 12: Regular Maintenance
Regular Maintenance MAINTENANCE SCHEDULE & PROCEDURES The following schedule should be followed for normal care of your rider and mower. You will need to keep a record of your operating time. Determining operating time is easily accomplished by multiplying the time it takes to do one job by the number of times you’ve done the job, or you can install an hour meter. -
Page 13: Checking/Adding Fuel
CHECKING / ADDING FUEL To add fuel: • Remove the fuel cap. • Fill the tank. Do not overfill. Leave approximately 1” of room in the tank for fuel expansion. Refer to your engine manual for specific fuel recommendations. Install and hand tighten the fuel cap. •... -
Page 14: Lubrication
Regular Maintenance LUBRICATION Lubricate the unit at the following lubrication points. Grease: • front caster wheel axles • front caster wheel pivots • ground speed control shaft pivot Use grease fittings when present. Disassemble parts to apply grease to moving parts when grease fittings are not installed. -
Page 15: Servicing The Mower Blades
SERVICING THE MOWER BLADES • Blades should be sharp and free of nicks and dents. If not, sharpen blades as described in following steps. • To remove blade for sharpening, use a 1” wrench on the flats of the spindle shaft while removing the blade mounting bolt with a 15/16”... -
Page 16: Troubleshooting Adjustments & Service
Troubleshooting Adjustments & Service TROUBLESHOOTING While normal care and regular maintenance will extend the life of your equipment, prolonged or constant use may eventually require that service be performed to allow it to continue operating properly. The troubleshooting guide below lists the most common problems, their causes and remedies. -
Page 17: Troubleshooting The Mower Deck
TROUBLESHOOTING THE MOWER DECK PROBLEM Mower drive belt slips or fails to drive. Mower cut is uneven. Mower cut is rough looking. Engine stalls easily with mower engaged. Excessive mower vibration. Excessive belt wear or breakage. Troubleshooting, Adjustment & Service CAUSE 1. -
Page 18: Cutting Height Adjustment
Troubleshooting, Adjustment & Service CUTTING HEIGHT ADJUSTMENT The cutting height can be adjusted within two different ranges. The High Range covers 4-1/2” - 2-1/2” (11,4 - 6,4cm) and the Low Range covers 3-1/2” - 1-1/2” (8,9 - 3,8cm). See Figure 9 for deck height indicator. Before adjusting the cutting height, you must first deter- mine the average cutting height. -
Page 19: Deck Leveling Adjustment
DECK LEVELING ADJUSTMENT To Level the Mower Deck: 1. Park machine on a flat, level surface. 2. Raise the mower deck until it reaches the upper stop. 3A.If the mower deck is in the HIGH RANGE, place 2 x 4 blocks under the outside edges of the mower deck with the 3-1/2”... -
Page 20: Belt Removal And Replacement
Troubleshooting, Adjustment & Service BELT REMOVAL AND REPLACEMENT Mower Deck Drive Belt: 1. Park machine on a flat, level surface. 2. Remove the mower deck shield. 3. Push the idler arm towards the left-hand side of the machine to release the spring tension on the drive belt. -
Page 21: Ground Speed Control Lever Adjustment
GROUND SPEED CONTROL LEVER LOCATION ADJUSTMENT The control levers can be adjusted in two ways to pro- vide a comfortable working range when operating the machine at the average mowing speed. Adjust both the lever height and lever position at the same time to obtain the most comfortable working posi- tion Adjusting the Lever Height:... -
Page 22: Pto Clutch Adjustment
Troubleshooting, Adjustment & Service Figure 18. PTO Clutch Adjustment Adjustment Window (Qty. 3, one shown) Adjustment Nut PTO CLUTCH ADJUSTMENT Check the PTO clutch adjustment after the initial 50 hour break-in period and then after every 250 hours of opera- tion. -
Page 23: Lawn Care
GENERAL INFORMATION Proper mowing is an important part of maintaining your lawn in the best possible condition. A healthy and well maintained lawn is better able to resist drought, weeds, and other stresses. But too much maintenance is as detrimental to your lawn as neglect. Proper care for your lawn involves more than just “cutting the grass.”... -
Page 24: Lawn Care & Mowing Information
Lawn Care & Mowing Information HOW HIGH TO MOW THE GRASS Often cutting height is a matter of personal prefer- ence. Typically, you should mow the grass when it is is between three and five inches high. The proper cutting height range for a specific lawn will depend upon several factors, including the type of grass,... -
Page 25: When And How Often To Mow
WHAT MOWING PATTERNS TO USE Always start mowing on a smooth, level area. The size and type of area to be mowed will determine the best mowing pattern to use. Obstructions such as trees, fences and buildings, and conditions such as slopes and grades must also be considered. -
Page 26: Mowing Methods
Lawn Care & Mowing Information MOWING METHODS Proper Broadcast Mowing Broadcasting, or side-discharging, disperses fine clip- pings evenly over the entire lawn. Many golf courses use this method. Your mower has a deep dish deck to allow freer circulation of clippings so they are broadcast evenly over the lawn. - Page 27 TIPS On Dealing With Clippings Clippings are beneficial to your lawn. A common mis- conception about clippings is that they automatically lead to thatch—this is untrue. Short clippings produced by broadcasting and clippings produced by mulching methods actually contribute to a healthy lawn because they: COMPOSTING The best way to recycle excess clippings and leave your...
- Page 28 Lawn Care & Mowing Information SOLUTIONS FOR COMMON MOWING PROBLEMS Streaking Streaking is when thin strips of uncut grass are left behind the mower. Streaking is usually caused by operator error or poor blade maintenance. CAUSE Blades are not sharp Blades are worn down too far Engine speed is too slow Ground speed is too fast...
- Page 29 Uneven Cutting Uneven cutting is waviness or smooth troughs in the lawn surface. Uneven cutting is usually caused by mower deck damage or misadjustment. CAUSE Deck is not leveled correctly Blades are dull or worn Blades are damaged Deck is clogged with grass clippings Deck shell is damaged Mower spindle is bent or loose Blades are installed incorrectly...
- Page 30 Date of Purchase ___________________________________________________________ Retailer ___________________________________________________________________ Retailer’s Phone Number ___________________________________________________ It is very important that you register your purchase with Snapper to ensure warranty coverage. Please mail your product registration card to: Snapper at P.O. Box 777, McDonough, Georgia 30253.
- Page 31 For two (2) years from purchase date for the original purchaser's use, SNAPPER, through any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
- Page 32 Read, Understand, and Follow all warnings and instructions in this manual, the engine manual, and on the machine, engine and attachments. If you have any questions about your Snapper prod- uct, contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough, GA.
