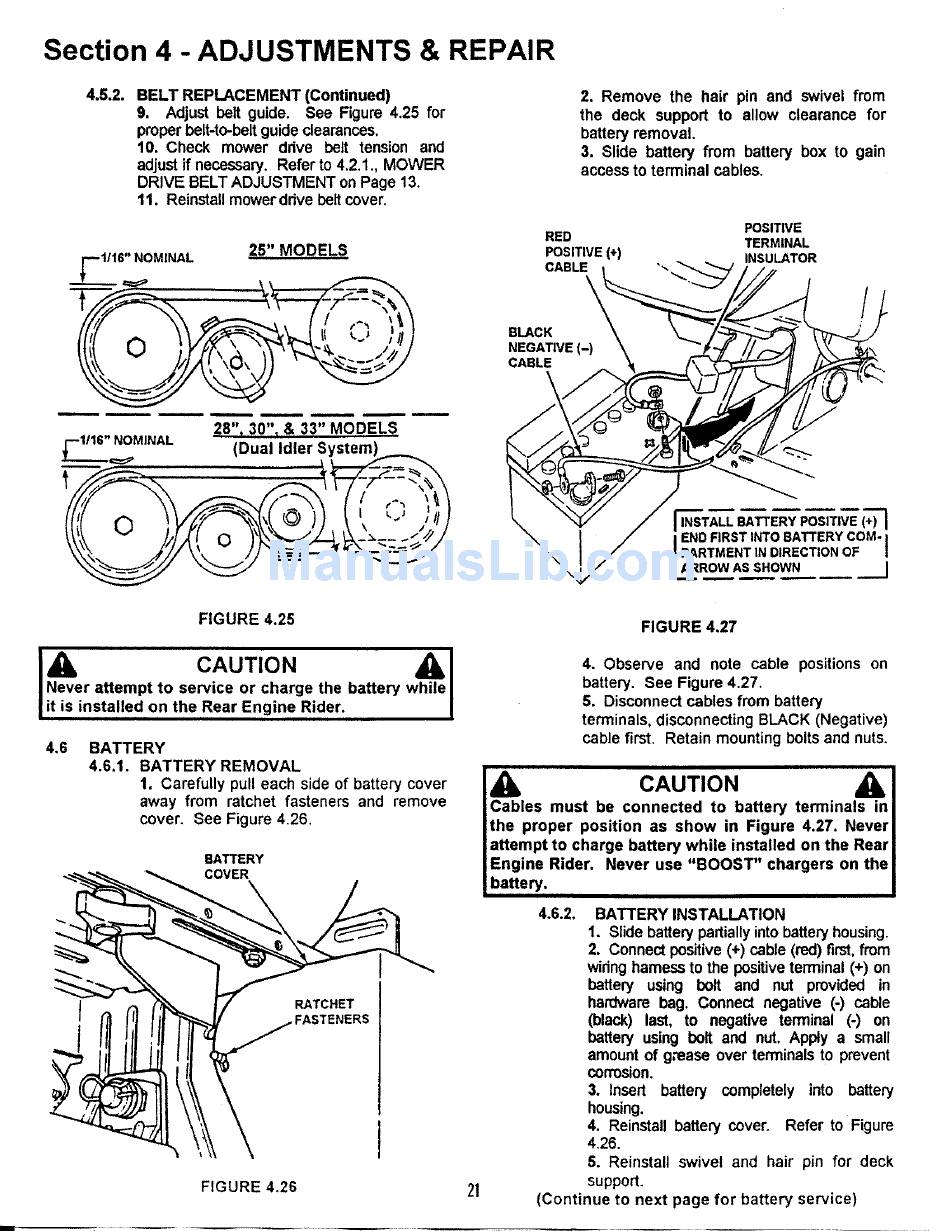

Section 4 -ADJUSTMENTS
& REPAIR
4.6.2.
BELT REPLACEMENT
(Continued)
9.
Adjust bait guide.
See Figure 4.25 for
proper bait-to-belt guide clearances.
10. Check mower
drive
belt tension
and
adjust if necessary.
Refer to 4.2.1., MOWER
DRIVE BELT ADJUSTMENT
on Page 13.
11. Reinstall mowerdrive
belt cover.
._6"
N=== O MINAL
-f
26" MODELS
28", 30"_ & 33" MODELS
1116" NOMINAL
r-"
TM
(Dual Idler System)
t
FIGURE 4.25
I&
CAUTION
&l
Never attempt
to service or charge the battery while I
it is installed on the Rear Engine Rider.
I
4.6
BATTERY
4.6.1.
BATTERY
REMOVAL
1. Carefully
pull each side of battery cover
away from ratchet
fasteners
and remove
cover. See Figure 4.26.
BATTERY
COVER
RATCHET
I
FIGURE 4.26
2. Remove the hair pin and swivel
from
the deck support to allow clearance
for
battery removal.
3. Slide battery from battery box to gain
access to terminal cables.
POSITIVE
RED
TERMINAL
POSITIVE (+)
INSULATOR
CABLE
BLACK
NEGATIVE (-)
CABLE
rlNSTALL BATTERY POSITIVE (+) ]
END FIRST INTO BATTERY COM-
PARTMENT N D RECTION OF
L ._ow As SHOWN
I
21
FIGURE 4.27
4. Observe
and note cable
positions on
battery.
See Figure 4.27,
6. Disconnect cables from battery
terminals, disconnecting
BLACK (Negative)
cable first. Retain mounting bolts and nuts,
CAUTION
Cables must be connected
to battery terminals
in
the proper
position as show in Figure 4.27. Never
attempt to charge battery while installed on the Rear
Engine Rider.
Never use "BOOST"
chargers on the
battery.
4.6.2.
BATTERY INSTALLATION
1. Slide battery partially into battery housing.
2. Connect positive (+) cable (red) first, from
wiring harness to the positive terminal (+) on
battery using bolt
and nut provided in
hardware bag. Connect negative (-) cable
(black) last, to negative terminal (-) on
battery using bolt and nut. Apply a small
amount of grease over terminals to prevent
corrosion.
3. Insert battery completely
into battery
housing.
4. Reinstall battery cover.
Refer to Figure
4.26.
5. Reinstall
swivel
and hair pin for deck
support.
(Continue
to next page for battery
service)
