Control Panel Guide - aoyue Int968 Instruction Manual

A1
A2
A3
B7
A1 Soldering Iron heater indicator LED
A2 Soldering Iron temperature knob
A3 Soldering Iron terminal
A4 Soldering Iron activation switch
A5 Smoke Absorber / Vacuum outlet
A6 Smoke Absorber function switch
B1 Hot Air Gun temperature display
B2 Hot Air Gun decrease temperature adjustment button.
B3 Hot Air Gun increase temperature adjustment button.
B4 Hot Air Gun activation switch
B5 Air pressure indicator
B6 Air pressure knob
B7 Hot Air Gun output

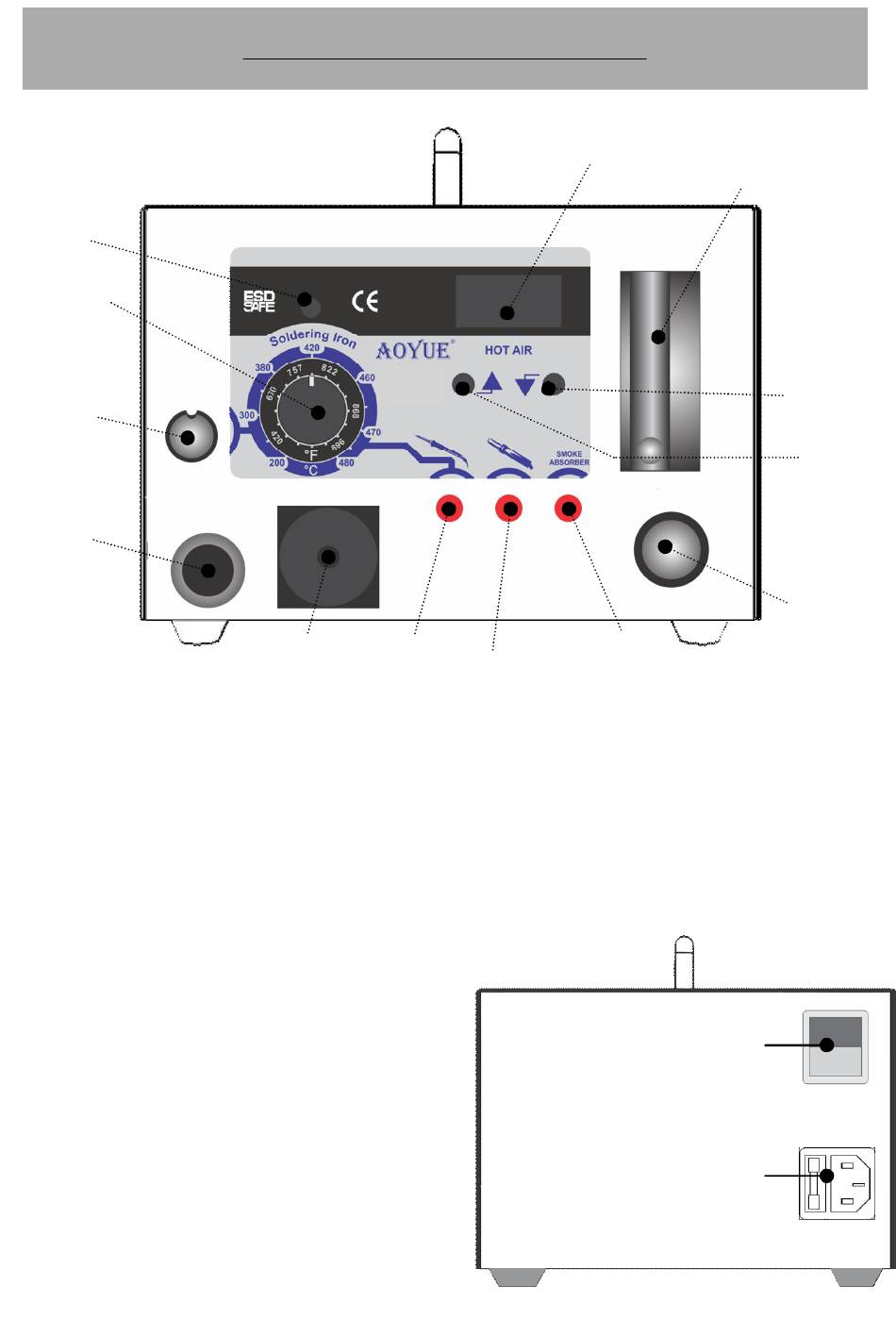

CONTROL PANEL GUIDE

A4
A5
B1
A6
B4
Main Power Switch
AC Power Inlet with
Fuse
Back Panel
B5
B2
B3
B6
7
