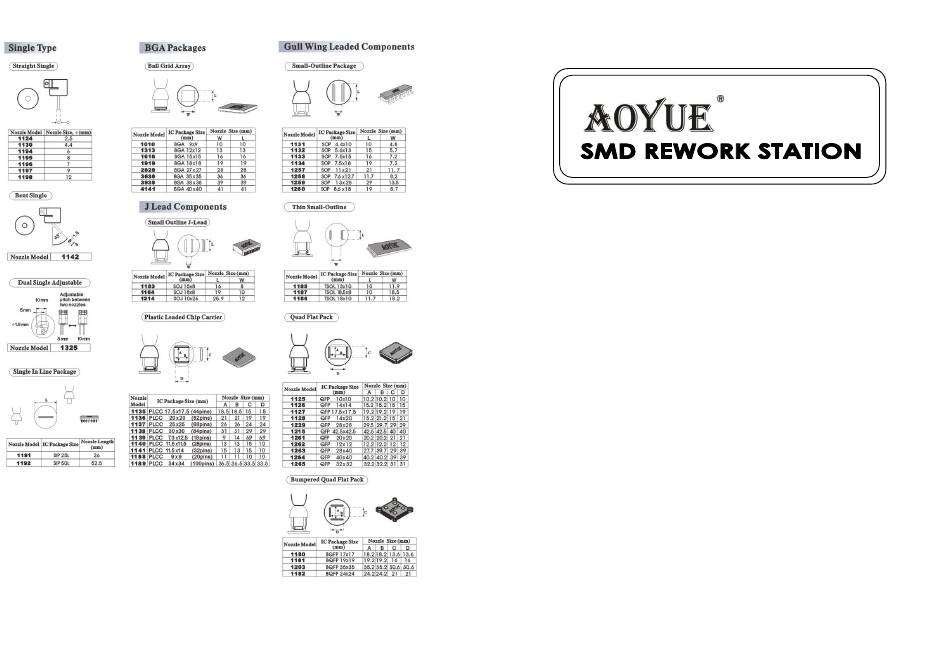

Int857A
INSTRUCTION MANUAL
++
Thank you for purchasing Int857A
SMD Rework Station.
Please read the manual before using the unit.
Keep manual in accessible place for future reference.
Manufactured By:
AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY
Jishui Industrial Zone, Nantou, Zhongshan City,
Guangdong Province, P.R.China
8
http://www.aoyue.com
Advertisement
Related Manuals for aoyue Int857A++
Summary of Contents for aoyue Int857A++
- Page 1 Int857A INSTRUCTION MANUAL ++ Thank you for purchasing Int857A SMD Rework Station. Please read the manual before using the unit. Keep manual in accessible place for future reference. Manufactured By: AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY Jishui Industrial Zone, Nantou, Zhongshan City, Guangdong Province, P.R.China 8 http://www.aoyue.com...
- Page 2 OPERATING INSTRUCTIONS Desolder ing 1. Plug the power cord. 2. Turn on the upper right hand switch. Digital readout TABLE OF CONTENTS of current temperature will appear. 3. Adjust temperature and airflow according to the type of component being reworked. Package Inclusion …...………...…………….….. 3 Parts List ………………………….…………………. 3 NOTE: If reworking plastic or larger components, higher temperature and airflow is needed. Specifications …..…………..………………..….. 4 Function ……….………..………….…...…….…… 4. When proper adjustment of airflow and temperature Care and Safety Precaution …….………..……. 5 has been set, wait a few seconds for the temperature and Operating Instruction airflow to stabilize. ...
- Page 3 OPERATING INSTRUCTIONS PACKAGE INCLUSION Rewor k ing Int857A++ Main Station with hot air gun Hot air gun holder 1. Plug the power cord. Air nozzles 2. Turn on the upper right hand switch. Digital readout G001 IC popper of current temperature will appear. Product manual 3. Adjust temperature and airflow according to the type Power cord of component being reworked. NOTE: If reworking plastic or larger components, higher temperature and airflow is needed. PARTS LIST 4. When proper adjustment of airflow and temperature has been set, wait a few seconds for the temperature and Part No. Description airflow to stabilize. 10094 Heating Element 5. Maintain a 15mm distance between the component to be soldered and the hot air gun. ...
- Page 4 SPECIFICATION CARE and SAFETY PRECAUTIONS Power Input : available in 110V / 220V CAUTION: Misuse may cause injury and physical damage. For your own safety, be sure to comply with the following precaution. Power Consumption: 500W Temperature Range: 100°C – 480°C Temperature may reach a high of 480°C when turned on. ● Heating Element: Metal Heating Core Do not use near flammable gases, paper and other materials. Pump/Motor Type: Turbine Motor Do not touch heated parts, can cause severe burns. Air Capacity: 20 l /min (max) Warn people around work area. Station Dimensions: 132(w) x 121(h) x 192(d) mm Thermal Protector ● Weight: 2.3Kg If the thermal protector trips, reduce the temperature setting or increase the air flow to decrease temperature to safe level. Unit is equipped with auto shutoff ability when temperature gets too high and automatically turns on when temperature FUNCTION ...
