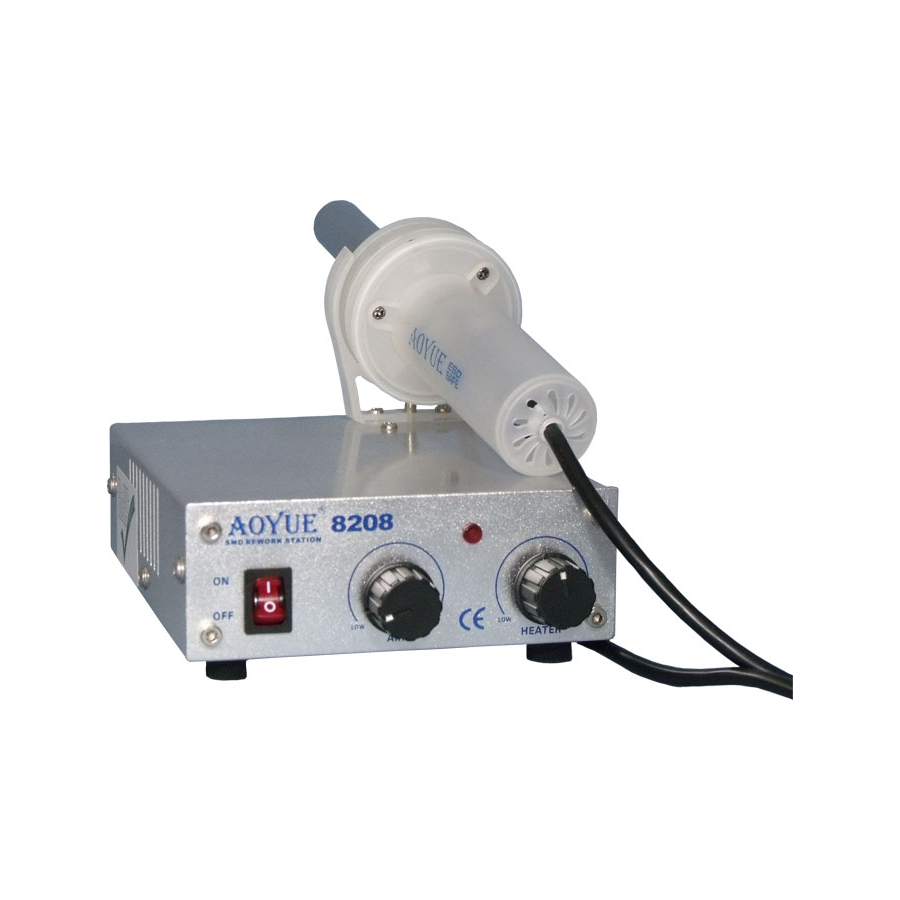

- Page 1 8208 SMD REWORK STATION INSTRUCTION MANUAL MANUFACTURER:AOYUE TONGYI ELECTRONIC EQUIPMENT FACTORY CHINA Http:www.aoyue.com Email:tyqyyy@aoyue.com ...
- Page 2 I. Package Inclusion ： to the rework component’s size .The sensor will activate the machine and start releasing hot air upon lifting the handset . 1 main unit 8208 handheld gun 3 types of air nozzles 3. Pay attention to the type of component being reworked when 1 instruction manual adjusting the temperature and airflow . If working with PCB 1 IC popper plastic components or larger CPUs, higher temperature and 1 power cord airflow is needed . Do not let the hand held gun stay in one position , it must be II. Features: used in a rotating manner . Never let it stand focused in the component for more than one second , at least 15mm distance 1. Turbine motor generated that creates natural soft whirly air . form the component necessary . Best suited for reworking large SMD components, plastic Wait until the solder starts to shimmer and completely melts, insideconnector, mobile phone speakers and others. use a tweezer to remove the component . This process is also 2. Sleep mode sensor . The unit goes standby mode when the used when soldering . handle is put back into the holder . It will turn off and release 4. ...
