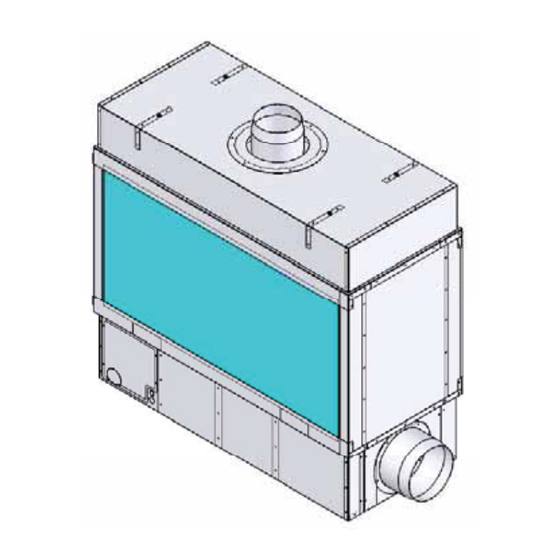

GALAXY SERIES - SINGLE SIDED
Installation and Operating Manual
NG & LP
WARNING: If the information in these instructions are not followed exactly, a fi re or explosion may result
causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other fl ammable vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fi re department.
— Installation and service must be performed by a qualifi ed installer, service agency or the gas supplier.
Stellar Hearth Products
TM
, a division of Hearth & Home Technologies
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
®
- 16873 Fish Point Rd SE, Prior Lake, MN 55372 - (952) 224 - 4072
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GALAXY Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Stellar Hearth GALAXY Series

  • Page 1 Custom Fireplace Program Co-linear Direct Vent Gas Fireplaces GALAXY SERIES - SINGLE SIDED Installation and Operating Manual NG & LP Installer: Leave this manual with the appliance. Consumer: Retain this manual for future reference. WARNING: If the information in these instructions are not followed exactly, a fi re or explosion may result causing property damage, personal injury or loss of life.
  • Page 2 INS_CUST UL REV D Page 2...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Information Electrical 25-31 A. Gas & Electrical Access Point Options Specifi cations B. Wiring - At Install A. Fireplace Dimensions C. Wiring - Service & Troubleshooting B. Clearances D.1 Terminals 1 & 2 - LED Lights C.
  • Page 4: Safety Information

    1 - SAFETY INFORMATION This fi replace complies with ANSI Z21.50-2016/CSA 2.22-2016 “VENTED GAS FIREPLACE”. Installation must conform with local building codes or in the absence of local building codes, with the National Fuel Gas Code, ANSIZ223.1/NFPA 54 - Current Edition, or the Natural or Propane Installation Code, CSAB149.1 A.
  • Page 5: Specifi Cations

    2 - SPECIFICATIONS A. SINGLE SIDED DIMENSIONS Figure 2A More information on gas and electrical access found on Page 25 & 37. SPECIFICATIONS DIMENSIONS B-VENT AIR INTAKE Model # FLUE COLLAR Finishing Finishing Firebox Top Overall Edge To Overall Diameter Diameter Depth Width...
  • Page 6: Clearances

    2 - SPECIFICATIONS SPECIFICATIONS Model # B-VENT REG PV IN-LINE PV BTU’S ORIFICE ORIFICE 4-SS-2-GL 4X2 SINGLE SIDED 8” 10” RSO12 RSIF160 60,000 (3X) #43 (3X) #55 5-SS-2-GL 5X2 SINGLE SIDED 8” 10” RSO12 RSIF160 80,000 (4X) #43 (4X) #55 6-SS-2-GL 6X2 SINGLE SIDED 10”...
  • Page 7: Installation Overview

    2 - SPECIFICATIONS NOTE: The qualifi ed installer should follow the procedure best suited for the installation. C. INSTALLATION OVERVIEW Frame an opening for fi replace, allowing for vent installation. If masonry (optional) will be used, prepare foundation for the masonry load. A lintel is required to support the added weight above the fi replace. Install hearth if desired.
  • Page 8: Prepare The Fireplace

    3 - PREPARE THE FIREPLACE CAUTION: FIREPLACE IS NOT LOAD-BEARING. NOTE: OTHER CLEARANCES APPLY. ALL CLEARANCES MUST BE MAINTAINED. A. STANDOFF INSTALLATION LOOSEN SCREW AND FOLD STANDOFF REMOVE SECOND SCREW LOOSENED SCREW PIVOT FOLDED STANDOFF Figure 3A.1 AND SECURE Figure 3A.2 STEP 1: Refer to Figure 3A.1 STEP 2: Refer to Figure 3A.2 The two (2) standoff...
  • Page 9: Nailing Tab Installation

    3 - PREPARE THE FIREPLACE B. NAILING TABS Figure 3B.1 Figure 3B.2 Figure 3B.3 STEP 1: Refer to Figure 3B.1 STEP 2: Refer to Figure 3B.2 STEP 3: Refer to Figure 3B.3 & Figure 3B.4 The four (4) nailing fl anges will be shipped in Bend the two (2) small tabs out on each Set each nailing fl...
  • Page 10: Framing 10

    4 - FRAMING NOTE: Framing dimensions should allow for wall covering thickness and fi replace facing materials. When using a hearth, adjust rough opening size as necessary to maintain at least minimum clearance requirements. CAUTION: Install fi replace on metal, concrete or hard wood surface extending the full width and depth of fi replace. CAUTION: Vent cap location must be in compliance with guidelines on pages 15-19 of this manual.
  • Page 11: Important Framing Notes

    4 - FRAMING SINGLE SIDED Figure 4 IMPORTANT: FIREPLACE IS NOT LOAD-BEARING. SINGLE SIDED FRAMING DIMENSIONS IMPORTANT FRAMING NOTES: Model # FRAMING SHOULD BE BUILT AFTER THE FIREPLACE IS INSTALLED OR EXTRA CLEARANCE MUST BE PLANNED FOR AT THE INTAKE COLLAR. FRAMING WIDTH HEIGHT...
  • Page 12: Mantel Requirements 12

    5 - MANTEL REQUIREMENTS NON-COMBUSTIBLE ZONE - USING THE PROVIDED 1/2" STANDOFFS The fi replace has standoff s installed on the front of the fi replace standard from the factory. They are located on the upper left, center and right front of the fi replace and are to ensure that the 1/2" [12.7mm] required clearance to combustibles on the surface of the fi...
  • Page 13: Non-Combustible Zone Not Using The 1/2" Standoff S

    5 - MANTEL REQUIREMENTS NON-COMBUSTIBLE ZONE - USING THE PROVIDED 1/2" STANDOFFS The fi replace has standoff s installed on the front of the fi replace standard from the factory. They are located on the left, center and right front hood of the fi replace and are to ensure that the 1/2" [12.7mm] required clearance to combustibles on the surface of the fi...
  • Page 14: Glass Frame Assembly

    Due to the size and sensitivity of shipping the glass separately, it is best to have the replacement glass cut locally if needed. Have your local dealer assist you with contacting Stellar Hearth Products directly to get the proper glass specifi cations.
  • Page 15: Install Glass Frame Assembly/Glass Edge Protectors

    6 - GLASS FRAME ASSEMBLY Refer to Glass Frame Assembly Identifi cation Figures 6A & 6B.1 (Page 14) when installing and removing the glass frame assembly. B. INSTALL GLASS FRAME ASSEMBLY IMPORTANT: PLASTIC GLASS EDGE PROTECTORS The fi replace is shipped with plastic edge protectors that are u-shaped channel pieces wrapped separately, and shipped on top of the glass foam packaging.
  • Page 16: Gas Line Specifi Cations

    NOTE: The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas line at test pressures equal to or less than ½ psi (3.5 kPa). NOTE: For high altitude installations, consult Stellar Hearth Products directly for proper rating methods. GAS LINE CONNECTION...
  • Page 17: Venting

    An in-line power vent (RSIF series from Enervex) is approved for use with Stellar fi replaces. The in-line powervent must be specifi ed and approved for use by Stellar Hearth. Vent runs after the in-line powervent may use a pressure approved pipe, but it is not required.
  • Page 18: In-Line Powervent Preparations - Rsif 180

    8 - VENTING D. IN-LINE POWERVENT PREPARATIONS (RSIF 180) 10" B-Vent Intake Collar - RSIF 180 When installing a fi replace in conjunction with the Enervex RSIF In-Line Powervent System, you will need to attach the provided 10" B-vent collar RSIF (packaged separately from the Enervex powervent box) to the intake side of the RSIF powervent (side opposite from the fan motor).
  • Page 19: Vertical Terminations

    8 - VENTING E. VERTICAL TERMINATIONS • The fi replace must terminate with the included approved powered termination cap. • NO SUBSTITUTION IS ACCEPTABLE. • Carefully follow the instructions included with the approved powered termination cap. • DO NOT use an additional speed control on this powervent. •...
  • Page 20 8 - VENTING F. HORIZONTAL TERMINATION VENT CAP LOCATION & CLEARANCES Figure 8F.2 INS_CUST UL REV D Page 20...
  • Page 21: G Vertical Cap Location & Clearances

    8 - VENTING G. VERTICAL VENT CAP LOCATION AND CLEARANCES ROOF PITCH H (Min.) Ft. H (Min.) M. FLAT TO 6/12 1.0* 0.30 OVER 6/12 TO 7/12 1.25* 0.38 OVER 7/12 TO 8/12 1.5* 0.46 OVER 8/12 TO 9/12 2.0* 0.61 OVER 9/12 TO 10/12 2.5*...
  • Page 22: Roof Termination Cap Installation With Damper

    8 - VENTING H. ROOF TERMINATION CAP INSTALLATION - WITH AND WITHOUT DAMPER OPTIONAL Roof Termination With Optional Damper Figure 8H.1 Roof Termination Without Optional Damper Figure 8H.2 INS_CUST UL REV D Page 22...
  • Page 23: Wall Termination Cap Installation With Damper

    8 - VENTING I. WALL TERMINATION - WITH AND WITHOUT DAMPER OPTIONAL Wall Termination With Optional Damper Figure 8I.1 FRAMING: 8" = 11-3/4" W X 11-3/4" H 10" = 13-1/4"" W X 13-1/4" H Wall Termination Without Optional Damper Figure 8I.2 Page 23 16400-7800 GSS REV D...
  • Page 24: Outside Air Intake

    You must plan for the replacement air that is consumed fromt the room by the fi replace fi replace. Use Table 8J.2 for reference on CFM replacement air if drawing intake air from inside the house and open air requirements for intake screen/vent or consult Stellar Hearth Products for more information. Figure 8J.1 Figure 8J.2...
  • Page 25: Electrical

    9- GALAXY - ELECTRIC A. GAS & ELECTRIC ACCESS OPTIONS Flat covers cover the gas and electrical access area in four locations on the outside of the fi replace; front, left side, rear and bottom on the pilot side of the fi replace. You also have access from inside the fi replace. It is important when planning how you are going to fi nish off the fi replace and take in consideration which access point you are going to use for any service at a later date.
  • Page 26 9- GALAXY - ELECTRIC B. INSTALL Figure 9B INS_CUST UL REV D Page 26...
  • Page 27 9- GALAXY - ELECTRIC C. SERVICE & TROUBLESHOOTING Figure 9C Page 27 16400-7800 GSS REV D...
  • Page 28: Terminals 1 & 2 - Led Lights

    9 - GALAXY - ELECTRIC D.1 TERMINALS 1 & 2 - LED Lights Figure 9D.1 Terminals 1 & 2 D.2 TERMINALS 3 & 4 - Main Flame Figure 9D.2Terminals 3 & 4 INS_CUST UL REV D Page 28...
  • Page 29: Terminals 5 & 6 - Fireplace Power

    9 - GALAXY - ELECTRIC D.3 TERMINALS 5 & 6 - Fireplace Power Figure 9D.3 Terminals 5 & 6 D.4 TERMINALS 7 & 8 - Powervent Connection Figure 9D.4 Terminals 7 & 8 Page 29 16400-7800 GSS REV D...
  • Page 30: Terminals 9 & 10 - Flue Damper Connection

    9 - GALAXY - ELECTRIC D.5 TERMINALS 9 & 10 - OPTIONAL Flue Damper Connection OPTIONAL Figure 9D.5 Terminals 9 & 10 INS_CUST UL REV D Page 30...
  • Page 31 9 - GALAXY - ELECTRIC D.6 TERMINALS 11 & 12 - OPTIONAL Flue Damper Connection OPTIONAL Figure 9D.6 Terminals 11 & 12 Page 31 16400-7800 GSS REV D...
  • Page 32: Finishing The Wall

    10 - FINISHING A.1 FINISHING THE WALL - USING THE PROVIDED 1/2" STANDOFFS NOTE: REFER TO DIMENSIONS SECTION FOR ALLOWABLE FINISHING DIMENSIONS REQUIRED TO FIT THE GLASS PANELS INTO THE FIREPLACE. FINISHING MATERIALS MUST NOT OVERLAP THE DIMENSIONS HIGHLIGHTED IN GREEN ON PAGE 5.
  • Page 33: Finishing The Wall

    10 - FINISHING A.2 FINISHING THE WALL - USING THE PROVIDED 1/2" STANDOFFS NOTE: REFER TO DIMENSIONS SECTION FOR ALLOWABLE FINISHING DIMENSIONS REQUIRED TO FIT THE GLASS PANELS INTO THE FIREPLACE. FINISHING MATERIALS MUST NOT OVERLAP THE DIMENSIONS HIGHLIGHTED IN GREEN ON PAGE 5.
  • Page 34: Lighting & Shutdown

    11 - LIGHTING & SHUTDOWN FOR YOUR SAFETY - READ BEFORE LIGHTING STOP: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. UE TO HIGH SURFACE TEMPERATURES, KEEP CHILDREN, CLOTHING AND FURNITURE AWAY. This appliance needs fresh air for safe operation and must be installed so there are provisions for adequate combustion and ventilation air.
  • Page 35: If The Fireplace Doesn't Light

    11 - LIGHTING & SHUTDOWN STOP! Read safety information on previous page and front cover of this manual before continuing. NOTE: This fi replace is equipped with an ignition device which automatically lights the pilot. DO NOT try to light the pilot by hand. B.
  • Page 36: Pressure Testing

    When fi replace is fi rst lit, the fl ames will be blue. Flames will gradually turn yellowish-orange during fi rst 15 minutes of operation. If fl ames remain blue, or become dark orange with evidence of sooting (black tips), the burner tube venturi may need adjustment. Contact Stellar Hearth.
  • Page 37: Maintenance

    Do not operate this fi replace with glass/frame assembly removed, cracked or broken. • The glass assembly shall only be replaced as a complete unit, as supplied by Stellar Hearth Products. • Replacement of glass & frame assembly, must only be performed by a licensed or qualifi ed service person.
