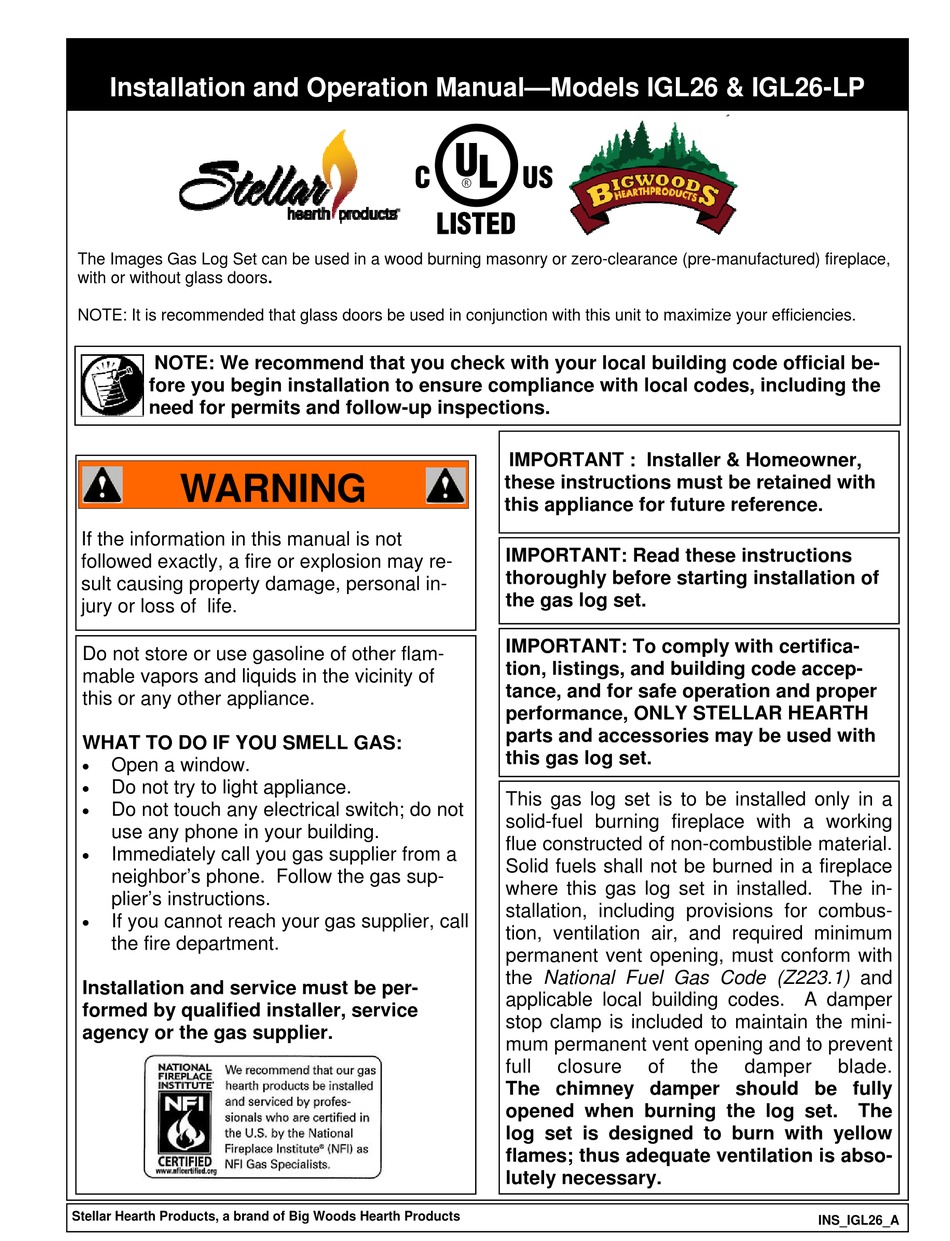

Installation and Operation Manual—Models IGL26 & IGL26-LP
The Images Gas Log Set can be used in a wood burning masonry or zero-clearance (pre-manufactured) fireplace,
with or without glass doors.
NOTE: It is recommended that glass doors be used in conjunction with this unit to maximize your efficiencies.
NOTE: We recommend that you check with your local building code official be-
fore you begin installation to ensure compliance with local codes, including the
need for permits and follow-up inspections.
WARNING
If the information in this manual is not
followed exactly, a fire or explosion may re-
sult causing property damage, personal in-
jury or loss of life.
Do not store or use gasoline of other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Open a window.
Do not try to light appliance.
Do not touch any electrical switch; do not
use any phone in your building.
Immediately call you gas supplier from a
neighbor's phone. Follow the gas sup-
plier's instructions.
If you cannot reach your gas supplier, call
the fire department.
Installation and service must be per-
formed by qualified installer, service
agency or the gas supplier.
Stellar Hearth Products, a brand of Big Woods Hearth Products
IMPORTANT : Installer & Homeowner,
these instructions must be retained with
this appliance for future reference.
IMPORTANT: Read these instructions
thoroughly before starting installation of
the gas log set.
IMPORTANT: To comply with certifica-
tion, listings, and building code accep-
tance, and for safe operation and proper
performance, ONLY STELLAR HEARTH
parts and accessories may be used with
this gas log set.
This gas log set is to be installed only in a
solid-fuel burning fireplace with a working
flue constructed of non-combustible material.
Solid fuels shall not be burned in a fireplace
where this gas log set in installed. The in-
stallation, including provisions for combus-
tion, ventilation air, and required minimum
permanent vent opening, must conform with
the National Fuel Gas Code (Z223.1) and
applicable local building codes. A damper
stop clamp is included to maintain the mini-
mum permanent vent opening and to prevent
full
closure
of
The chimney damper should be fully
opened when burning the log set. The
log set is designed to burn with yellow
flames; thus adequate ventilation is abso-
lutely necessary.
the
damper
blade.
INS_IGL26_A
Advertisement
Table of Contents
Related Manuals for Stellar Hearth IGL26
Summary of Contents for Stellar Hearth IGL26
- Page 1 The chimney damper should be fully opened when burning the log set. The log set is designed to burn with yellow flames; thus adequate ventilation is abso- lutely necessary. Stellar Hearth Products, a brand of Big Woods Hearth Products INS_IGL26_A...
-
Page 2: Homeowner Product Reference Information
Installers, please leave the manual for the homeowner to use for future reference. Homeowners, please retain the manual for future reference. Please have the fireplace insert model information available when contacting a dealer of Stellar Hearth Products for additional information and service work. The model information regarding your fireplace can be found on the rating plate located behind the grate in the valve control area. -
Page 3: Table Of Contents
Connect Power To Gas Log Set …………..……13 Operating Instructions ……………………………14 A. IGL26 Operating Instructions…………………14 B. Fireplace Draft Test Method………………….14 10 Maintenance ……………………………..………..15 11 Troubleshooting………………………….…….16-17 12 Replacement Parts List ……………………….….17 Warranty …………………………………………….…..18 Homeowner Product Reference Information …….…...2 Stellar Hearth Products Company Contact ……….…..2 Page 3... -
Page 4: Important Safety Information
Stellar Hearth Products 1 — IMPORTANT SAFETY INFORMATION 1. The installation, combustion and ventilation air must conform with local codes or, in the ab- sence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA , or the CSA B149.1, Natural Gas and Propane Installation Code. -
Page 5: Specifications
Stellar Hearth Products 3—SPECIFICATIONS 3A — Minimum Firebox Dimensions Minimum firebox dimensions needed are: Front Width—31” Back Width—19” Depth—15” Height—17” 3B — Insert Dimensions Figure 3B.1 Page 5... -
Page 6: Fireplace Requirements
Stellar Hearth Products 4 - FIREPLACE REQUIREMENTS FIREPLACE REQUIREMENTS The Images Gas Log Set must only be installed in a fully vented, non-combustible fireplace with an open damper. The chimney must be free of any obstructions. The fireplace must be designed and approved to burn wood. -
Page 7: Install Damper Clamp
Stellar Hearth Products 5C - Install Provided Damper Clamp The provided damper clamp must be installed to ensure a minimum opening to the flue and prevent an accidental closing of the damper. When the gas log set is operating, the damper must be fully opened. -
Page 8: Glass Log Set And Firebox Liner Installation
Stellar Hearth Products 7 - GLASS LOG SET AND FIREBOX LINER INSTALLATION WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. -
Page 9: Burner And Log Placement Chart
Stellar Hearth Products 7B - GLASS LOG SET INSTALLATION (Sets 1—3) Top View Of Burner and Log Placement Figure 7B.1 Glass Set 1 Log 1— Figure 7B.2 Log 6— Step 1 Set 1, Logs 1 & 6 Insert Log 1 into the slot on the back right side of the chassis with the cutout over the burner tube. Insert Log 6 into the slot on the back left side of the Figure 7B.2 (Also use Figure 7B.1 for reference) -
Page 10: Glass Log Set 2
Stellar Hearth Products 7B - GLASS LOG SET INSTALLATION (Sets 1—3) Glass Set 2 Log 2— Figure 7B.3 Log 5— Step 2 Locate Set 2, Logs 2 & 5 Insert Log 2 into the slot on the middle right side of the chassis with the cutout over the burner tube. Insert Log 5 into the slot on the middle left side of the chassis. -
Page 11: Glass Media
Stellar Hearth Products 7B - GLASS LOG SET INSTALLATION (Glass Media) Media Placement Figure 7B.5 Step 4 Place Glass Media Fill the top surface with glass beads. Starting in front, place the beads deep enough to slightly cover the top of the burner tube, obscuring the burner from sight. -
Page 12: Glass Log Set 4
Stellar Hearth Products 7B - GLASS LOG SET INSTALLATION (Sets 4—6) Glass Set 4 Log 10— Figure 7B.7 Log 11— Step 6 Locate Set 4, Logs 10 & 11 Place Log 10 on top of Log 6 and 2. The slot in the bottom of Log 10 rests into the lowest slot on the top of Log 2. The back of Log 10 rests into the lowest slot on the top of Log 6. -
Page 13: Glass Log Set 6
2. Plug in to the nearest outlet. 3. If desired, additional glass beads can be purchased through your Stellar Hearth dealer. 4. The insert is now ready for operation. Turn the gas supply on at its source. Page 13... -
Page 14: Operating Instructions
Stellar Hearth Products 9 - OPERATING INSTRUCTIONS WARNING: BURN HAZARD! THE GLASS LOGS WILL REMAIN HOT FOR SOME TIME AFTER USE. YOU MUST MAINTAIN THE GLASS LOG LAYOUT AS SHOWN IN THIS MANUAL TO ENSURE PROPER OPERATION OF THE LOG SET. ANY HANDLING OF... -
Page 15: Maintenance
Stellar Hearth Products 10 - MAINTENANCE When installed correctly to the factory specifications, the Images insert requires little maintenance. A simple an- nual inspection prior to each burning season should be done to check for the following issues: 1. Glass Log Placement: The glass logs are designed to be set upright into the provided slots on the insert’s sur- face, and interlocking with each other where described earlier in the manual. -
Page 16: Troubleshooting
Stellar Hearth Products 11 - TROUBLESHOOTING Symptom Possible Problem and Action Pilot will not light > Verify gas supply is turned on. > Ensure orange lead from pilot assembly igniter is securely connected to terminal labeled “I” and black lead from flame rectification sensor is securely connected to terminal labeled “S”... -
Page 17: Replacement Parts List
Check that the flame sensor is fully impinged by pilot flame. If needed, adjust pilot. 12 - REPLACEMENT PARTS LIST Prior to Installation, be sure the gas log set is complete by comparing the contents of the box to the parts list. Images Gas Log Set (IGL26-NG or IGL26-LP) Replacement Parts Part # Description... -
Page 18: Warranty
Stellar Hearth Products Warranty Stellar Hearth Products, a brand of Big Woods Hearth Products Inc, warrants the following components for 5 years to the original owner, subject to proof of purchase: Burner Assembly, Burner Chassis and Glass Log Panels. Electrical components and wearable parts (gas valve, wiring, switches, gasketing, and pilot assembly) are covered and will be provided free of charge for a period of one year from date of purchase.
