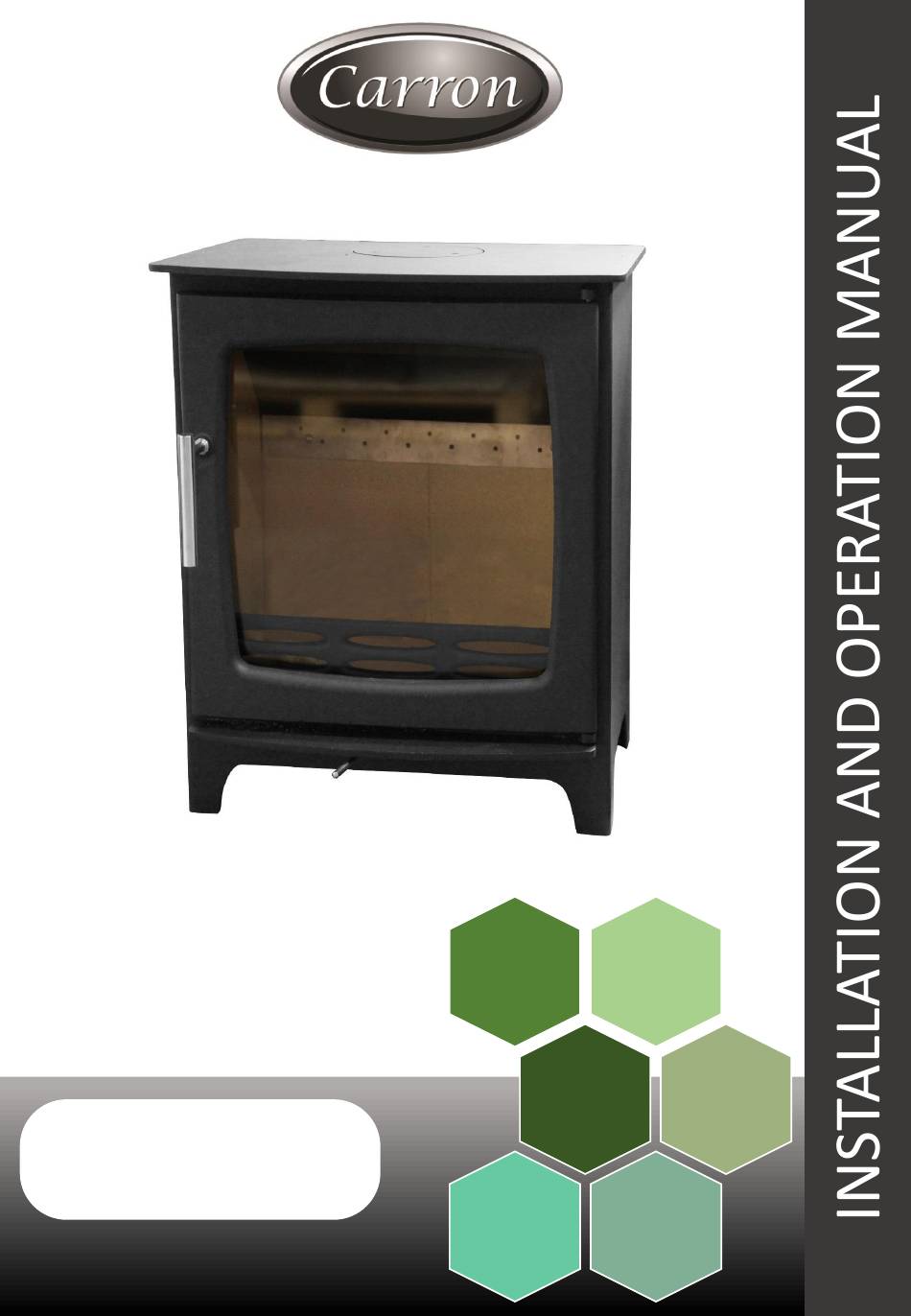

- Page 1 Approved for use in Smoke Design Control Ready Areas High Cleanburn Efficiency MODEL : - CARRON REVOLUTION 5 Document REV – Version 3 Dated 16 November 2018 External Modern Air Supply Design...
- Page 2 Agriculture, Environment and Rural Affairs under Section 16 of the Environmental Better regulation Only genuine Carron spare parts must be Act (Northern Ireland) 2016. In Wales appliances are used. Failure to do so may result in damage exempted by regulations made by Welsh Ministers.
-
Page 3: Installation Instructions
appliance and associated flue system. be connected only to the one appliance i.e. not a shared flue system be well insulated, or have a wall thickness of at least 100mm Carron Revolution 5kw... - Page 4 Do not run the stove with the air control fully open for prolonged periods. This may result in over firing and cause damage to the appliance invalidating your warranty Do not leave the stove unattended during lighting. After the ignition procedure is complete, the stove must not be operated with the door open Carron Revolution 5kw...
- Page 5 Dampers left open Operation with the air controls or appliance dampers open can cause excess smoke. The appliance must not be operated with air controls, appliance dampers or door left open except as directed in the instructions. Carron Revolution 5kw...
- Page 6 800mm away. Warranty Carron Stoves are supplied with a 5 year stove body warranty. This warranty does not cover items considered consumables, these items include door glass, fire bricks, fire rope. The use of incorrect fuels and misuse would invalidate this warranty.
- Page 7 ‘Crazing’ in the coating of the glass can take place if incorrect fuels are used, if this occurs replace the glass. Spares CNE004 – Replacement log retainer CNE002 – Replacement firebrick set CNE005 – Replacement Door/Glass Rope and Fixings CNE003 – Replacement baffle plate HRG008 – Replacement Door Glass Carron Revolution 5kw...
-
Page 8: Specifications
SPECIFICATIONS Carron Revolution 5kw Flue Diameter 125mm (5”) Flue Location Top or Rear Fuel Wood Nominal Output Total Efficiency 82.7% Mean flue gas 253°C temperature Flue Draft Required 12Pa Non-Smoke Control Areas Flue Mass Gas Flow 3.9g/s Mean CO emission (at 13 If the appliance is to be used in an non smoke 0.08%... - Page 9 Freephone: 0808 129 2224 Email sales@carron.uk.net Tel – 0808 1292224 Spares available at : - www.carronspares.co.uk Carron - Hurlingham Business Park, Fulbeck Heath, Grantham, Lincolnshire, NG32 3HL...
