CARRON DARWIN SE 5KW INSET STOVE
21st March 2016
CRA601SE Version 2

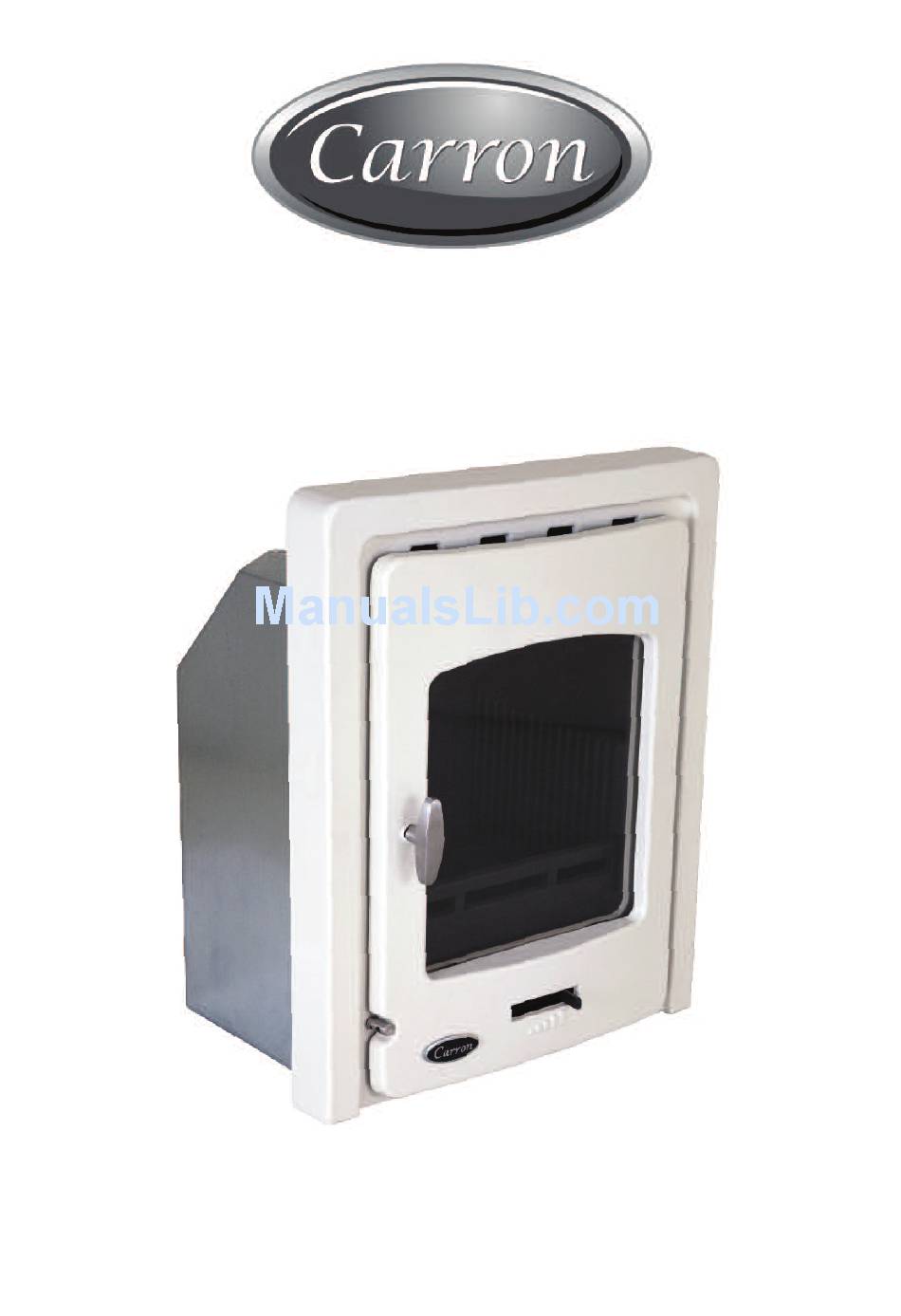

CARRON DARWIN 5KW INSET STOVE
INSTALLATION AND OPERATING INSTRUCTIONS
A qualified solid fuel engineer must carry out the installation of this stove.
We cannot accept responsibility for products not installed in this way.
All local regulations, including those referring to national and
European Standards need to be complied with when installing the appliance.
A list of qualified engineers is available from: www.hetas.co.uk
Advertisement
Table of Contents
Related Manuals for CARRON Dante 5KW
Summary of Contents for CARRON Dante 5KW
- Page 1 CARRON DARWIN SE 5KW INSET STOVE 21st March 2016 CRA601SE Version 2 CARRON DARWIN 5KW INSET STOVE INSTALLATION AND OPERATING INSTRUCTIONS A qualified solid fuel engineer must carry out the installation of this stove. We cannot accept responsibility for products not installed in this way.
-
Page 2: Pre-Installation Checks
Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air Act requirements” The Carron Darwin SE 5KW Inset Stove has been recommended as suitable for use in smoke control areas when burning wood. -
Page 3: Installation
2. Installation We recommend that two people perform the assembly and installation procedure. 2.1 Unpacking the Stove After removing the outer packaging, unbolt the combustion chamber from the wooden pallet and place it gently on its back. The cardboard packaging can be placed underneath to prevent marking. Remove the leg pack from the stove and bolt each leg securely to the underside of the base on the combustion chamber, using the bolts provided (found inside the stove). -
Page 4: Fitting Instructions
ALL FLUE INSTALLATIONS ARE THE RESPONSIBILITY OF THE CUSTOMER. The stove must be connected to a chimney with a minimum continuous draught of 12 Pascal’s (.05” WG). Poor draught conditions will result in poor performance. FITTING INSTRUCTIONS Step 1: Prepare the fireplace area with fireback or milner brick removal. Ensure the opening is suitable for fitting of the insert stove opening required, i.e. - Page 5 Step 11: Fit the individual components in the following order (See Fig. 4): 1. Back Bricks 2. Grate Support 3. Grate 4. Loose Baffle 5. Side Bricks 6. Fire Front Bar 1. Back Bricks: Fit the back bricks in as shown. 2.
- Page 6 2.6 Down Draughts However well designed constructed and positioned, the satisfactory performance of the flue can be adversely affected by down draught caused by nearby hills, adjacent tall buildings or trees. These can deflect wind to blow directly down the flue or create a zone of low pressure over the terminal. A suitable anti-down draught terminal or cowl will usually effectively combat direct down blow but no cowl is likely to prevent down draught due to a low pressure zone.
- Page 7 2.9 Commissioning & Handover On completion of the installation allow a suitable period of time for any fire cement and mortar to dry out, when a small fire may be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to the atmosphere.
- Page 8 If there is a studded wall surrounding the fireplace as in Fig.6, ensure the clearances in this Fig 7 are adhered to. 2.12 Floor Protection It is recommended that this appliance is installed on a solid, level, concrete base, a non combustible hearth conforming to current Building Regulations must extend to the front of the appliance.
- Page 9 Not recommended as fuel: - “green wood”. Green or damp wood reduces stove efficiency and soils the glass, the internal walls and the flue (soot, tar, etc.). - “used timbers”. Burning treated wood (railway sleepers, telegraph poles, offcuts of plywood or chip board, pallets, etc.) quickly clogs the flue ways (soot, tar, etc.), pollutes the environment (pollution and smell, etc.) and cause the fire to burn too quickly and overheat.
- Page 10 Very Important: Wood is a material that contains a great deal of gas (approximately 75 %). The gases are released when the wood is lit and heated up. For this reason, it is important that the gases are ignited quickly after refuelling. If the wood just lies smouldering, especially after refuelling, a lot of smoke is created, which, in the worst case, may cause an explosive ignition of the gasses, resulting in damage to the stove.
- Page 11 Very Important: The stove door should never be opened when the stove is being fired vigorously. We would strongly recommend that you do not leave your stove burning over night. As the gases in the wood do not ignite at the low temperature, but settle as soot (unburned gases) in the chimney and stove. Extreme conditions, such as poor draught in the chimney, large quantities of wood or wet wood, may, in the worst-case scenario, cause an explosive ignition.
- Page 12 Low heat output. Warranty Carron Stoves are supplied with a 3 year stove body and 1 year inner components warranty. This warranty does not cover items considered consumables. These items include door glass, fire bricks, fire rope and grates. The use of incorrect fuels would invalidate this warranty.
- Page 13 Carron stoves are imported and distributed in the UK by: JIG UK Ltd, Hurlingham Business Park, Fulbeck Heath, Grantham, Lincolnshire, NG32 3HL email: sales@carron.uk.net freephone: 0808 129 2224 www.carron.uk.net...
