Ubiquiti EdgeRouter 10X Quick Start Manual

10-port high-performance gigabit router with poe passthrough
Hide thumbs

Advertisement

Table of Contents

10-Port High-Performance Gigabit
Router with PoE Passthrough
Model: ER-10X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeRouter 10X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti EdgeRouter 10X

Summary of Contents for Ubiquiti EdgeRouter 10X

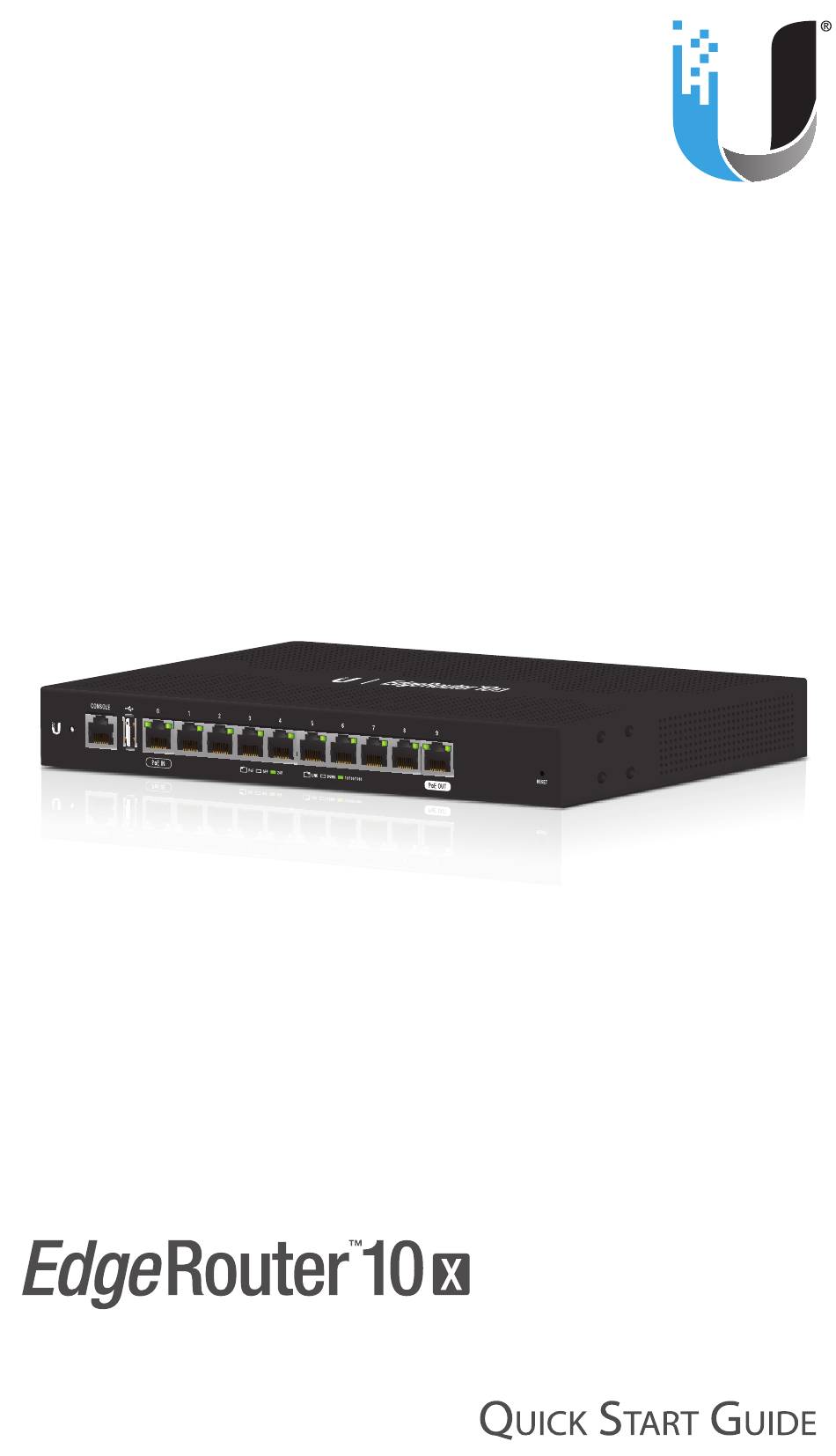

  • Page 1 10-Port High-Performance Gigabit Router with PoE Passthrough Model: ER-10X...

  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti® EdgeRouter ™ This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents EdgeRouter ER-10X Wall Mount Ground Wall Mount Anchors (Qty. 2) Screw Screws (Qty. 2)

  • Page 3: Installation Requirements

    AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: www.ui.com/toughcable WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeRouter to rain or moisture.

  • Page 4: Hardware Overview

    Hardware Overview Front Panel Ports Console RJ45 (Ports 0 - 9) Interface Description RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the Console port to your computer. (If your computer does not have a DB9 port, then you will also need a DB9 adapter.) Then configure the following settings as...

  • Page 5: Front Panel Button

    Front Panel Button Reset Button Description There are two methods to reset the EdgeRouter to factory defaults: • Runtime reset (recommended) The EdgeRouter should be running after bootup is complete. Press and hold the Reset button for about 10 seconds until the LED for port 9 starts flashing and then becomes solidly lit.
  • Page 6 Front Panel LEDs Link/Activity System State Status Flashing Bootup in Progress White Ready for Use Not Connected to Ubiquiti White Network Management System (UNMS ™ Ready for Use Blue Connected to UNMS Steady Ready for Use Blue with Occasional Unable to Connect to UNMS...

  • Page 7: Hardware Installation

    Back Panel Grounding Point Power Ventilation Holes Note: There are additional ventilation holes on the sides of the EdgeRouter. Hardware Installation WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW.
  • Page 8 3. Position the EdgeRouter with the Ethernet ports facing down. Place the wall-mount slots of the EdgeRouter over the screw heads on the wall. Then slide the EdgeRouter down to lock it into place. Grounding the EdgeRouter (Recommended) The EdgeRouter is grounded through the Power Adapter; however, you can add optional ESD grounding for enhanced ESD protection.

  • Page 9: Connecting Power

    Connecting Power 1. Connect the Power Adapter to the Power port. 2. Connect the other end of the Power Adapter to a power outlet.
  • Page 10 Accessing the EdgeOS Configuration Interface The EdgeOS® configuration interface can be accessed via DHCP or static IP address assignment. By default, eth1 is set up as a DHCP client, while eth0 is assigned a static IP address of 192.168.1.1. To configure the EdgeRouter, proceed to the appropriate section: DHCP or “Static IP Address”.

  • Page 11: Static Ip Address

    4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it. Click Login. The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed.
  • Page 12 Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 13 Configuring PoE Settings The PoE setting for port 9 is set to Off by default. WARNING: Before activating PoE, ensure that the connected device supports passive PoE and the supplied voltage. 1. In the Dashboard tab, click Actions > PoE of the Ethernet port you want to configure.

  • Page 14: Specifications

    Specifications ER-10X Dimensions 268.1 x 136.5 x 31.1 mm (10.55 x 5.37 x 1.22") Weight 600 g (1.32 lb) Enclosure Characteristics Metal Housing Max. Power Consumption Power Method 24VDC, 1A Power Adapter (Included) 24V Passive PoE Power Supply External AC/DC Adapter Passive PoE DC/PoE Passthrough Voltage Range...

  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

  • Page 16: Australia And New Zealand

    Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 17 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.

  • Page 18: Declaration Of Conformity

    Čeština [Czech] UBIQUITI tímto prohlašuje, že toto ER-10X zařízení, je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnic 2014/30/EU, 2014/35/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: ui.com/compliance Dansk [Danish] Hermed, UBIQUITI, erklærer at denne ER-10X enhed, er i overensstemmelse...
  • Page 19 Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: ui.com/compliance Íslenska [Icelandic] Hér, UBIQUITI, því yfir að þetta ER-10X tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: ui.com/compliance Italiano [Italian] Con la presente, UBIQUITI, dichiara che questo dispositivo ER-10X, è...

  • Page 20: Online Resources

    Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeRouter, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
