Ready ... Set ... Go!
Since 1979
JUST THE BASICS
1. Insert the battery.
2. Insert the EarMate-4220
EarMate-4220
into your ear.
Set the EarMate-4220 to your preference:
Look inside for
complete instructions.
–Adjust the volume.
–Adjust the fit with different size eartips.
© Hearing Help Express®, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EarMate-4220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hearing Help Express EarMate-4220

  • Page 1 JUST THE BASICS 1. Insert the battery. 2. Insert the EarMate-4220 EarMate-4220 into your ear. Set the EarMate-4220 to your preference: Look inside for complete instructions. –Adjust the volume. –Adjust the fit with different size eartips. © Hearing Help Express®, Inc.
  • Page 2 Licensed hearing aid 45-D dispensers on staff RISK-FREE RIAL Since 1979 Congratulations on your choice of the NEW EarMate®-4220! It is a tiny hearing aid with lots of power. You'll enjoy all the features, especially knowing how little you paid for your EarMate®-4220 hearing aid.
  • Page 3: Table Of Contents

    Table of Contents Introduction The Do's and Don'ts Table of contents Care and Cleaning 14-15 All the parts enclosed Service Plans EarMate-4220 parts identified Service Fit and Eartip information Troubleshooting Inserting the battery Technical Data 20-21 Inserting and removing the aid...
  • Page 4 Everything you need to enjoy better hearing! EarMate-4220 hearing aid Custom Fit System (three sizes of soft eartips) 5 FREE batteries Complete instruction manual 45-day home trial Customer Service Phone: (800) 221-2099 Cleaning Brush Mon-Fri, 8am-5pm CST...

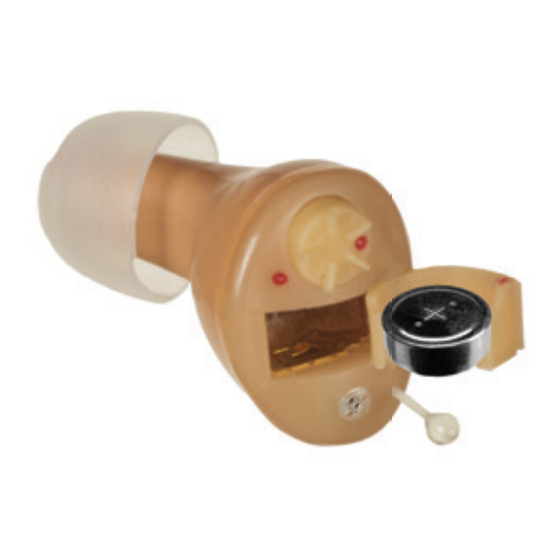

  • Page 5 (pullout knob) Battery holder Microphone Serial # located on the outer shell of your EarMate-4220. Right or Left Indicator: Red = right ear Blue = left ear On / Off Control: To turn your hearing aid off, turn the volume control all the way down.
  • Page 6: Fit And Eartip Information

    Push the large open end of the eartip over the nozzle (the small, narrow part of the EarMate-4220). You should feel the eartip “snap” over the flange on the EarMate-4220. Gently tug and/or twist on the eartip to ensure that it is Caution: It is important that the securely attached.
  • Page 7: Inserting The Battery

    Inserting the battery First – opening the battery holder 1. Hold the EarMate-4220 so the volume control above is the battery holder. EarMate-4220 left pictured with battery holder open 2. Next, using a fingernail gently pull the battery holder Pictured with the to the side.
  • Page 8 LOW BATTERY INDICATOR: You will hear six sets of double beeps when the battery voltage falls lower than 0.95V. The hearing aid will automatically shut off when the battery is no longer strong enough to power your EarMate-4220.
  • Page 9 To remove: Pull gently on the Micro handle to remove the EarMate-4220. Important: Check the fit of your EarMate-4220 before wearing it outside. If a hearing aid doesn’t fit well, it can fall out of your ear! Travel battery tester –...
  • Page 10: Volume Control

    How to adjust the volume Change the volume by pressing one finger against the volume control (as if you were pointing at it). Increase volume: Twist forward, towards the front of you. Decrease volume: Twist backwards, towards the back of you. Volume control...
  • Page 11: Talking On The Telephone

    This may take a little practice. Note: Your EarMate-4220 may feedback (squeal) if it is set too high, a hand or object is near it, or when inserting and removing it. You can also use your EarMate-4220 with a Portable Snap-On Telephone Amplifier.
  • Page 12: Helpful Tips

    Helpful tips 1. Start Slowly – Begin by using your new hearing aid a few hours a day while you are alone. If you're not used to wearing a hearing aid, you will probably notice many sounds you have not heard in a while. And while you may enjoy the sounds of birds again, other sounds like crackling paper and the refrigerator running may take some time to get used to.
  • Page 13: The Do's And Don'ts

    Never place your EarMate-4220 in water. If it becomes wet, immediately remove the battery and let your EarMate-4220 stand in a dry place or DryAid dehumidifier for several hours. NEVER use heat (blowdryer, oven, microwave, etc.) to dry your EarMate-4220.
  • Page 14: Care And Cleaning

    Care and Cleaning Open the battery holder when not wearing your EarMate-4220. Any moisture inside your hearing aid can then evaporate, extending the life of your EarMate-4220. Always clean your EarMate-4220 at the beginning of each day prior to using it. Without regular cleaning, wax can build up and prevent your EarMate-4220 from working properly.
  • Page 15 Call toll-free to order replacement tips (see page 6). 1-800-221-2099. Protect your EarMate-4220 Remove harmful moisture from your hearing aid with the Best Value DryAid dehumidifier. Even a little moisture can attack sensitive electronics in hearing aids and needlessly shorten their life.
  • Page 16: Service Plans

    Service Plans – Protect your hearing investment Protection Plan – One year of FREE hearing aid repairs or replacements! ($99-$149 each) Get PROTECTED - Water, droppage, step on it - You name it! We will fix or • replace it free of charge for one year (loss or theft are not covered). •...
  • Page 17: Service

    1. Enclose a note with your name, address, telephone number and a description of what is wrong with your EarMate-4220 hearing aid. 2. If your EarMate-4220 is out of warranty, also include payment. (Call to verify price.) 3. Pack your EarMate-4220 securely in a sturdy box.
  • Page 18: Troubleshooting

    DryAid dehumidifier . (pg. 15) causing soreness in your ear 1. Let your ear get used to the EarMate-4220. Wear it for only a few hours at a time for the first few days or less if causing soreness. If soreness persists, stop using EarMate-4220 and call us for assistance.
  • Page 19: Technical Data

    Technical Data – EarMate-4220 hearing aid Maximum SSPL90 107.2 dB HFA full-on gain 25.8 dB Reference test gain 22.8 dB Frequency range 200 Hz to 7118.1 Hz Total harmonic distortion 500 Hz: 1.4%, 800 Hz: 1%, 1600 Hz: 0.5% Equivalent input noise 28.7 dB...
  • Page 20: Additional Information

    Precautions: A hearing aid is a accumulation of cerumen (earwax). before the hearing aid is purchased. precision electronic device and as such, If this occurs, consult your physician. Following the medical evaluation, it requires the care in use and handling Keep new and used batteries out of the physician will give you a written that you would afford any fine piece of...
  • Page 21 NOTE: Special care should be exercised sale of hearing aids to those individuals aid dispenser determines through who have obtained a medical evaluation inquiry, actual observation, or review of in selecting and fitting a hearing aid from a licensed physician. Federal law any other available information whose maximum sound pressure level exceeds 132 decibels because there may...
  • Page 22: Accessories

    Avoid costly repairs...at-home expert care Almost all repairs are due to earwax and dirt. It gets inside your hearing aid where a cleaning brush can’t reach. Now you can clean your hearing aid like the professionals do. Simply vacuum out dirt, wax, oils, and moisture. It’s easy and it only takes a couple of minutes each week.
  • Page 23 BEST BATTERIES You always get: Best battery value Home delivery Fresh! Fresh! Fresh! CALL TOLL-FREE Call for your preferred brand and we’ll rush your batteries to your door!
  • Page 24: Warranty

    Money-Back Guarantee Manufacturer's Warranty Try your Hearing Help Express® Your EarMate®-4220 hearing aid is EarMate-4220 hearing aid for 45 days warranteed for one year against risk-free. If you are not 100% satisfied, defects in manufacturer's materials simply return all materials within 45 days and workmanship.
