Since 1979
*360180110*

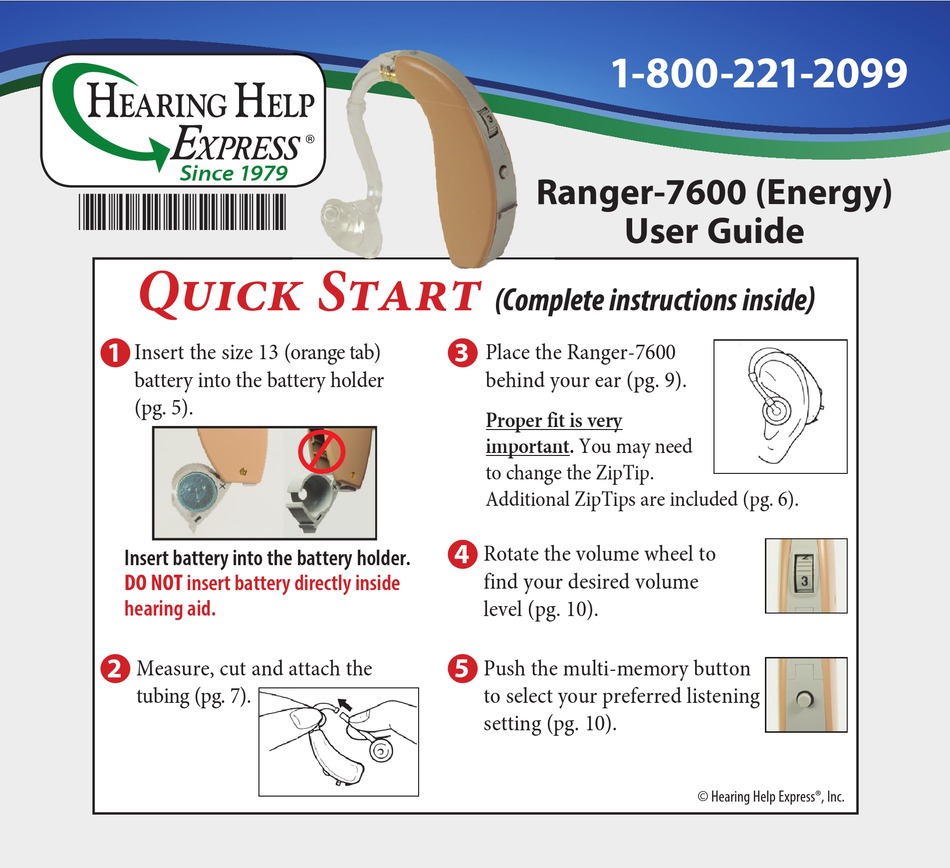

Quick Start
1
Insert the size 13 (orange tab)
battery into the battery holder
(pg. 5).
Insert battery into the battery holder.
DO NOT insert battery directly inside
hearing aid.
2
Measure, cut and attach the
tubing (pg. 7).
1-800-221-2099
Ranger-7600 (Energy)
Ranger-7600 (
User Guide
(Complete instructions inside
3
Place the Ranger-7600
behind your ear (pg. 9).
Proper fit is very
important. You may need
to change the ZipTip.
Additional ZipTips are included (pg. 6).
4
Rotate the volume wheel to
find your desired volume
level (pg. 10).
5
Push the multi-memory button
to select your preferred listening
setting (pg. 10).
)
© Hearing Help Express®, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hearing Help Express Ranger-7600
Summary of Contents for Hearing Help Express Ranger-7600
- Page 1 DO NOT insert battery directly inside hearing aid. level (pg. 10). Measure, cut and attach the Push the multi-memory button tubing (pg. 7). to select your preferred listening setting (pg. 10). © Hearing Help Express®, Inc.
- Page 2 RIAL Since 1979 Yes, you get a full 45 days to try your Hearing Help Express hearing aid but THE FIRST 21 DAYS ARE THE MOST IMPORTANT. Hearing aids are not like wearing glasses – they don’t repair your hearing, they assist what hearing you have left.
-
Page 3: Table Of Contents
Technical Data 16-17 How to Attach the Tubing Additional Information 18-19 How to Tell Right from Left Custom Earmolds Inserting & Removing Ranger-7600 Accessories 21-23 Volume Control & Listening Settings Warranty Helpful Tips All prices subject to change. 1714 Sycamore Rd • PO Box 586 • DeKalb, IL 60115... - Page 4 4. Volume control 5. Multi-memory push button 6. Battery holder Battery Size: Your Ranger-7600 uses a size 13 (orange tab) zinc-air battery. Serial Number: Located on the outer shell of the Ranger-7600. With a battery Open the battery installed, close the...
-
Page 5: How To Insert The Battery
LOW BATTERY INDICATOR: When the battery is no longer strong enough to power your Ranger-7600, you will hear 3 double beeps every 8 minutes. This will repeat until you replace the battery. - Page 6 Your Ranger-7600 hearing aid comes with 2 ZipTips with tubing. Included with your order: • Size Small ZipTip with small vent (try this ZipTip first) • Size Small ZipTip with no vent (try this ZipTip if you have trouble with feedback/squeal) If you have trouble with the fit of the ZipTip, give us a call and we will send you a Size Medium to try.
-
Page 7: How To Attach The Tubing
How to attach the tubing: Put ZipTip and Ranger-7600 in place 1. Place the ZipTip with attached tubing in your ear and the hearing aid over your ear. CUT OFF EXTRA TUBING 2. Observe where the tubing overlaps the earhook and mark the tubing leaving an 1/8 to 1/4 inch overlap. - Page 8 How to tell your right Ranger-7600 from your left Ranger-7600: Behind-the-ear hearing aids can be used on either ear but the ZipTips are specifically made to fit either the left or right ear. (Once you have attached your ZipTip and tubing to your hearing aid it is then set specifically for either your right or left ear.) The sound opening on the ZipTip will “point”...
-
Page 9: Place The Ranger
Some people prefer to first place the Ranger-7600 over their ear and then insert the ZipTip. Experiment and find what works best for you. How to remove the Ranger-7600: Reverse steps 1 and 2 when removing the Ranger-7600 hearing aid. -
Page 10: Volume Control & Listening Settings
Choosing your Listening Settings: You have 4 multi-memory settings to choose from. When turned on, your Ranger-7600 will be on setting 1. Simply push the button to choose the setting you need. Setting 1: Normal setting – 1 beep. Use in most listening situations. -
Page 11: Helpful Tips
Helpful Tips 1. Start Slowly – Begin by using your new hearing aid a few hours a day while you are alone. If you are not used to wearing a hearing aid, you will probably notice many sounds you have not heard in a while. Crackling paper may be surprisingly loud. -
Page 12: Care And Cleaning
Care and Cleaning We’ve done what we can to protect your Ranger-7600 from moisture and earwax but a little regular cleaning by you will go a long way towards trouble-free use. Without regular cleaning, wax and moisture can build up and prevent your Ranger-7600 from working properly. -
Page 13: Important Care Instructions
Never place your Ranger-7600 in water. If it becomes wet, immediately remove the battery and let your Ranger-7600 stand in a dry place or DryAid dehumidifier (pg. 21) for several hours. NEVER use heat (blowdryer, oven, microwave, etc.) to dry your Ranger-7600. -
Page 14: Troubleshooting & Service
Call toll-free to order (pg. 21). If your hearing aid requires service, send it to: Hearing Help Express • 1714 Sycamore Rd • PO Box 586 • DeKalb, IL 60115-0586 1. Call 1-800-221-2099 for authorization 3. Pack your hearing aid securely in a sturdy before returning your aid for repair. -
Page 15: Service Plans
Service Plans – Protect your hearing investment Protection Plan – One year of worry-free hearing aid repairs or replacements! (Call for price) • Act Now! - The optional Protection Plan is available for purchase for up to 90 days from the shipment date of your hearing aid(s). Get PROTECTED - Water, droppage, step on it - You name it! We will fix or •... -
Page 16: Technical Data
Ranger-7600 Technical Data Maximum SSPL90 132.1 dB HFA SSPL90 123.8 dB HFA full-on gain 59.6 dB Reference test gain 46.3 dB Frequency range 200 Hz to 5300 Hz Equivalent input noise 18.7 dBSPL Total harmonic distortion 500 Hz: 3%, 800 Hz: 3%, 1600 Hz: .4%... - Page 17 Testing Diagram...
-
Page 18: Additional Information
Precautions: A hearing aid is a accumulation of cerumen (earwax). before the hearing aid is purchased. precision electronic device and as such, If this occurs, consult your physician. Following the medical evaluation, it requires the care in use and handling Keep new and used batteries out of the physician will give you a written that you would afford any fine piece of... - Page 19 NOTE: Special care should be exercised sale of hearing aids to those individuals aid dispenser determines through who have obtained a medical evaluation inquiry, actual observation, or review of in selecting and fitting a hearing aid from a licensed physician. Federal law any other available information whose maximum sound pressure level exceeds 132 decibels because there may...
-
Page 20: Custom Earmolds
Improve your Ranger with a custom earmold Reduce feedback (whistling) Reduce stuffed up feeling Reduce talking-in-barrel sound Making your earmold is easy. Step one: We’ll send you a kit with materials and complete instructions so you or a friend can make your ear impression. Making an Impression (If you have had ear surgery or ear damage or if you have an unusual ear canal, have your doctor assist you.) -
Page 21: Accessories
Protect your Ranger-7600 Remove harmful moisture from your hearing aid with the Best Value DryAid dehumidifier. Even a little moisture can attack sensitive electronics in hearing aids and needlessly shorten their life. Prevent damage. Store your hearing aid in a dehumidifier overnight. - Page 22 Travel battery tester Travel battery tester This pocket battery tester is small enough to go with you anywhere. This pocket battery tester is small enough to Digital tester takes the guesswork out of battery testing. Includes key Digital tester takes the guesswork out of battery testing. Includes key chain and built-in battery holder compartment.
- Page 23 BEST BATTERIES You always get: Best battery value Home delivery Fresh! Fresh! Fresh! CALL TOLL-FREE 1-800-221-2099 Call for your preferred brand and we’ll rush your batteries to your door!
-
Page 24: Warranty
Money-Back Guarantee Manufacturer's Warranty Try your Hearing Help Express® Your Ranger-7600 hearing aid is Ranger-7600 hearing aid for 45 days warranteed for one year against risk-free. If you are not 100% satisfied, defects in manufacturer's materials simply return all materials within 45 days and workmanship.
