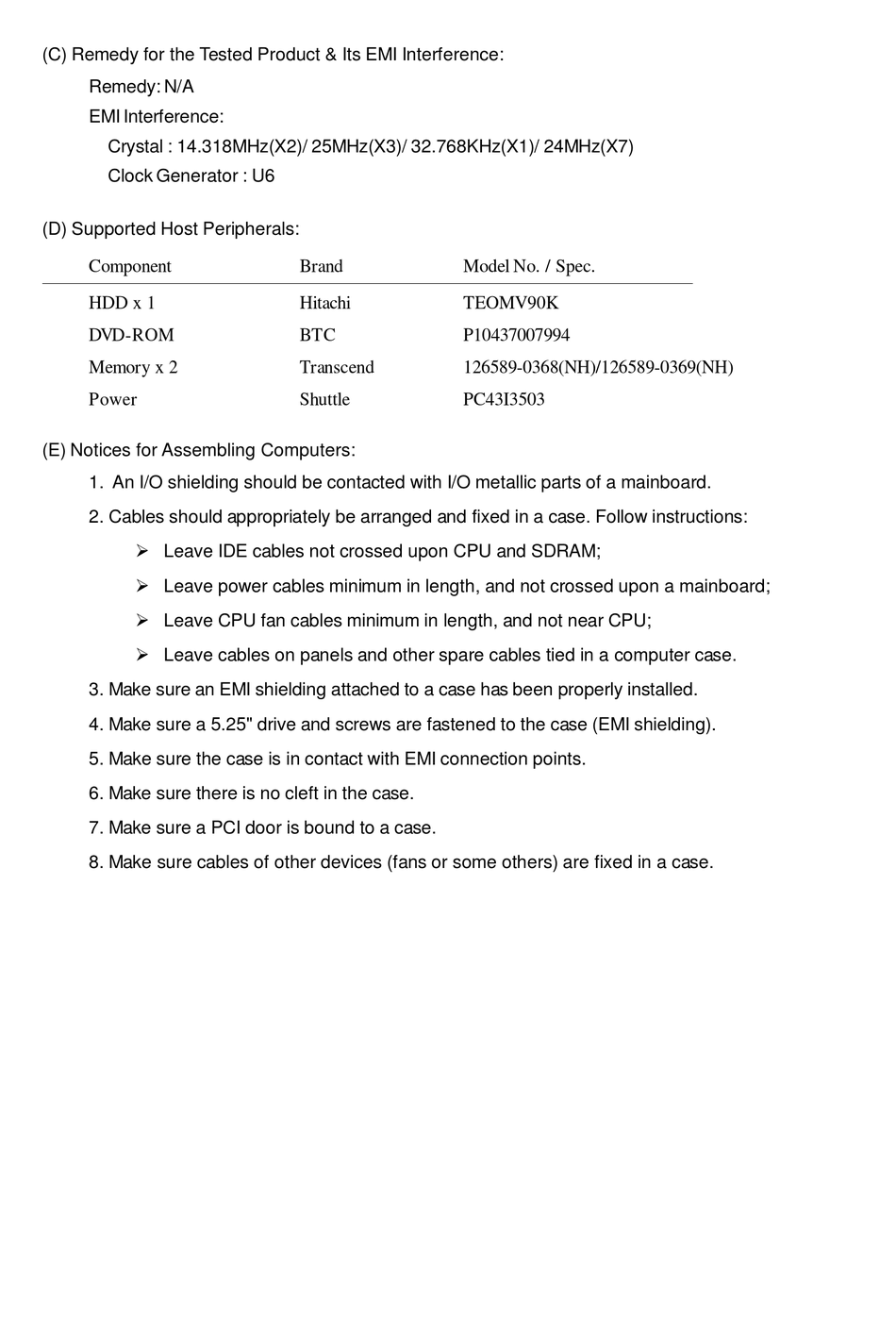

Shuttle XPC SD39P2 User Manual page 3

(C) Remedy for the Tested Product & Its EMI Interference:
Remedy: N/A
EMI Interference:
Crystal : 14.318MHz(X2)/ 25MHz(X3)/ 32.768KHz(X1)/ 24MHz(X7)
Clock Generator : U6
(D) Supported Host Peripherals:
Component
HDD x 1
DVD-ROM
Memory x 2
Power
(E) Notices for Assembling Computers:
1. An I/O shielding should be contacted with I/O metallic parts of a mainboard.
2. Cables should appropriately be arranged and fixed in a case. Follow instructions:
Ø Leave IDE cables not crossed upon CPU and SDRAM;
Ø Leave power cables minimum in length, and not crossed upon a mainboard;
Ø Leave CPU fan cables minimum in length, and not near CPU;
Ø Leave cables on panels and other spare cables tied in a computer case.
3. Make sure an EMI shielding attached to a case has been properly installed.
4. Make sure a 5.25" drive and screws are fastened to the case (EMI shielding).
5. Make sure the case is in contact with EMI connection points.
6. Make sure there is no cleft in the case.
7. Make sure a PCI door is bound to a case.
8. Make sure cables of other devices (fans or some others) are fixed in a case.
Brand
Hitachi
BTC
Transcend
Shuttle
Model No. / Spec.
TEOMV90K
P10437007994
126589-0368(NH)/126589-0369(NH)
PC43I3503
