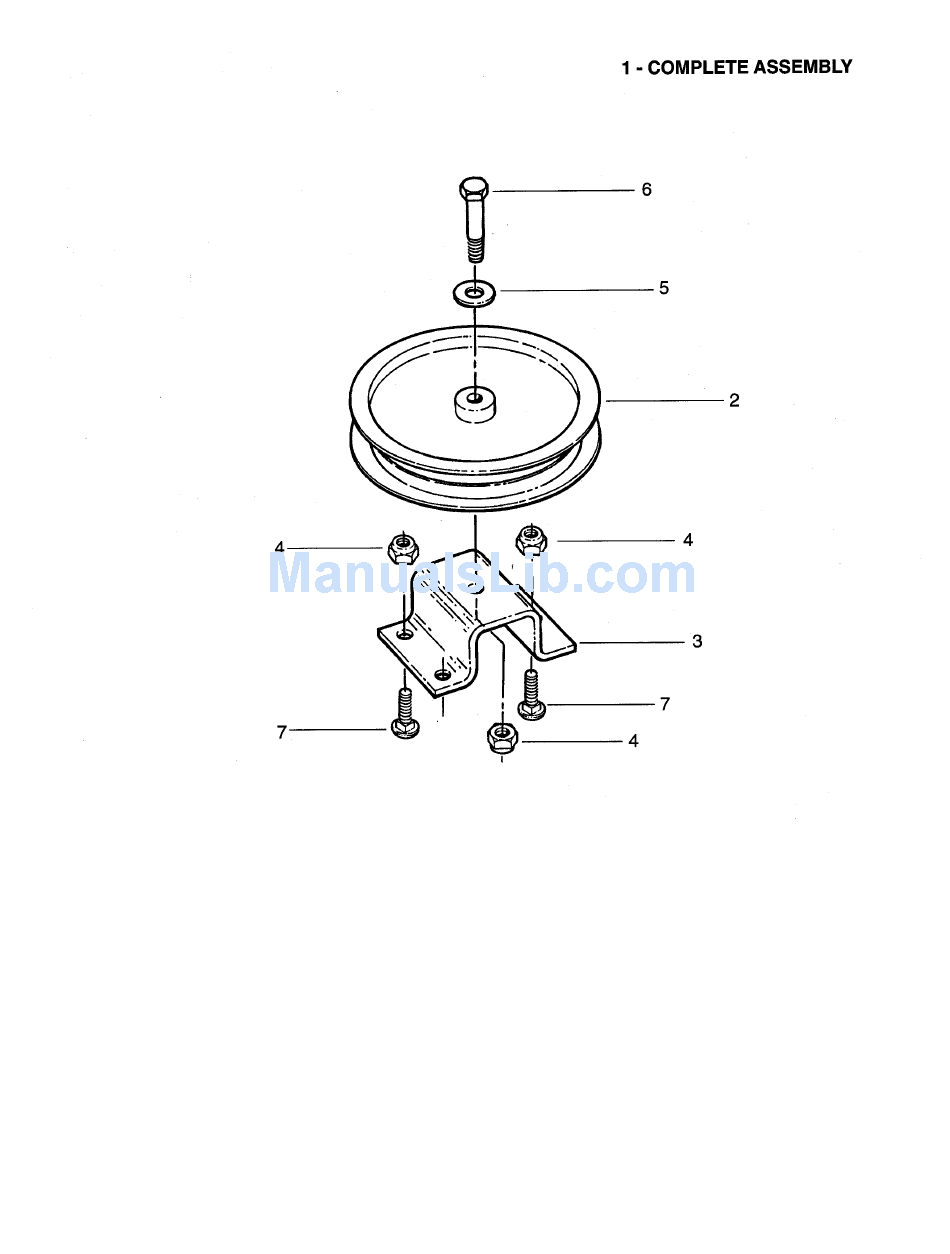

FIXED IDLER GROUP

ITEM
1
2
3
4
5
6
7
MANUAL No. 72073 (I.R. 10/7/98)
PART NO.
---
3-5789
3-6449
9-1299
9-1300
9-1305
9-1640
DESCRIPTION
ASSEMBLY, Fixed Idler Group
PULLEY, 5-1/2" O.D. Idler
STAND, Fixed Idler
NUT, 3/8 - 16 Hex Nyloc (4)
WASHER, 7/16" x 1" Flat
SCREW, 3/8 - 16 x 2" Hex Head Cap
BOLT, 3/8 - 16 x 1" Rounded Head Square Neck (3)
9
73" FINISHING MOWER
