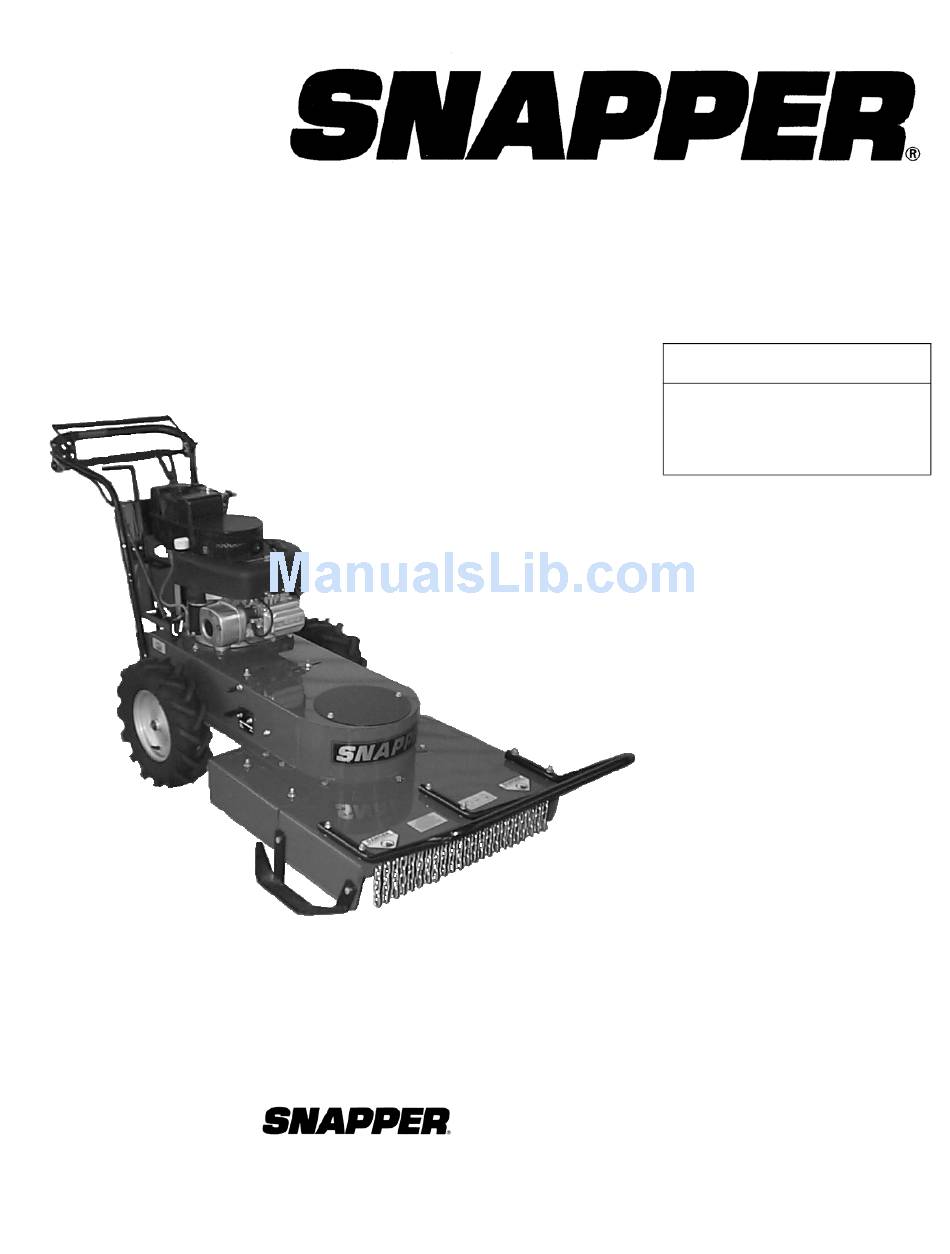

- Page 1 COPYRIGHT © 2005 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for FIELD & BRUSH MOWER McDonough, GA, 30253 U.S.A. Revision 1, 8/30/2005 SERIES 0 MODEL FB13250BS FB13250BV FB15250KW Manual No. 7006933 TP 400-5009-1-CW-N...
-
Page 3: Table Of Contents
PAGE GROUP HANDLE PARTS GROUP ENGINE DECK GROUP MOWER DECK PARTS GROUP DECALS GROUP ELECTRICAL & MISC. GROUP WIRING HARNESS GROUP WIRING SCHEMATIC Hardware Identification & Torque Specifications FIELD & BRUSH MOWER SERIES 0 Table Of Contents Manual No. 7006933 TP 400-5009-1-CW-N... -
Page 4: Handle Parts Group
HANDLE PARTS GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 5 HANDLE PARTS GROUP Item Part No Description 1719965 GRIP, Handle 7058960 LEVER, Blade Clutch Engage (weldment) 7027802 CABLE, Throttle, Kawasaki 7027394 CABLE, Throttle, Briggs 7014871 LUBE FITTING, 3/16” hole 7091686 SCREW, 1/4-20 x 3/4” Hex Washer Self-Tap 7029167 DECAL, Throttle, Brush Cutter 1723550 BRACKET, Blade Engage Lock 7091318...
- Page 6 HANDLE PARTS GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0...
- Page 7 HANDLE PARTS GROUP Item Part No Description 7092031 NUT, 5/16-24 Hex Jam 1723555 ROD, Trans. Engage, Lower (3/8-24 LH & 5/16-24 threads) 1723351 BRACKET, Deck Safety Switch 1723552 SWITCH, Deck Safety 1723662 BOLT, 1/2 x 1-3/16 to 3/8-16 Shoulder 7041868 SPACER, Transmission, Express 7090188 WASHER, 5/16”...
-
Page 8: Engine Deck Group
ENGINE DECK GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 9 ENGINE DECK GROUP Item Part No Description 7091318 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 5 1723549 PLATE, Clutch Cover 7091511 NUT, 5/16-18 Hex, GR 5 or B 7090187 WASHER, 5/16” Split Lock 1704723 CAP, Black 1723803 DECK, Engine (weldment) 7091302 NUT, 3/8-16 Hex, GR 5 or B 7091320...
- Page 10 ENGINE DECK GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0...
- Page 11 ENGINE DECK GROUP Item Part No Description 1723581 DRIVE WHEEL, Right 7091501 SCREW, 3/8-16 x 2-1/2” Hex Head Cap, GR 5 1723579 PULLEY, Blade Clutch Idler 1723577 IDLER BOSS 1723576 ROD, Blade Clutch Idler Tensioning (3/8-16 thread) 7076938 SCREW, 5/16-18 x 2-1/4” Hex Head Cap, GR 5 1723575 HANGER, Trans.
-
Page 12: Mower Deck Parts Group
MOWER DECK PARTS GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 13 MOWER DECK PARTS GROUP Item Part No Description 7091511 NUT, 5/16-18 Hex, GR 5 or B 7090187 WASHER, 5/16” Split Lock 1723532 WELDMENT, Front Bumper 1723533 CHAIN CURTAIN 7091540 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR 5 1723534 BRACKET, Chain Curtain 1723535 ROD, Chain Curtain Mounting 7091304...
-
Page 14: Decals Group
DECALS GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 15 7028349 DECAL, Ignition/Cutting Blade 7029167 DECAL, Throttle, Brush Cutter 1725230 DECAL, Speed Adjuster 7073594 DECAL, Caution, Open Belt Drive 7075760 DECAL, SNAPPER, 8” long 7029331 DECAL, 25” 7071916 DECAL, SNAPPER, 14-1/2” long Footnotes: FIELD & BRUSH MOWER SERIES 0 Note Manual No.
-
Page 16: Electrical & Misc. Group
ELECTRICAL & MISC. GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 17 ELECTRICAL & MISC. GROUP Item Part No Description 7044922 WIRE HARNESS, Briggs 1724057 WIRE HARNESS, Briggs 7044926 WIRE HARNESS, Kawasaki 1724058 WIRE HARNESS, Kawasaki 1723618 FUEL TANK, Auxilliary 7012222 CLAMP, Fuel Hose 7023506 BEZEL 7012080 CABLE TIE, 7” 1723635 BRACKET, Battery Hold Down 7091314 WASHER, 1/4”...
-
Page 18: Wiring Harness Group
WIRING HARNESS GROUP Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 19 WIRING HARNESS GROUP Item Part No Description 7044922 WIRE HARNESS, Briggs 1724057 WIRE HARNESS, Briggs 7044926 WIRE HARNESS, Kawasaki 1724058 WIRE HARNESS, Kawasaki Footnotes: FIELD & BRUSH MOWER SERIES 0 Note Simplicity p/n used on early production Simplicity p/n used on early production Manual No.
-
Page 20: Wiring Schematic
WIRING SCHEMATIC Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 21 WIRING SCHEMATIC Item Part No Description Wiring Schematic includes 4 harness* Footnotes: FIELD & BRUSH MOWER SERIES 0 Note *7044922, 1724057, 7044926 & 1724058 Manual No. 7006933 TP 400-5009-1-CW-N...
-
Page 22: Hardware Identification & Torque Specifications
Hardware Identification & Torque Specifications Manual No. 7006933 FIELD & BRUSH MOWER TP 400-5009-1-CW-N SERIES 0... - Page 23 Hardware Identification & Torque Specifications Item Part No Description Chart for hardware I.D. & torque specs. Footnotes: FIELD & BRUSH MOWER SERIES 0 Note Manual No. 7006933 TP 400-5009-1-CW-N...
- Page 26 Parts Manual for FIELD & BRUSH MOWER SERIES 0 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
