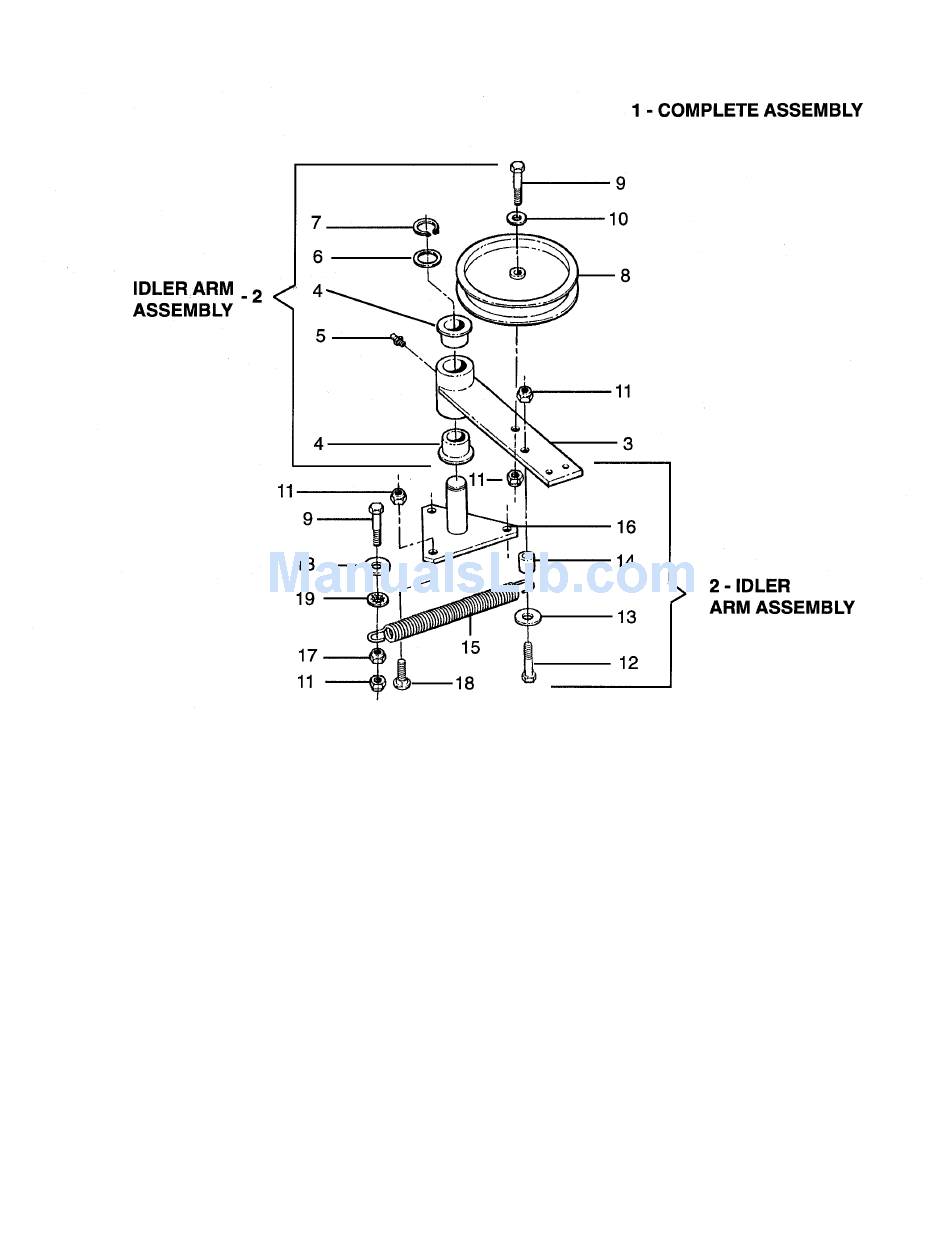

SPRING-LOADED IDLER GROUP
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
MANUAL No. 72073 (I.R. 10/7/98)
PART NO.
---
---
4-2619
2-3556
7-6998
3-2031
1-2709
3-5789
9-1305
9-1300
9-1299
9-1553
9-1331
3-5858
3-5667
4-1295
9-1619
9-1640
1-3847
DESCRIPTION
ASSEMBLY, Spring-Loaded Idler Group
(Incl. Items 1 thru 18)
ASSEMBLY, Idler Arm (Incl. Items 3 thru 14)
ARM, Idler (Weldment)
BUSHING (2)
FITTING, Lube 1/4 - 28 Straight
WASHER, 1/32 I.D. x 1-1/4 O.D. Flat
E-RING, 1"
PULLEY, Idler 5-1/2" O.D.
SCREW, 3/8 - 16 x 2" Hex Head Cap, Grade 5 (2)
WASHER, 3/8" Flat
NUT, 3/8 - 16 Hex Nyloc (6)
SCREW, 3/8 - 16 x 1-3/4" Hex Head Cap, Grade 5
WASHER, 13/32 x 1-1/2 Yellow Zinc (2)
SPACER, 1/2" I.D. x 3/4" O.D
SPRING, Extension
PIVOT, Idler (Weldment)
NUT, 3/8 - 16 Hex Flange Lock
BOLT, 3/8 - 16 x 1" Carriage (3)
RETAINER, 3/8" Bolt
8
73" FINISHING MOWER
