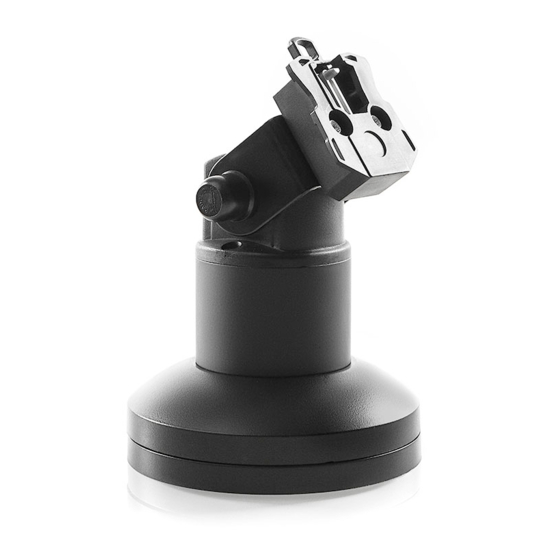

PTS-04-LANE

Installation Instructions

800.524.2744 InnovativeWorkspaces.com
PAGE 1 OF 8
© 2019 Innovative Office Products, LLC
P514988 REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTS-04-LANE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Innovative PTS-04-LANE

  • Page 1: Installation Instructions

    PTS-04-LANE Installation Instructions 800.524.2744 InnovativeWorkspaces.com PAGE 1 OF 8 © 2019 Innovative Office Products, LLC P514988 REV A...
  • Page 2: Parts List

    PTS-04-LANE Parts List T15 L-Key 1x 714904 T20 L-Key 1x 714997 T25 L-Key 1x 714899 Lane Adapter Screw 2x 714305 Lane Adapter Key 2x 114307 800.524.2744 InnovativeWorkspaces.com PAGE 2 OF 8...
  • Page 3 Mounting hardware not included. Use appropriate hardware for your mounting surface. IMPORTANT: Determine cable routing prior to installing mount. This will ensure the mount is installed in the correct orientation for your installation. Above Surface Cable Routing Locate the mount cable exit and plan your installation accordingly.
  • Page 4 ROTATION NO ROTATION Placement of the two rotation stop screws in the outter There are rotation stop ribs underneath the top portion ring determine the amount of payment terminal rotation. of the mount that can be placed directly over the rotation You can remove the screws from their original location stop screw or pin.
  • Page 5 When placing the top of the mount onto the base, ensure the rotation stop ribs fall in between the rotation stops that were set in place in Step 2. Or in a no rotation configuration, the ribs must be placed over top the rotation stop screw or pin. HOW TO RELEASE MOUNT Locate the release tab inside the mount.
  • Page 6 800.524.2744 InnovativeWorkspaces.com PAGE 6 OF 8...
  • Page 7 ADAPTER KEY The Lane adapter key (item E), needs to be inserted in the mount in order to attach and detach the payment terminal. 5a Push the adapter key down. 5b With the key pushed down, pull the key back. 5c With the key pushed back, slide payment terminal onto mount.
  • Page 8 ADJUSTMENT FEATURE To adjust the tilt friction, remove the hex nut covers and tighten or loosen the 13mm hex nut while securing the pivot screw on the inside of the mount with a 14mm wrench. Adjust both sides as needed. 14mm 13mm 800.524.2744 InnovativeWorkspaces.com...
