If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-935-2967).
14. Have machine serviced by an authorized repair SNAPPER dealer at least once a year and have the dealer install any new safety devices. 15. Use only genuine SNAPPER replacement parts assure SLOWLY maintained.

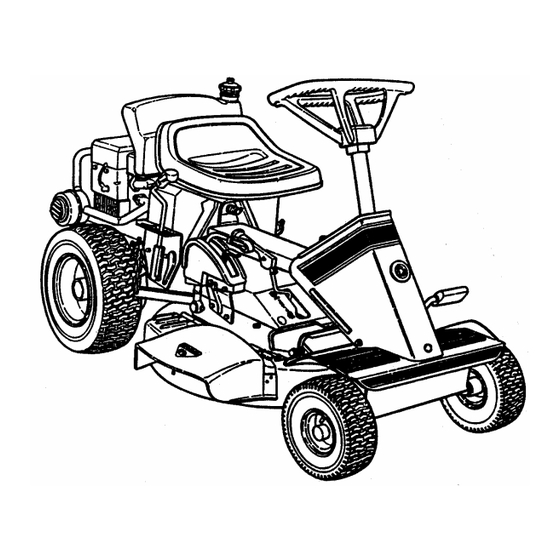

BLADE LEVER FIGURE 1.1 1.2 NOMENCLATURE The nomenclature drawing above, Figure 1.1, shows the essential parts of the SNAPPER Rear Engine Rider. It is recommended that all operator’s of this equipment become components, and operation of this machine before operating. Specific details involving the engine are found in the separate engine owner’s manual.
Section 1 – FAMILIARIZATION – DECALS / SYMBOLS SERIAL NUMBER 01015 GUARD WARNING DO NOT operate without entire Grass Catcher or Guard in place LOWEST HEIGHT OF HIGHEST HEIGHT OF EUROPEAN NOISE 23009 FUEL CAUTION 29113 WARNING ROTATING BLADE 22841 DEFLECTOR CAUTION DECAL 29839...
Page 7
Section 1 – FAMILIARIZATION – DECALS / SYMBOLS BLADE ENGAGED POSITION BLADE LEVER POSITION SYMBOLS BLADE DISENGAGED POSITION ENGINE SPEED CONTROL SYMBOLS CHOKE POSITION RABBIT “FAST” ENGINE SPEED CONTROL TURTLE “SLOW” AUTOMATIC BLADE STOP DECAL - 24072 SAFETY INSTRUCTION 35974 FAST TRANSMISSION SHIFT LEVER SYMBOLS...
Section 2 - OPERATING INSTRUCTIONS 2.1 PRE-START CHECK LIST Make the following checks and perform the service required before each start-up. 2.1.1. Check tires and add or release air as needed to bring pressure to 12 psi in front and 12 psi in rear tires.
Section 2 - OPERATING INSTRUCTIONS 2.3 STARTING & OPERATION 2.3.1. ENGINE (ELECTRIC START) IMPORTANT: When the ignition key is turned to “START”, the engine will turn over, but will not start unless the Clutch/Brake pedal is pressed all the way down, the Blade Lever is in the “Off”...
Section 2 - OPERATING INSTRUCTIONS 2.3 STARTING & OPERATION 2.3.1. ENGINE (ELECTRIC START) (Continued) 8. Should the battery be too weak to start the engine, Refer to Section “ENGINE (MANUAL START)” to manually start the electric start engines. 2.3.2. ENGINE (MANUAL START) IMPORTANT: When the ignition key is turned to “RUN”, and the recoil handle is pulled, the engine will turn over, but will not start unless the...
3 seconds, the blade brake must be adjusted. Refer to Section “BLADE BRAKE ADJUSTMENT” for adjustment procedures or return machine to an authorized SNAPPER dealer for adjustment. DO NOT CONTINUE to operate machine until blade brake is adjusted and functioning properly.
3 seconds, the blade brake must be adjusted. Refer to Section “BLADE BRAKE ADJUSTMENT” for adjustment procedures or return machine to an authorized SNAPPER dealer for adjustment. DO NOT CONTINUE to operate machine until blade brake is adjusted and functioning properly.
Section 2 - OPERATING INSTRUCTIONS 2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE 2.4.4. PARK BRAKE 1. Engage park brake by pushing clutch/brake pedal “DOWN” and moving the park brake lever to the “ON” position. While holding the park brake lever “ON”, release clutch/brake pedal to set park brake.
DO NOT operate machine if Reverse Lockout Mechanism is not functioning properly. Contact your local Snapper dealer for assistance. Reverse Lockout Mechanism Override Stop machine. Stop blade. Depress and hold Override Lever.
Rear Engine Rider. For the nearest SNAPPER dealer in your area, check the yellow pages under the heading LAWN MOWERS. For engine parts and service, look for the engine manufacturer’s dealers under the heading,...
2. The operator leaves the operator position with Blade Control “ON” and/or clutch/brake pedal is released. DO NOT operate machine if interlock system is not functioning properly. Contact your SNAPPER dealer immediately for assistance. 28” & 33” MODELS (Dual Idler System)
3. Shift lever must not go into reverse. WARNING DO NOT operate machine if Reverse Lockout Mechanism is not functioning properly. Contact your SNAPPER dealer immediately for assistance. 3.2.9. LUBRICATION – GREASE FITTINGS The following components on the Rear Engine...
If no lubricant is visible on the internal parts of the differential, add “SNAPPER Transmission” grease as needed. See Figure 3.8. IMPORTANT: Overfilling of the differential with lubricant will cause lubricant to leak onto drive components of the Rear Engine Rider.
Figure 3.9. 4. To check lubricant in chain case, remove fill/level plug and look for lubricant on the internal components of the chain case. If no lubricant is visible, add "SNAPPER Transmission” grease as needed. See Figure 3.9. CHAIN CASE FILL/LEVEL PLUG P.N.
SECTION 3 – MAINTENANCE 3.7 REMOVING FUEL TANK Before removing fuel tank from rear engine rider, move rider outdoors where fumes can be easily dissipated. Removal of the tank is accomplished from the left side of the machine by pulling the tank straight up and away from the fuel tank bracket.
However, if there is difficulty in achieving these adjustments and repairs, it is recommended that these repairs be made by an authorized SNAPPER dealer. WARNING Once blade is disengaged it should come to a stop in 3 seconds or less.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Lift quadrant in highest position gives 1-1/2” to 4” cutting height range. 4.3 REAR ENGINE RIDER DRIVE COMPONENTS Your Snapper rider is equipped with a patented smooth start clutch. The clutch should operate smoothly and provide ample traction. If problems are experienced, contact your Snapper dealer for repair.
Page 24
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. STOP engine. STOP blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Page 28
Section 4 - ADJUSTMENTS & REPAIR WARNING The electrolyte (acid) produces a highly explosive gas. Keep all sparks, flame and fire away from area when charging battery or when handling electrolyte or battery. Electrolyte (acid) is a highly corrosive liquid. Wear eye protection.
1. Fill fuel tank with fresh fuel to proper level. 2. Move choke control to “CHOKE” position. 3. Place spark plug wire onto spark plug. 4. Contact authorized SNAPPER dealer. 5. Engage park brake. 6. Turn ignition switch to the RUN position.
Page 31
PROBABLE CAUSE CORRECTIVE ACTION 1. Replace drive disc. 2. Adjust rubber drive disc. 3. Replace with SNAPPER tapered bolt & nut. 4. Contact authorized SNAPPER dealer. 5. Contact authorized SNAPPER dealer. 1. Move lever to the “ON” position. 2. Adjust or replace mower belt.
SUBJECT SERVICE TO BE PERFORMED Engine Check Oil Level Engine Initial Oil Change Engine Periodic Oil Change Air Pre-Cleaner Service Sponge Pre- Cleaner Element Air Cleaner Replace Element Spark Plug Replace Plugs Fuel Filter Replace Filter Engine Cooling Clean Shrouds & Fins System Battery Check Electrolyte...
For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
Page 38
Read, Understand, and Follow all warnings and instructions in this manual, the engine manual, and on the machine, engine and attachments. If you have any questions about your Snapper product, contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough, GA.
