Summary of Contents for Snapper E251023BVE, E281223BVE, E281323BVE, E331523KVE
Page 1
28 - 28” Cutting Deck 33 – 33” cutting Deck Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 thru 4. Remember that all power equipment can be dangerous if used improperly.
If you have any questions pertaining to your machine which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: (1-800-935-2967).
14. Exercise CAUTION when pulling loads. Limit loads to those you can safely control and attach loads to hitch plate as specified with SNAPPER attachment instructions. 15. On slopes, the weight of the towed equipment may cause loss of traction and loss of control.
14. Have machine serviced by an authorized SNAPPER dealer at least once a year and have the dealer install any new safety devices. 15. Use only genuine SNAPPER replacement parts...
Battery Removal, Replacement, Service...28-30 ACCESSORIES...30 TROUBLESHOOTING ...31-32 MAINTENANCE SCHEDULE ...33 MAINTENANCE/REPLACEMENT PARTS...34 WARRANTY...35 IMPORTANT: The figures and illustrations in this manual are provided for reference only and may differ from your specific model. Contact your Snapper dealer if you have questions...
BLADE LEVER FIGURE 1.1 1.2 NOMENCLATURE The nomenclature drawing above, Figure 1.1, shows the essential parts of the SNAPPER Rear Engine Rider. It is recommended that all operators of this equipment become components, and operation of this machine before operating. Specific details involving the engine are found in the separate engine owner’s manual.
Section 1 – FAMILIARIZATION – DECALS / SYMBOLS BLADE ENGAGED POSITION “ON” BLADE LEVER POSITION SYMBOLS BLADE DISENGAGED POSITION “OFF” ENGINE SPEED CONTROL SYMBOLS CHOKE POSITION RABBIT “FAST” ENGINE SPEED CONTROL TURTLE “SLOW” KEY SWITCH POSITION SYMBOLS GUARD WARNING 29784 DO NOT operate without entire Grass Catcher or Guard in place SERIAL NUMBER...
Page 8
Section 1 – FAMILIARIZATION – DECALS / SYMBOLS TRANSMISSION SHIFT FAST LEVER SYMBOLS MACHINE FRONT SLOW NEUTRAL REVERSE MACHINE REAR LOWEST HEIGHT OF BATTERY CAUTION DECAL - 15691 HIGHEST HEIGHT OF HEIGHT OF CUT DECAL - 46218 AUTOMATIC BLADE STOP DECAL - 24072 BATTERY STORAGE DECAL - 29948 SAFETY INSTRUCTION...
Section 2 - OPERATING INSTRUCTIONS 2.1 PRE-START CHECK LIST Make the following checks and perform the service required before each start-up. 2.1.1. Check tires and add or release air as needed to bring pressure to 12 PSI in front and 12 PSI in rear tires.
Section 2 - OPERATING INSTRUCTIONS 2.3 STARTING & OPERATION 2.3.1. ENGINE (ELECTRIC START) IMPORTANT: When the ignition key is turned to “START”, the engine will turn over, but will not start unless the Clutch/Brake pedal is pressed all the way down, the Blade Lever is in the “Off”...
Section 2 - OPERATING INSTRUCTIONS 2.3 STARTING & OPERATION 2.3.1. ENGINE (ELECTRIC START) (Continued) 8. Should the battery be too weak to start the engine, Refer to Section “ENGINE (MANUAL START)” to manually start the electric start engines. 2.3.2. ENGINE (MANUAL START) IMPORTANT: When the ignition key is turned to “ON”, and the recoil handle is pulled, the engine will turn over, but will not start unless the Clutch/Brake...
3 seconds, the blade brake must be adjusted. Refer to Section “BLADE BRAKE ADJUSTMENT” for adjustment procedures or return machine to an authorized SNAPPER dealer for adjustment. DO NOT CONTINUE to operate machine until blade brake is adjusted and functioning properly.
3 seconds, the blade brake must be adjusted. Refer to Section “BLADE BRAKE ADJUSTMENT” for adjustment procedures or return machine to an authorized SNAPPER dealer for adjustment. DO NOT CONTINUE to operate machine until blade brake is adjusted and functioning properly.
Section 2 - OPERATING INSTRUCTIONS 2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE 2.4.4. PARK BRAKE 1. Engage park brake by pushing clutch/brake pedal “DOWN” and moving the park brake latch to the “ENGAGED” position. While holding the park brake latch “ENGAGED”, release clutch/brake pedal to set park brake.
DO NOT operate machine if Reverse Lockout Mechanism is not functioning properly. Contact your local Snapper dealer for assistance. LOOK and SEE behind and down for children, pets and hazards before and while backing.
SNAPPER dealer annually for inspection and addition of any new devices, which might upgrade the safety of the Rear Engine Rider. For the nearest SNAPPER dealer in your area, check the yellow pages under the heading LAWN MOWERS. For engine parts and service, look for the engine manufacturer’s dealers...
2. If the blade continues to rotate longer than 3 seconds do not operate machine. Refer to Section “BLADE BRAKE ADJUSTMENT” or contact your SNAPPER dealer for assistance. 3.2.6. 1. Check machine brake for proper function. Engage park brake. Push machine. Rear tires should skid. Drive machine forward and apply brake.
Blade Control “ON” and/or clutch/brake pedal is released. WARNING DO NOT operate machine if interlock system is not functioning properly. Contact your SNAPPER dealer immediately for assistance. 3.2.8. REVERSE LOCKOUT MECHANISM Check function of Reverse Lockout Mechanism with engine off.
Section 3 - MAINTENANCE 3.3 SERVICE - EVERY 25 OPERATING HOURS (Continued from previous page) 3.3.2. BATTERY FLUID LEVEL 1. Remove battery. Refer to Section “BATTERY REMOVAL”. 2. Remove battery caps. Check fluid level. 3. Add water only to bring fluid to proper level – DO NOT OVERFILL.
2. To check lubricant, remove fill/level plug and visually inspect for lubricant on the internal parts of the differential. If no lubricant is visible on the internal parts of the differential, add “SNAPPER Transmission” grease as needed. See Figure 3.9. IMPORTANT: Overfilling of the differential with lubricant will cause lubricant to leak onto drive components of the Rear Engine Rider.
Rear Engine Rider should be carefully inspected every two years for wear or damage. genuine SNAPPER replacement parts available from an authorized SNAPPER dealer. 3.5.1. All bushings and pivot areas. 3.5.2. Check both front wheel king pins.
However, if there is difficulty in achieving these adjustments and repairs, it is recommended that these repairs be made by an authorized SNAPPER dealer. 4.2.1. BLADE BRAKE ADJUSTMENT The automatic Blade Brake should stop the blades...
“ON”, measures 1-1/4”. 8. Retighten hardware that secures clamp. Make sure hardware is tightened securely. IMPORTANT: The SNAPPER Rear Engine Rider Models with 33” decks do not require belt tension adjustment. But, if front frame assembly clamp is loosened for any reason, recheck belt spacing between idler pulley and belt.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING DO NOT attempt any adjustments, maintenance, service or repairs with the engine running. Stop engine. Stop blade. Engage parking brake. Remove key. Remove spark plug wire from spark plug and secure away from plug. Engine and components are HOT.
Section 4 - ADJUSTMENTS & REPAIR WARNING The electrolyte (acid) produces a highly explosive gas. Keep all sparks, flame and fire away from area when charging battery or when handling electrolyte or battery. Electrolyte (acid) is a highly corrosive liquid. Wear eye protection.
1. Fill fuel tank with fresh fuel to proper level. 2. Move choke control to “CHOKE” position. 3. Place spark plug wire onto spark plug. 4. Contact authorized SNAPPER dealer. 5. Engage park brake. 6. Turn ignition switch to the ON position.
Page 32
PROBABLE CAUSE CORRECTIVE ACTION 1. Replace drive disc. 2. Adjust rubber drive disc. 3. Replace with SNAPPER tapered bolt & nut. 4. Contact authorized SNAPPER dealer. 5. Contact authorized SNAPPER dealer. 1. Move lever to the “ON” position. 2. Adjust or replace mower belt.
SUBJECT SERVICE TO BE PERFORMED Engine Check Oil Level Engine Initial Oil Change Engine Periodic Oil Change Air Pre-Cleaner Service Sponge Pre- Cleaner Element Air Cleaner Replace Element Spark Plug Replace Plugs Fuel Filter Replace Filter Engine Cooling Clean Shrouds & Fins System Battery Check Electrolyte...
For two (2) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
Page 37
Read, Understand, and Follow all warnings and instructions in this manual, the engine manual, and on the machine, engine and attachments. If you have any questions about your Snapper product, contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough, GA.
Need help?
Do you have a question about the E251023BVE, E281223BVE, E281323BVE, E331523KVE and is the answer not in the manual?
Questions and answers

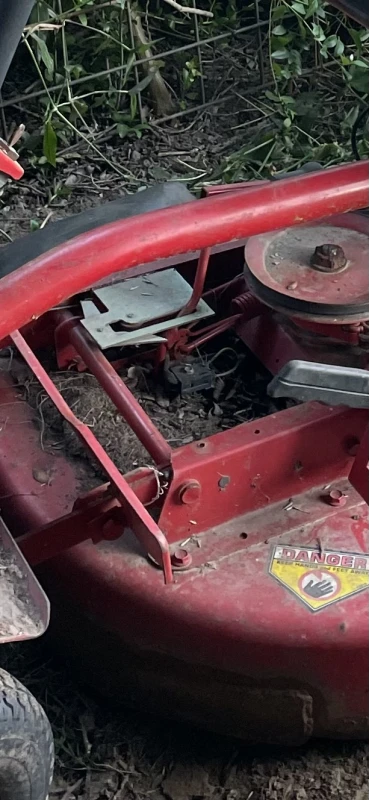

The blade pulley spins but the blade doesn’t on my snapper 28” riding mower model 281223BVE , how do I connect this.
