Installing The Recycling Plug - Snapper CP215520HV Safety Instructions & Operator's Manual

Operation (Continued)
!
WARNING
DO NOT attempt any maintenance, adjustments or service
with engine and blade running. STOP engine and blade.
Disconnect spark plug wire and secure away from spark
plug. Engine and components are HOT. Avoid serious
burns, allow sufficient time for all components to cool.
Installing the Grass Bag Adapter
(Continued)
4. Route the recoil rope around the outside of the rope
guide pulley (A, Figure 12).
Note: The recoil rope may need to be slackened. Refer to the
section entitled "Handle Assembly".
A
Figure 12: Rope guide pulley
!
WARNING
DO NOT operate without entire Grass Catcher or guard in
place. Grass Catcher components are subject to
deterioration during normal use. Inspect frequently and
replace worn or damaged components immediately.

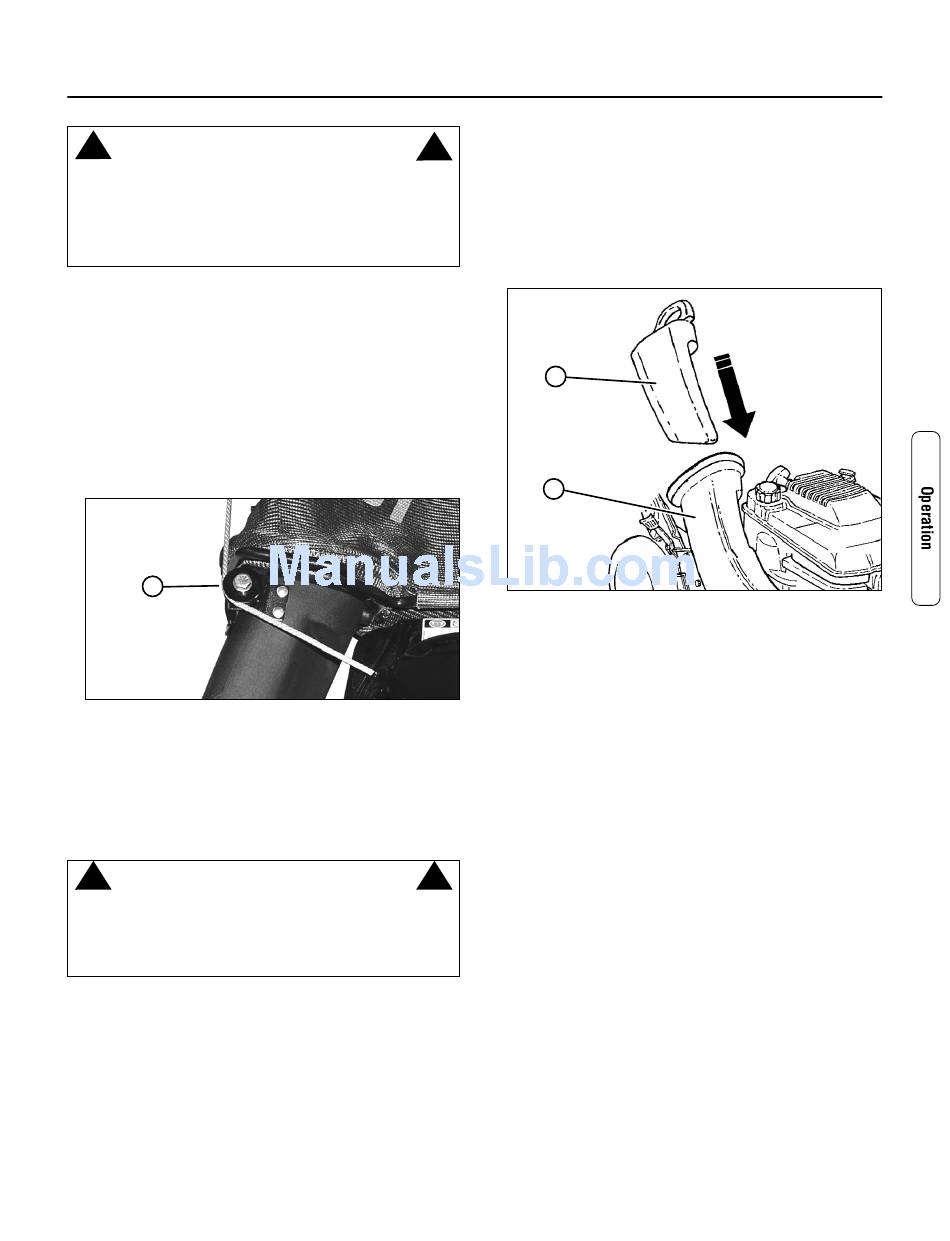

Installing the Recycling Plug

!
1. Install the recycling plug (A, Figure 13) if recycling is
desired after the bag adapter is installed. Install the
recycling plug completely and securely into the bag
adapter (B).
IMPORTANT: Install the grass bag as a safeguard.
A
B
Figure 13: Installing the recycling plug
2. Refer to the section entitled "Recycling Operation".
!
9
