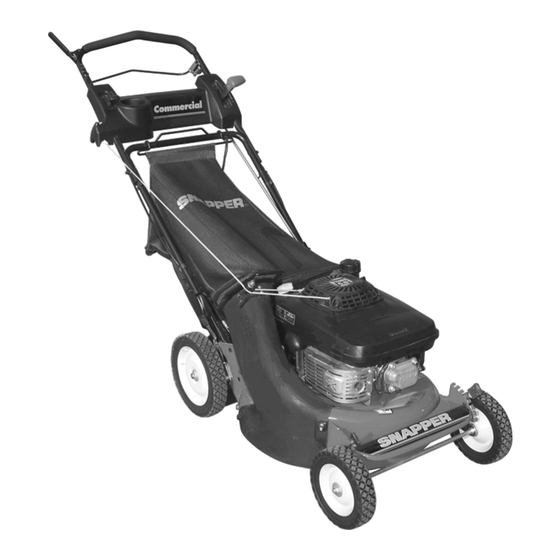

Snapper CP215519HV Parts Manual

21" steel deck walk behind commercial mowers series 19 & 20
Hide thumbs Also See for CP215519HV:

Advertisement

Table of Contents

Briggs & Stratton Yard Power Products Group
535 Macon Road
McDonough, GA, 30253 U.S.A.
800-935-2967
21" STEEL DECK WALK BEHIND
COMMERCIAL MOWERS
Revision A,
Parts Manual for
SERIES 19 & 20
5/19/2008
MODEL
CP215519HV (7800038)
CP215520HV (7800372)
CP216019KWV (7800194)
CP216019KWV (7800037)
CRP216019KWV (7800200)
CRP216019KWV (7800036)
Manual No.
7006155
TP 400-5189-A-WB-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP215519HV and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper CP215519HV

Summary of Contents for Snapper CP215519HV

  • Page 1 Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 Parts Manual for COMMERCIAL MOWERS SERIES 19 & 20 Revision A, 5/19/2008 MODEL CP215519HV (7800038) CP215520HV (7800372) CP216019KWV (7800194) CP216019KWV (7800037) CRP216019KWV (7800200) CRP216019KWV (7800036) Manual No. 7006155 TP 400-5189-A-WB-N...

  • Page 3: Table Of Contents

    PAGE GROUP HANDLES & CONTROLS - Upper End HANDLES & CONTROLS - Lower End CUTTING DECK, BLADE WHEEL BRACKETS, LATCHES WHEELS, FRONT & REAR DRIVE SYSTEM SELF-PROPELLED TRANSMISSION - DIFFERENTIAL SIDE CHUTE ADAPTER GRASS BAG & ACCESSORIES DECALS 21" STEEL DECK WALK BEHIND SERIES 19 &...
  • Page 4 Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...

  • Page 5: Handles & Controls - Upper End

    WASHER, Belleville Footnotes: 21" STEEL DECK WALK BEHIND SERIES 19 & 20 Note used on CP216019KWV & CRP216019KWV used on CP215519HV used on CP215520HV used on CP215519HV & CP215520HV was 7091100 was 7091023 or 7091511 Manual No. 7006155 TP 400-5189-A-WB-N...
  • Page 6 HANDLES & CONTROLS - Upper End Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 7 THROTTLE CONTROL, 5.5 HP, Honda (50.81” long) 7074138 THROTTLE CONTROL, 6.0 HP Kawasaki (53.25” long) 7075308 THROTTLE KNOB Footnotes: 21" STEEL DECK WALK BEHIND SERIES 19 & 20 Note used on CP215519HV & CP215520HV used on CP216019KWV & CRP216019KWV Manual No. 7006155 TP 400-5189-A-WB-N...

  • Page 8: Handles & Controls - Lower End

    HANDLES & CONTROLS - Lower End Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 9 HANDLES & CONTROLS - Lower End Item Part No Description 7033985 HANDLE, Lower LH (Adjustable) 7033986 HANDLE, Lower RH (Adjustable) 7091026 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR 5 7091601 NUT, 5/16-18 Hex Flange Lock GR 5 7046707 STRAP, Handle 7090095 NUT, 1/4-28 Hex, GR 5 7015753...

  • Page 10: Cutting Deck, Blade

    CUTTING DECK, BLADE Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 11 Kawasaki engines used on Honda engines used with 7015780 used with 7021822 used on CRP216019KWV used on CP216019KWV used on CP215519HV & CP215520HV used on CP215520HV model used on CP215520HV model used on CP215519HV used on CP215520HV model Manual No.

  • Page 12: Wheel Brackets, Latches

    WHEEL BRACKETS, LATCHES Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 13 WHEEL BRACKETS, LATCHES Item Part No Description 7051886 ASSEMBLY, Right Wheel Arm 7051885 ASSEMBLY, Left Wheel Arm 7015761 BOLT, 5/16-18 x 3/4” Hex Washer Face Shoulder 7012325 LATCH, Height 7100633 GRIP, Height Latch 7031017 WHEEL ARM, R.H. Front (Round Hole) 7031016 WHEEL ARM, L.H.

  • Page 14: Wheels, Front & Rear

    WHEELS, FRONT & REAR Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 15 WHEELS, FRONT & REAR Item Part No Description 7035726 WHEEL, Rear 10.0 x 1.75 Diamond Grey 7035727 WHEEL, Front 8.0 x 1.75 Diamond Black 7031121 HUB-CAP (Front Wheels) 7031960 HUB-CAP (Rear Wheels) 7090377 NUT, 7/16-20 Hex Center Lock Jam 7031961 WASHER, 7/16”...

  • Page 16: Drive System Self-Propelled

    DRIVE SYSTEM SELF-PROPELLED Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 17 DRIVE SYSTEM SELF-PROPELLED Item Part No Description 7012354 BELT, Poly-V 7011724 WASHER, 44 x .78 x .025 Curved 7051913 ASSEMBLY, Clutch Idler (incl. items 3 thru 6) 7034179 LINK, Differential 7090391 WASHER, 5/16” Internal Tooth Lock 7091542 SCREW, 5/16-18 x 1/2” Pan Head Self-Tap (Torx) 7500154 ASSEMBLY, Idler Arm, Bushing &...
  • Page 18 DRIVE SYSTEM SELF-PROPELLED Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 19 DRIVE SYSTEM SELF-PROPELLED Item Part No Description 7031013 PLATE, Ring Retaining 7090913 SCREW, #10-24 x 1/2” Self-Tap Machine 7072284 SHAFT, Hex (3/8-24 thread, one end) 7019383 PULLEY, Poly-V (2.00” O. D.) 7046784 BELT, Engine Drive (Stretch) 7073528 ASSEMBLY, Steel Drive Disc 7017696 BUSHING, Powdered Metal 7011791...

  • Page 20: Transmission - Differential

    TRANSMISSION - DIFFERENTIAL Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 21 TRANSMISSION - DIFFERENTIAL Item Part No Description 7053943 ASSEMBLY, Transmission (Incl. items 1 thru 30) 7092062 NUT, 5/16-18 Hex Lock 7092063 WASHER, Cone 7019213 PULLEY, Poly-V Belt (3.5 O.D.) 7091720 WASHER, Spring 7053942 ASSEMBLY, Right Housing (Incl. items 6, 7, 8, 9, 10 & 30) 7029034 HOUSING, Right Side 7014155...

  • Page 22: Side Chute Adapter

    SIDE CHUTE ADAPTER Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 23 SIDE CHUTE ADAPTER Item Part No Description 7047081 ADAPTER, Grass Bag 7042965 CHUTE, 21” Side 7029149 COVER, 21” Deck 7091508 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 7011791 RETAINER, 5/16” Bolt 7024340 SPACER, .316 I.D. x .375 O.D. x .310 thick 7090951 NUT, 5/16-18 Hex Large Flange Center Lock 7090189...

  • Page 24: Grass Bag & Accessories

    GRASS BAG & ACCESSORIES Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...
  • Page 25 KIT, Thatcherizer (other accesseries not shown) Footnotes: 21" STEEL DECK WALK BEHIND SERIES 19 & 20 Note Includes items 1 through 4 CP215519HV, CP215520HV & CP216019KWV used on CP215519HV & CP215520HV or 7091508 for 4HP & above engines Manual No. 7006155 TP 400-5189-A-WB-N...
  • Page 26 DECALS Manual No. 7006155 21" STEEL DECK WALK BEHIND TP 400-5189-A-WB-N SERIES 19 & 20...

  • Page 27: Decals

    DECALS Item Part No Description 7100181 DECAL, Commercial, Control Panel 7100185 DECAL, SNAPPER, Steel Decks 7100398 DECAL, Hi Vac, Cutting Deck 7100410 DECAL, Ninja, Mulching System 7072921 DECAL, Warning (Deck) 7029782 DECAL, OPC Bail (International Symbol) 7046720 DECAL, Chute/Deflector 7013010...
  • Page 30 IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 www.snapper.com Copyright © 2008 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved Manual No. 7006155...
