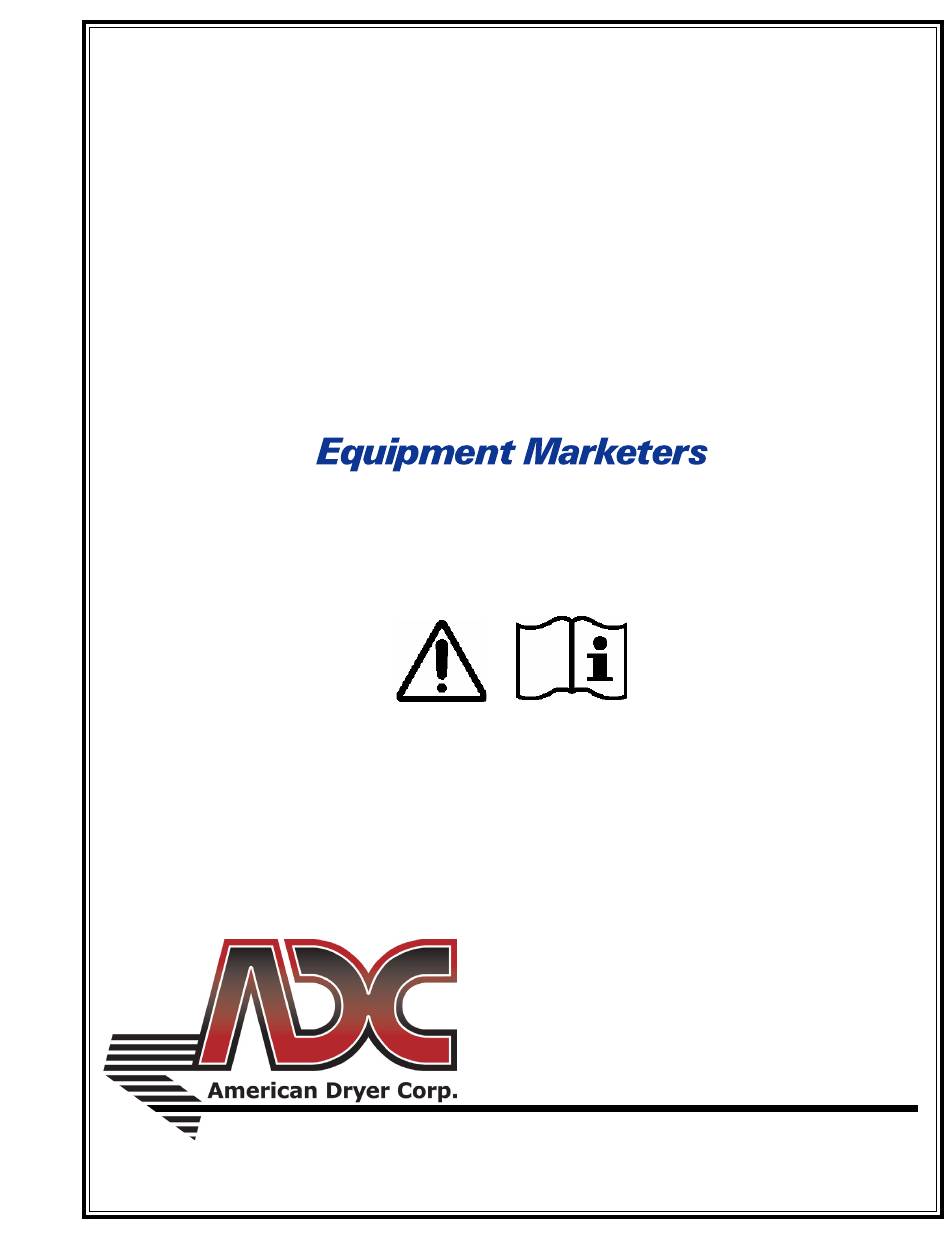

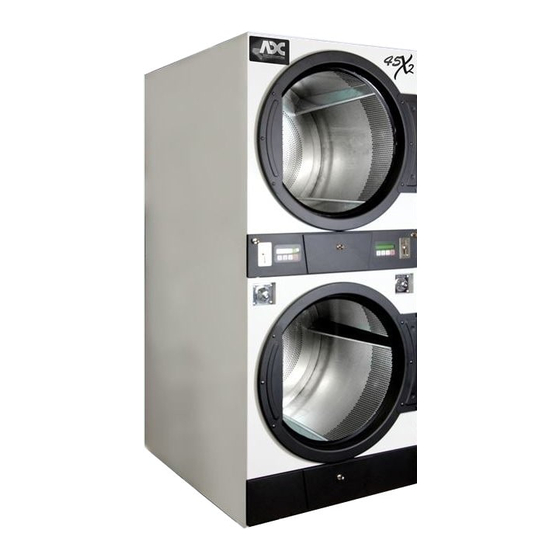

Tumble Dryer
AD-30x2 / AD-45x2
AD-30x2R / AD-45x2R
AD-30x2Ri / AD-45x2Ri
EN – Installation/Operator Manual
For more information and pricing, contact:
Phone 800.223.1376
www.equipmentmarketers.net
100 Melrose Avenue
info@eqpmark.com
Cherry Hill, NJ 08003
GB, IE
To avoid errors and damage to the dryer,
please read these instructions carefully
before attempting to install or operate
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447
e-mail: techsupport@amdry.com
www.adclaundry.com
ADC Part No. 113574 -4
Advertisement
Table of Contents
Related Manuals for American Dryer Corp. AD-30x2
Summary of Contents for American Dryer Corp. AD-30x2
- Page 1 Tumble Dryer AD-30x2 / AD-45x2 AD-30x2R / AD-45x2R AD-30x2Ri / AD-45x2Ri EN – Installation/Operator Manual For more information and pricing, contact: Phone 800.223.1376 www.equipmentmarketers.net 100 Melrose Avenue info@eqpmark.com Cherry Hill, NJ 08003 GB, IE To avoid errors and damage to the dryer,...
-
Page 2: Table Of Contents
Safety Precautions ______________ Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this appliance. Only qualified personnel should install, service, A qualified technician must be called if any high-limit thermostat or adjust this equipment. trips to investigate, and resolve, the issue. -
Page 3: Technical Specifications
Technical Specifications AD-30x2 AD-45x2 Maximum Capacity (Dry Weight) per pocket 13.6 20.4 Tumbler Volume per pocket liters 311.5 413.4 Tumbler (Diameter x Depth) 76.2 x 68.5 83.2 x 76.2 Door Opening (Diameter) 54.6 68.6 Airflow (50Hz) per pocket 10.6 12.5 Heat Rate (Gas) per pocket 21.1... -
Page 4: Installation Procedures
Installation Procedures __________________ Clearance to nearest obstacle Location Requirements Open door: AD-30x2: 76 cm, AD-45x2: 82.6 cm 2.5 cm The temperature of the installation location must remain between 4° C and 55° C. 2.5 cm The dryer must not be installed or stored in an area where it 1.5 mm... - Page 5 Single Dryer Venting (50Hz) Multiple Dryer Venting AD-30x2 AD-45x2 A (mm) B (mm) Multiple Dryer Venting - Through an End Wall C (mm) D (mm) E (mm) AD-30x2 AD-30x2 AD-45x2 F (mm) L1+L2 (m) A (m) Multiple Dryer Venting - Through Roof or Rear Wall...
-
Page 6: Electrical Information (50Hz)
An external means of power removal (disconnect device) must Electrical Specifications (50Hz) be provided. Each dryer should be connected to a properly sized, and Electric Service AD-30x2 AD-45x2 independently protected, branch circuit. POCKETS WIRED INDEPENDENTLY The electric supply must match exactly what is specified on the dryer’s rating plate (data badge). - Page 7 Pockets Wired Independently Pockets Wired Together 113574 - 4 www.adclaundry.com...
-
Page 8: Gas Information
Gas Information _________________ CE Approved Gas Types Gas installation should be performed by qualified Family personnel in accordance with national and local safety regulations. AT, BG, CH, CZ, DK, EE, ES, Before installation, check that the local distribution conditions, (20) FI, GB, GR, HR, IE, IT, LT, LV, NO, PT, RO, SE, SI, SK, TR nature of gas and pressure, and the adjustment of the... -
Page 9: Gas Type Conversion
AU and NZ Gas Specifications * ADG-30x2 * ADG-45x2 Gas Characteristics 1 Injector 3 Injectors Supply Burner Injector Burner Injector Pressure Pressure Rate Size Pressure Rate Size Gas Type 1.7-3.2 0.87 2.039 4.089 0.87 2.657 2.705 2.75 2.50 0.604 2.438 2.50 0.787 1.613... -
Page 10: Burner Pressure Measure And Adjust
Start-Up ___________________________________ Burner Pressure Measure and Adjust (Refer to figure) Check: 1. Discontinue electrical power to the dryer. • All shutoff valves should be open. 2. Turn the gas valve’s switch (H) to “OFF” position. • All back panels (guards) should be in position. 3. -
Page 11: Routine Maintenance
Routine Maintenance _____________________ Data Label Information ___________________ A schedule should be established for the periodic inspection, When contacting ADC, certain information is required to ensure cleaning, and lint removal. The frequency of cleaning can best proper service/parts information from ADC. This information is be determined from experience at each location. -
Page 12: Warranty Information
Warranty Information _____________________ This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will For any warranty-related issues, please contact our Warranty provide many years of safe, efficient, and trouble-free operation. Department at +1 (508) 678-9000. We have tried to make this manual as complete as possible If you need a copy of the warranty covering your dryer please and hope that you will find it useful.
