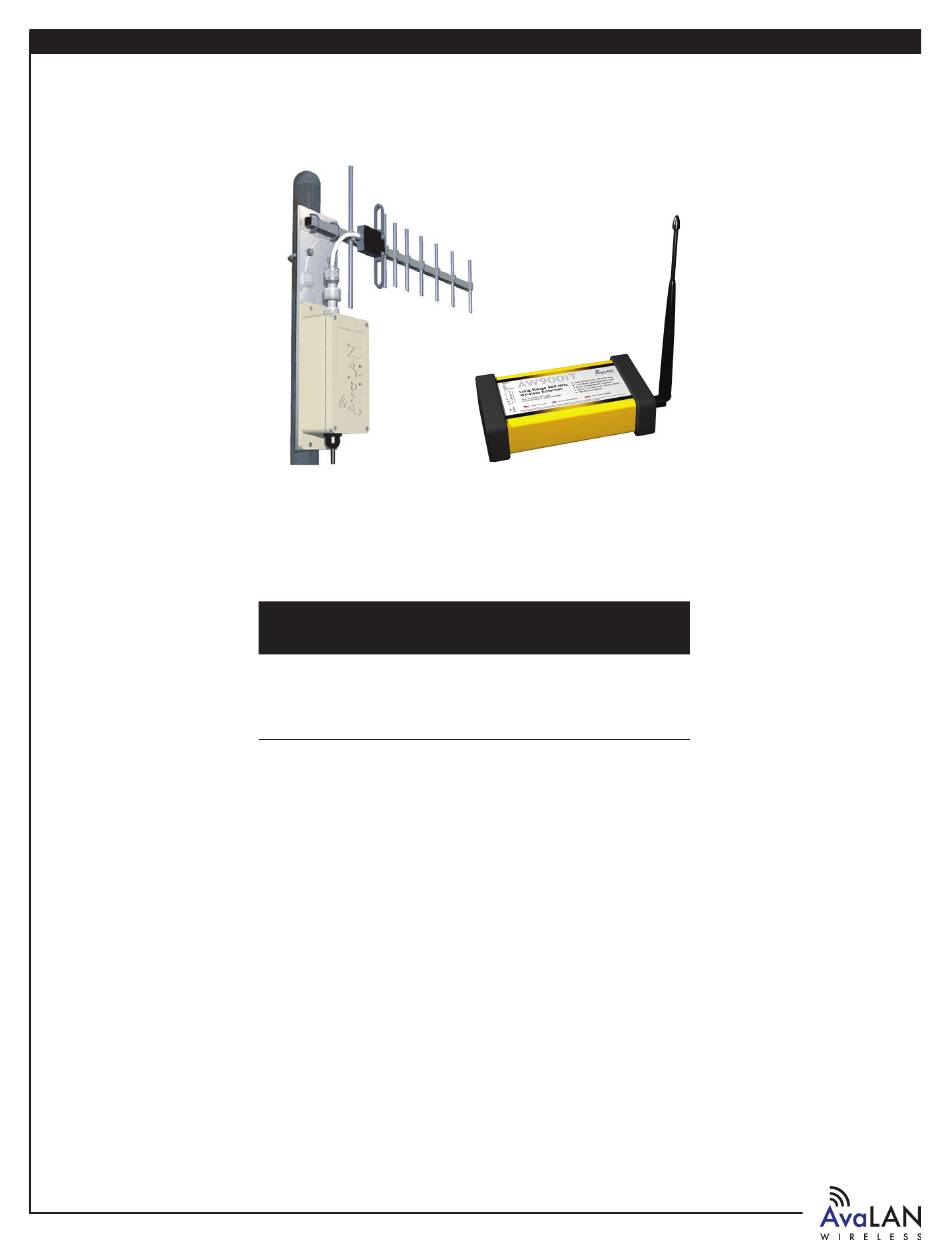

- Page 1 AW900T User’s ManUal Point-to-multipoint Industrial-grade, ultra-long-range 900 MHz non-line-of-sight wireless Ethernet systems...
-
Page 2: Non-Line-Of-Sight
AW11 or AW15 antennae. The SU does not have its own MAC/IP address. AvaLAN radios use electronic network keys that allow the user to group radios together to form a network. Network keys are shared between radios by connecting an Ethernet cable between the RJ45 ports while the radios are in “key exchange mode”... -
Page 3: Advanced Operation
SUs have been attached, the AP must be power cycled. The AP will boot up and will enter normal operation after 5 seconds of “key exchange mode.” Advanced operation Please call AvaLAN technical support at (650) 384-0000 if the system topology requires: — More than 16 subscriber units per access point for roaming/mobility applications —... -
Page 4: Led Display
User’s Manual LED display Initial setup 1) Select the radio that will operate as the access point (AP) and set DIP switch 1 ON to enable AP operation. 2) Plug in the access point. — The LINK QUALITY LEDs will blink sequentially showing that the radio is hunting for a subscriber unit (SU) to share keys with. -
Page 5: Dip Settings
User’s Manual aW900T To add NEW subscriber units to the access point 1) Disconnect the AP from the network and disconnect power from the AP . 2) Connect an Ethernet cable from the AP to the SU (key exchange will not work through a switch or hub — crossover cables are not required). -
Page 6: Technical Specifications
User’s Manual 900 channel table Technical specifications CHaraCTerIsTIC sPeCIFICaTIOn / DesCrIPTIOn rF transmission rate 1.536 Mb/s ethernet throughput 935 Kb/s Output power +21 dBm (4 Watts EIRP used with 15 dBi antennae) receive sensitivity -97 dBm at 10e-4 BER (-112 dBm with 15 dBi antennae) -
Page 7: Limited Warranty
This product is warranted to the original purchaser for normal use for a period of 360 days from the date of purchase. If a defect covered under this warranty occurs, AvaLAN will repair or replace the defective part, at its option, at no cost. This warranty does not cover defects resulting from misuse or modification of the product. - Page 8 ©2004 — 2007 AvaLAN Wireless Systems Incorporated. All rights reserved. AvaLAN Wireless and the AvaLAN Wireless logo are registered trademarks of AvaLAN Wireless Systems Incorporated. All other trademarks are property of their respective owners. AvaLAN Wireless makes no representations or warranties with respect to the accuracy, utility, or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any time without notice.
