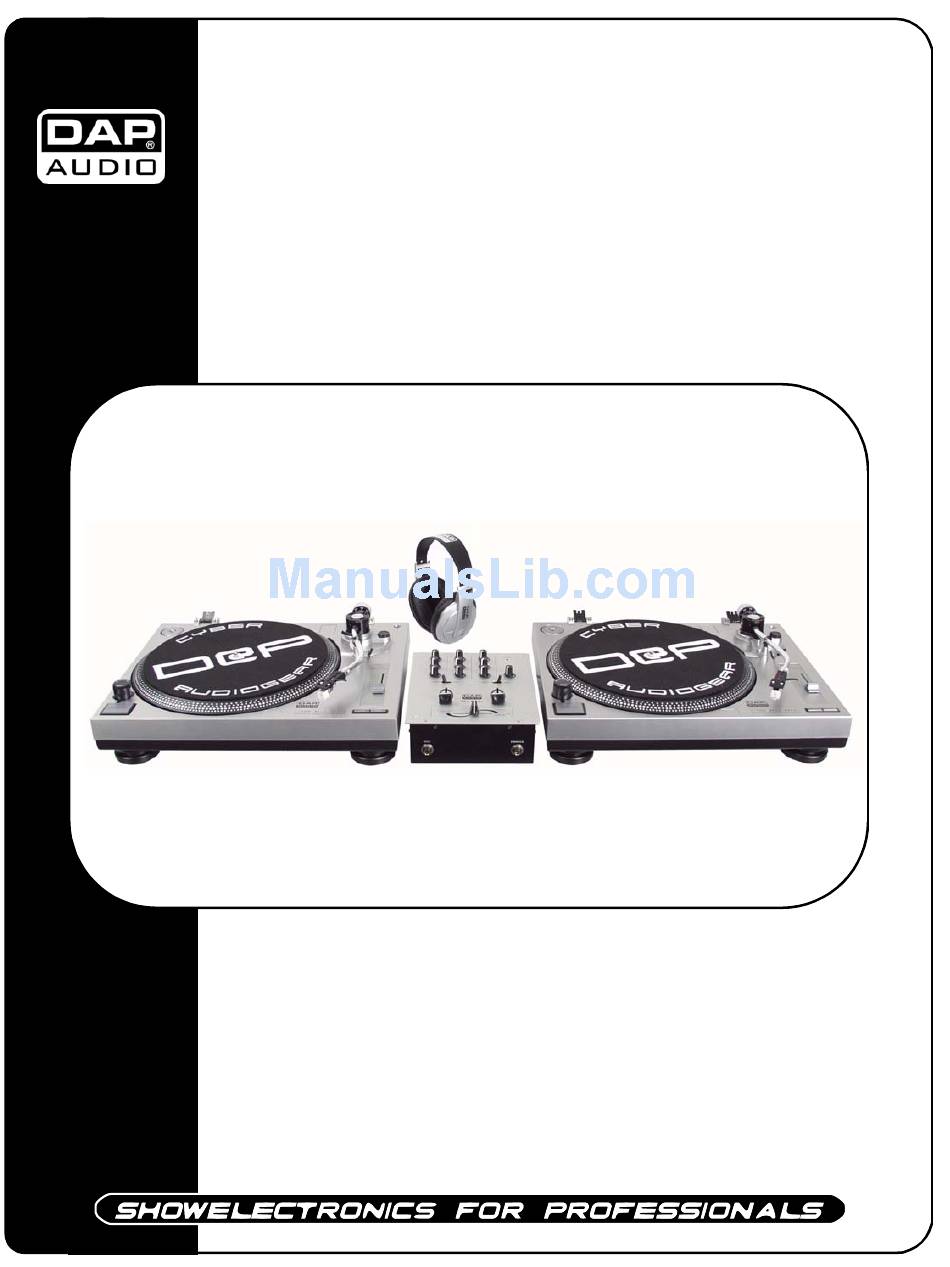

- Page 1 DJ SET ORDERCODE D1210...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio DJ Set brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
DAP Audio DAP Audio DJ Set Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Turntable T-500 Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview Back side..…………………………………………………………………………………….…… Installation..............……………………………..………………………… Set Up and Operation..............……..…………………………….…… Maintenance………......…........………..………….…….………….….. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….…………………. Set Mixer Description..…................……….………………………………… Features………………………………………………………………………………….………………….…. Overview Back side..…………………………………………………………………………………….…… Installation..............……………………………..………………………… Set Up and Operation..............……..…………………………….…… Maintenance………......…........………..………….…….………….….. Troubleshooting………......…........………..………….…….………….….. Product Specifications..............……………….…….…………………. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
• Make sure that the signals into the mixer are balanced, otherwise hum could be created. • Make sure you use DI boxes to balance unbalanced signals; All incoming signals should be clear. • Make sure that the available voltage is not higher than stated on the rear panel. •... -
Page 6: Description
Description of the device Features The DJ Set is a professional plug and play DJ Set containing: • 2x belt driven turntables T-500 with pitch control, quick start/stop, strong motor and belt brake • 1x DJ mixer with user replaceable crossfader, 2 phono, 2 line, 1 microphone input, gain, treble and Bass controls on channels •... -
Page 7: Overview Back Side
TURNTABLE DESCRIPTION REAR PANEL: Fig. 2 18. Right RCA output jack (red) 19. Left RCA output jack (white) 20. Ground (GND) -
Page 8: Installation
Installation Remove all packing materials from the Turntable. Check that all foam and plastic padding is removed. Before use, check for the following parts included in the package with the main unit :Turntable Platter, Slip mat, Dust Cover, 45-rpm adapter, Counterweight, Headshell. VERY IMPORTANT!! - Do not forget to attach the rubber belt to the motor for correct operation. -
Page 9: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Install this device on a flat surface. Cartridge may pick up slight sound pressure or vibrations from the speakers coming along the floor or though the air resulting in feedback or “howling”... -
Page 10: Maintenance
Maintenance The Turntable T-500 requires almost no maintenance. However, you should keep the unit clean. 1. Disconnect the mains power supply. 2. Clean the stylus periodically with a soft brush to prevent the accumulation of dust. 3. When sound becomes distorted or noisy, check the stylus. If the stylus is worn out, replace it with a new one. -
Page 11: Product Specifications
Product Specification Model: Dap Audio Turntable T-500 Voltage: 230V-50Hz (CE) Power consumption: 8W Dimensions 450x350x145mm (LxWxH) Weight: 4,25 kg Design and product specifications are subject to change without prior notice. -
Page 12: Description
Description of the device Features The DJ Set is a professional plug and play DJ Set containing: • 2x belt driven turntables T-500 with pitch control, quick start/stop, strong motor and belt brake • 1x DJ mixer with user replaceable crossfader, 2 phono, 2 line, 1 microphone input, gain, treble and Bass controls on channels, powerful stereo headphone output, selectable fader cueing, High-end performance audio signal •... -
Page 13: Overview Back Side
1. Channel fader - Controls the individual source levels in the mix. 2. Input toggle switch - Selects which source will be active, depending on what you have connected to the rear panel input section. 3. Treble and Bass EQ - Adjusts the high and low frequency levels of the input channels for good sound. 4. -
Page 14: Installation
Installation Remove all packing materials from the Set Mixer. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 15: Maintenance
Maintenance The Set Mixer requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power. -
Page 16: Product Specifications
Product Specification Model: Dap Audio Set Mixer Voltage: AC 9V, 500mA Dimensions 236x192x82mm (LxWxH) Weight: 2,8 kg Design and product specifications are subject to change without prior notice. -
Page 17: Description
Description of the device Features The DJ Set is a professional plug and play DJ Set containing: • 2x belt driven turntables T-500 with pitch control, quick start/stop, strong motor and belt brake • 1x DJ mixer with user replaceable crossfader, 2 phono, 2 line, 1 microphone input, gain, treble and Bass controls on channels, powerful stereo headphone output, selectable fader cueing, High-end performance audio signal •... - Page 18 2003 Dap Audio.
