Summary of Contents for DAPAudio DS-CM-4

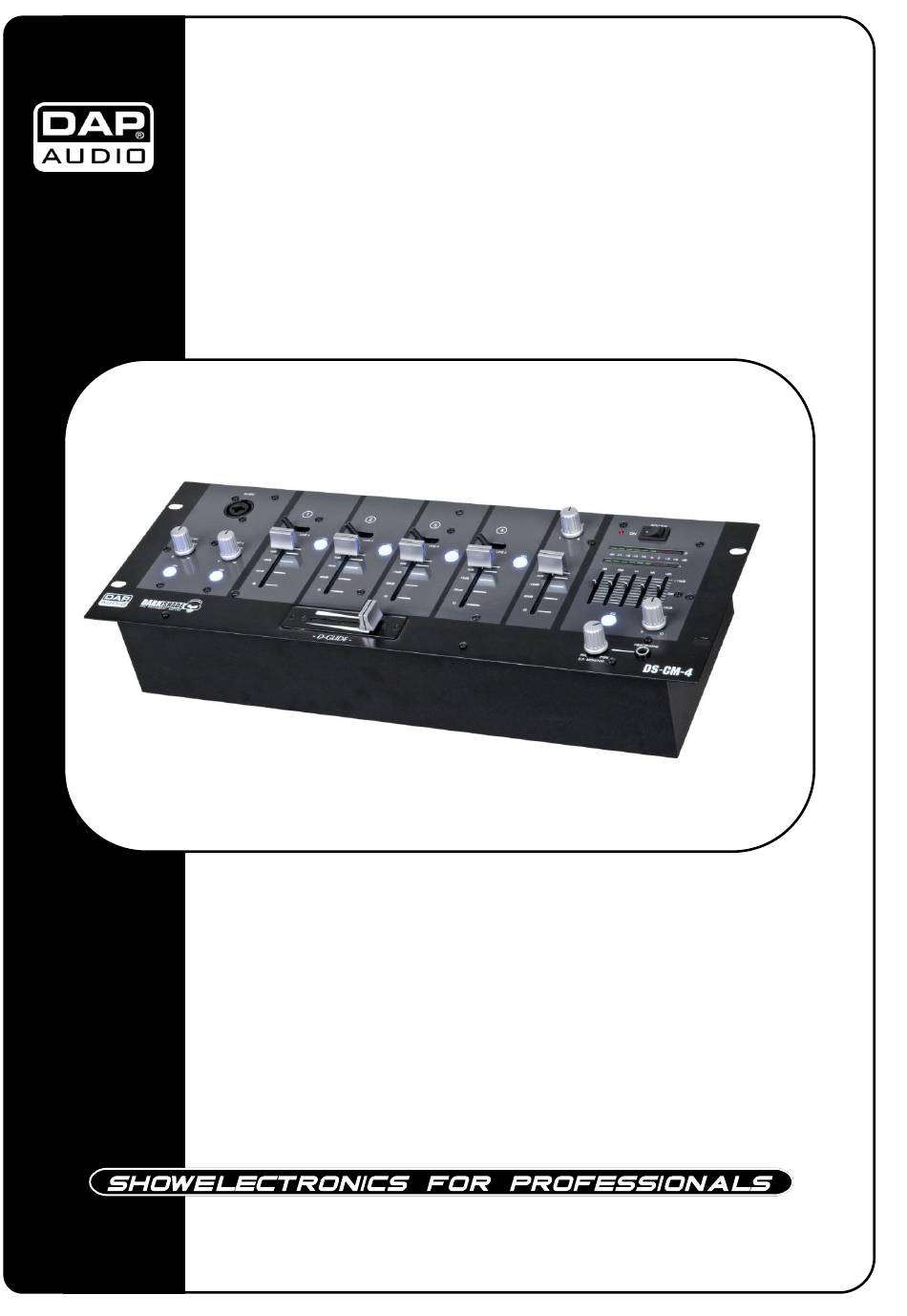

- Page 1 DS-CM-4 ORDERCODE D2180...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio DS-CM-4 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio DS-CM-40™ Product Guide Warning..................................Unpacking Instructions............................Return Procedure..............................Safety-instructions..............................Operating Determinations........................... Description.................................. Overview................................Frontside................................. Backside................................. Installation................................... Functions..................................Set Up and Operation..............................Maintenance................................Replacing a fuse................................ Replacing the crossfader............................Troubleshooting................................Product Specifications............................... -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Safety-Instructions
WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 6: Operating Determinations
Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch. -
Page 7: Description
Description of the device Features Multifunctional Entertainment Mixer. • 10 inputs • 3 outputs • 50 mm faders • Cross faders • Master output with equalizer Overview Front Fig. 1 1) Mic Input Balanced 10) Master Volume Fader 2) Mic Channel ON/OFF 11) Power ON LED 3) Mic Channel volume 12) Power Switch... -
Page 8: Backside
33) Mic 2 Jack Unbalanced Input 26) Master RCA Unbalanced Out Installation Remove all packing materials from the DS-CM-4. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. - Page 9 It is a 6,3mm/ 1/4” TRS socket, wired as Tip=left, Ring=right and sleeve = ground. Caution: Depending on the type of headphones connected to the Headphones jack, the ds-cm-4 is capable of producing high output levels via the phones output. Therefore, make sure to turn the control all the way to the left (minimum setting) before connecting the headphones.
- Page 10 19. Record RCA Unbalanced Out Use these to connect a recording device. 20. Channel 4 L1 RCA Input Use to connect a line level device. 21. Channel 3 CD/PHONO Selector Used to set the input level for the PH/L1 Input (29) to either phono or line level. 22.
-
Page 11: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 12: Maintenance
Compensation of interference with balanced connections Maintenance DAP Audio-CD-Player DS-CM-40 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 13: Replacing The Crossfader
Replacing the crossfader 1. Unscrew the fader(B) screws. Do not touch the innerscrews(C). Carefully remove the old crossfader and unplug the cable.(D) 2. Plug in the new Crossfader, attach the cable (D)and place the new Crossfader back in the mixer. 3. -
Page 14: Product Specifications
Product Specification Model: Dap Audio DS-CM-40 Power: 230V-50/60Hz Fuse: T250mA Light: BNC 12V max. 5W Weight: 3,4kg Dimensions: 480 x 178 x 82mm (LxWxD) Input sensitivity mic: 3mV/ 1kΩ line: 3mV/ 47kΩ phono: 150mV/ 100kΩ aux: 150mV/ 100kΩ Output level master: 775mV/ 600Ω... - Page 15 2009 Dap Audio.
