Summary of Contents for DAPAudio DS-CM-6

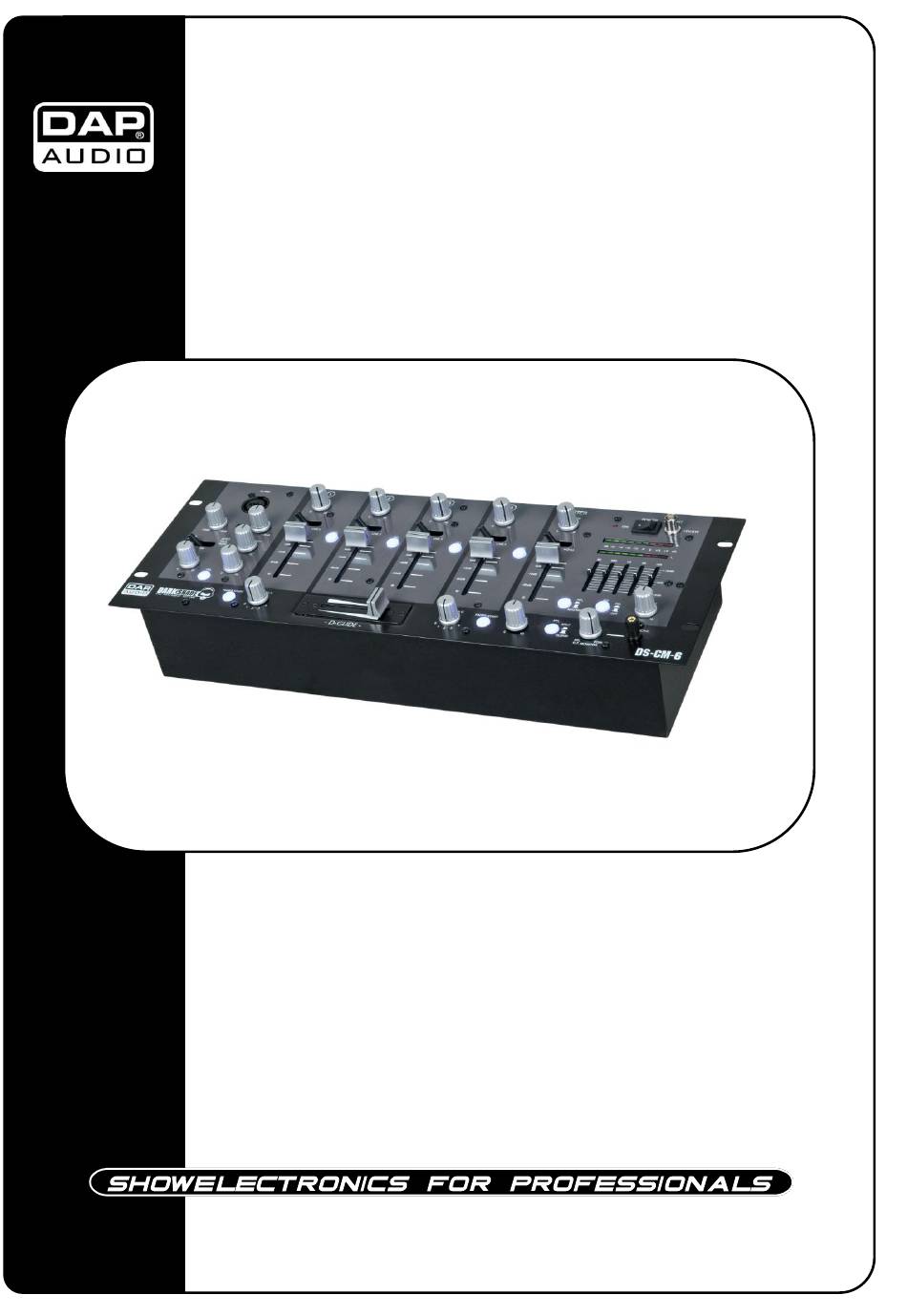

- Page 1 DS-CM-6 ORDERCODE D2181...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. DAP Audio DS-CM-6 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
Dap Audio Dap Audio DS-CM-6™ Product Guide Warning..................................Unpacking Instructions............................Return Procedure..............................Safety-instructions..............................Operating Determinations........................... Description.................................. Overview................................Frontside................................. Backside................................. Installation................................... Functions..................................Set Up and Operation..............................Maintenance................................Replacing a fuse................................ Replacing the crossfader............................Troubleshooting................................Product Specifications............................... -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP DS-CM-6 • IEC power cable • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. -
Page 5: Safety-Instructions
WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 6: Operating Determinations
Make sure that the available voltage is not higher than stated on the rear panel. Make sure that the power-cord is never crimped or damaged. Check the system and the power- cord from time to time. Please turn off the power switch, when changing the power cord or signal cable, or select the input mode switch. -
Page 7: Description
Description of the device Features Multifunctional Entertainment Mixer. • 10 inputs • 3 outputs • 50 mm faders • Cross faders • Master output with equalizer Overview Front Fig. 1 1) Talkover Switch 18) Fader Start B 2) Sensitivity 19) Master Volume Fader 3) High 20) Stereo/ Mono Switch 4) Mic Input Balanced Input... -
Page 8: Backside
43) Booth RCA Out 53) Mic 2 Jack Unbalanced Input Installation Remove all packing materials from the DS-CM-6. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. - Page 9 PFL bus. 11. Gain Use this control to match the connected devices optimally to your DS-CM-6. The fader set to 0dB. Adjust the gain with a loud input signal in such a way that the overload led does not light.
- Page 10 It is a 6,3mm/ 1/4” TRS socket, wired as Tip=left, Ring=right and sleeve = ground. Caution: Depending on the type of headphones connected to the Headphones jack, the DS-CM-6 is capable of producing high output levels via the phones output. Therefore, make sure to turn the control all the way to the left (minimum setting) before connecting the headphones.
- Page 11 34. Fader Start B 1/4” jack for remote fader start. 35. Fader Start A 1/4” jack for remote fader start. 36. Channel 3 CD/PHONO Selector Used to set the input level for the PHL1 Input (48) to either phono or line level. 37.
-
Page 12: Set Up And Operation
Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. -
Page 13: Maintenance
Compensation of interference with balanced connections Maintenance DAP Audio-CD-Player DS-CM-6 requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 14: Replacing The Crossfader
Fig. 3 Troubleshooting DAP Audio-CD-Player DS-CM-6 This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. -
Page 15: Product Specifications
Product Specification Model: Dap Audio DS-CM-6 Power: 230V-50/60Hz Fuse: T250mA Light: BNC 12V max. 5W Weight: 3,4kg Dimensions: 480 x 178 x 82mm (LxWxD) Input sensitivity mic: 3mV/ 1kΩ line: 3mV/ 47kΩ phono: 150mV/ 100kΩ aux: 150mV/ 100kΩ Output level master: 775mV/ 600Ω... - Page 16 2009 Dap Audio.
