DAPAudio IMIX-6.2 Install Mixer 2U User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

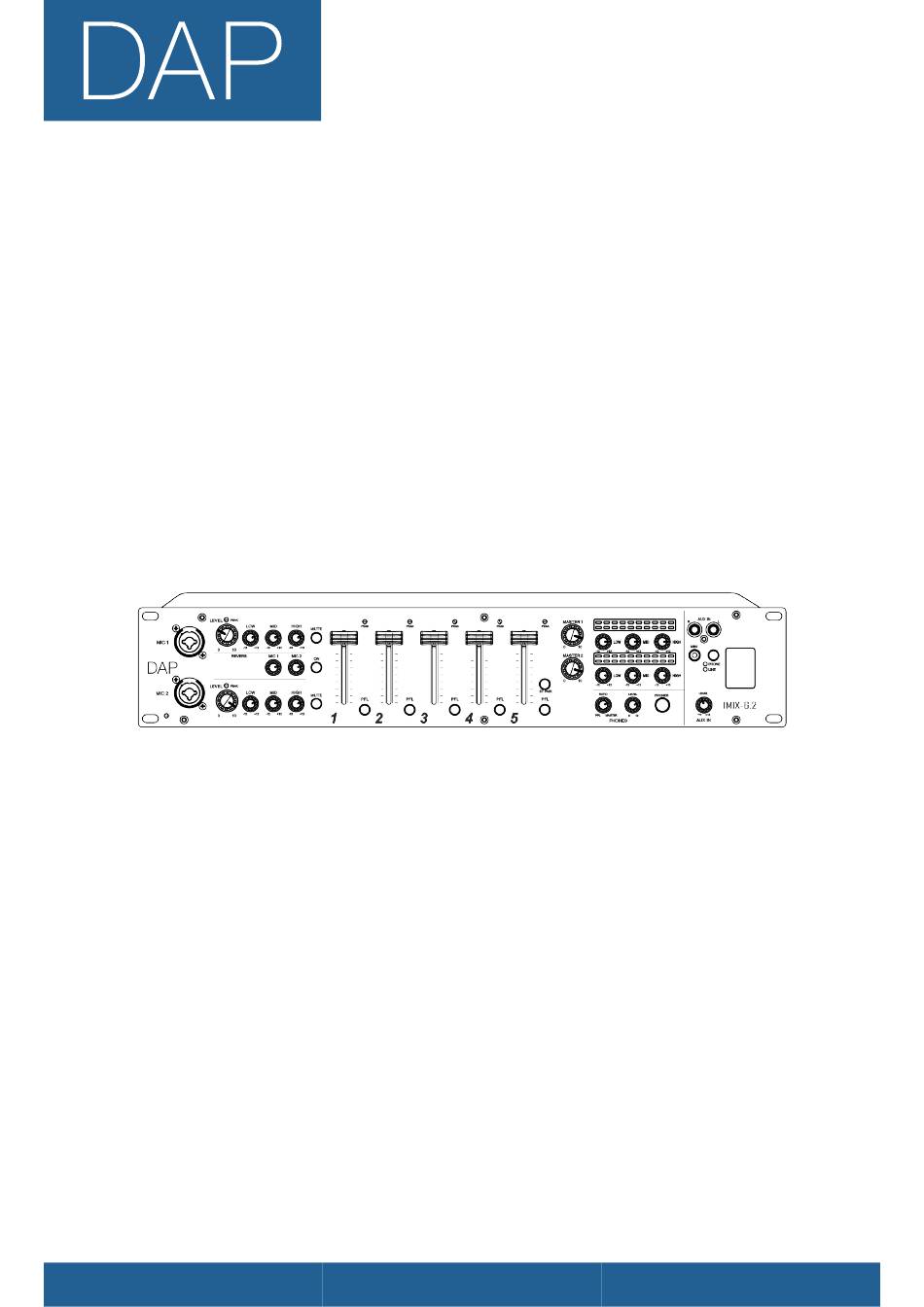

USER MANUAL
ENGLISH
V1.0
IMIX-6.2 Install Mixer 2U
Product code: D2354
c
c
c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMIX-6.2 Install Mixer 2U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAPAudio IMIX-6.2 Install Mixer 2U

Summary of Contents for DAPAudio IMIX-6.2 Install Mixer 2U

  • Page 1 USER MANUAL ENGLISH V1.0 IMIX-6.2 Install Mixer 2U Product code: D2354...
  • Page 2 IMIX-6.2 Install Mixer 2U Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.

  • Page 3: Table Of Contents

    IMIX-6.2 Install Mixer 2U Table of contents 1. Introduction ............................

  • Page 4: Introduction

    After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: • • DAP IMIX-6.2 Install Mixer 2U • • Power adapter + cable (1,9 m) • •...

  • Page 5: Symbols And Signal Words

    IMIX-6.2 Install Mixer 2U 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury.

  • Page 6: Safety

    IMIX-6.2 Install Mixer 2U Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1.

  • Page 7: Requirements For The User

    IMIX-6.2 Install Mixer 2U Attention General safety   • • Do not shake the device. Avoid brute force when installing or operating the device. • • If the device is dropped or struck, disconnect the device from the electrical power supply immediately.

  • Page 8: Description Of The Device

    Description of the Device The DAP IMIX-6.2 Install Mixer 2U is a compact installation mixer. It can be installed in a standard 19-inch rack. For optimal use, there are inputs, outputs and controls on the front and back of the device.

  • Page 9: Product Specifications

    IMIX-6.2 Install Mixer 2U 3.3. Product Specifications Model: IMIX-6.2 Install Mixer 2U Inputs: Mono Inputs 2  Mono Input Connector 3-pin XLR / TS unbalanced 6.3 mm  Mono Input Gain Range 10 dB Stereo Inputs 3  Stereo Input Connector RCA  Outputs: Main Outputs 2 ...

  • Page 10: Dimensions

    IMIX-6.2 Install Mixer 2U Rack Units 2 U Housing Metal  Colour Black  Weight 2,35 kg IP Rating IP20 (indoor use only)  Product Properties: LED Indicators BT Pairing / Limit / Mute / Output level / PFL  Thermal Specifications: Maximum Ambient Temperature 40 °C Minimum Ambient Temperature -10 °C...

  • Page 11: Installation And Setup

    Rack mounting The IMIX-6.2 Install Mixer 2U can be mounted in a standard 19-inch rack. The device requires 2 rack units (U) of space, which is 88.9 mm high. Make sure that the rack is sufficiently secured to prevent it from becoming unstable or falling over.

  • Page 12: Operation

    5.2. Switching ON/OFF The IMIX-6.2 Install Mixer 2U has a power switch (N). Make sure that all of the inputs and outputs are connected before turning the power on. To switch the device on: Press the power switch (N) down on the left hand side.

  • Page 13: Mic Control Section

    IMIX-6.2 Install Mixer 2U Both inputs are electronically balanced with extremely low noise and hum and are suitable for connecting low- impedance microphones. Each input has its own dedicated controls: mic 1 control section (B) (see 5.3.2. Mic Control Section on page 12), mic 2 control section (K) (see 5.3.2.

  • Page 14: Reverb Control Section

    IMIX-6.2 Install Mixer 2U 5.3.3. Reverb Control Section The reverb control section (mic 1/2) (C) features a reverb level control (7) for mic 1, a reverb level control (8) for mic 2, and a reverb button (9). Figure 7 Reverb level control (7) and (8) control the amount of reverb for the corresponding microphone input.

  • Page 15: Master Control Section

    IMIX-6.2 Install Mixer 2U • • If the peak LEDs (11) remain on or blink frequently, slide the corresponding fader (10) down to reduce the amplification. The BT pair button (12) enables a connection with a Bluetooth-enabled device (see 5.15. Bluetooth Pairing page 18).

  • Page 16: Auxiliary Section

    To attenuate the level, turn the level control (25) counterclockwise. 5.7. Bluetooth Module The IMIX-6.2 Install Mixer 2U features a built-in Bluetooth module (I). 5.8. Phones Section The phones section (J) features a ratio control (19), a level control (20) and a phones output (21).

  • Page 17: Master Output Section

    The phones output (21) is a 6,3 mm / 1/4" TRS socket, wired as Tip=left, Ring=right and Sleeve=ground. CAUTION Hearing damage risk Note: The IMIX-6.2 Install Mixer 2U can produce high output levels via the phones output. Make sure that the phones level control is set to 0 before connecting headphones. 5.9. Master Output Section There are two master outputs: master 1 output (P) and master 2 output (O).

  • Page 18: Microphone Section (Back)

    The IMIX-6.2 Install Mixer 2U features two ground screws: ground screw 1 (S) and ground screw 2 (V). To prevent ground loops, use a ground wire to connect the ground screw(s) on the IMIX-6.2 Install Mixer 2U to the ground screw(s) on connected secondary device(s).

  • Page 19: Recording Output

    01) Turn on Bluetooth on the device you want to pair with the IMIX-6.2 Install Mixer 2U. 02) Press and hold the BT pair button (12) on the IMIX-6.2 Install Mixer 2U until the LED indicator starts flashing. 03) Wait for your device to detect the IMIX-6.2 Install Mixer 2U and follow its instructions.

  • Page 20: Setup Example

    IMIX-6.2 Install Mixer 2U 5.16. Setup Example A typical setup example is shown below. Make sure that the IMIX-6.2 Install Mixer 2U is switched off (see 5.2. Switching ON/OFF on page 11) before connecting other devices. • • To connect an amplifier, use the unbalanced RCA outputs (26) or the balanced XLR outputs (27).

  • Page 21: Maintenance

    • • Use a ground wire to connect the ground screw(s) on the IMIX-6.2 Install Mixer 2U with the Humming or buzzing Ground loop ground screw(s) on connected secondary device(s) Maintenance 7.1.

  • Page 22: Disposal

    Approval Hereby, Highlite International declares that the device IMIX-6.2 Install Mixer 2U, product code D2354, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com).
  • Page 23 IMIX-6.2 Install Mixer 2U Product code: D2354...
  • Page 24 DAP is a brand of Highlite International B.V.
