ROTUNDA WALL-MOUNT FAUCET INSTALLATION

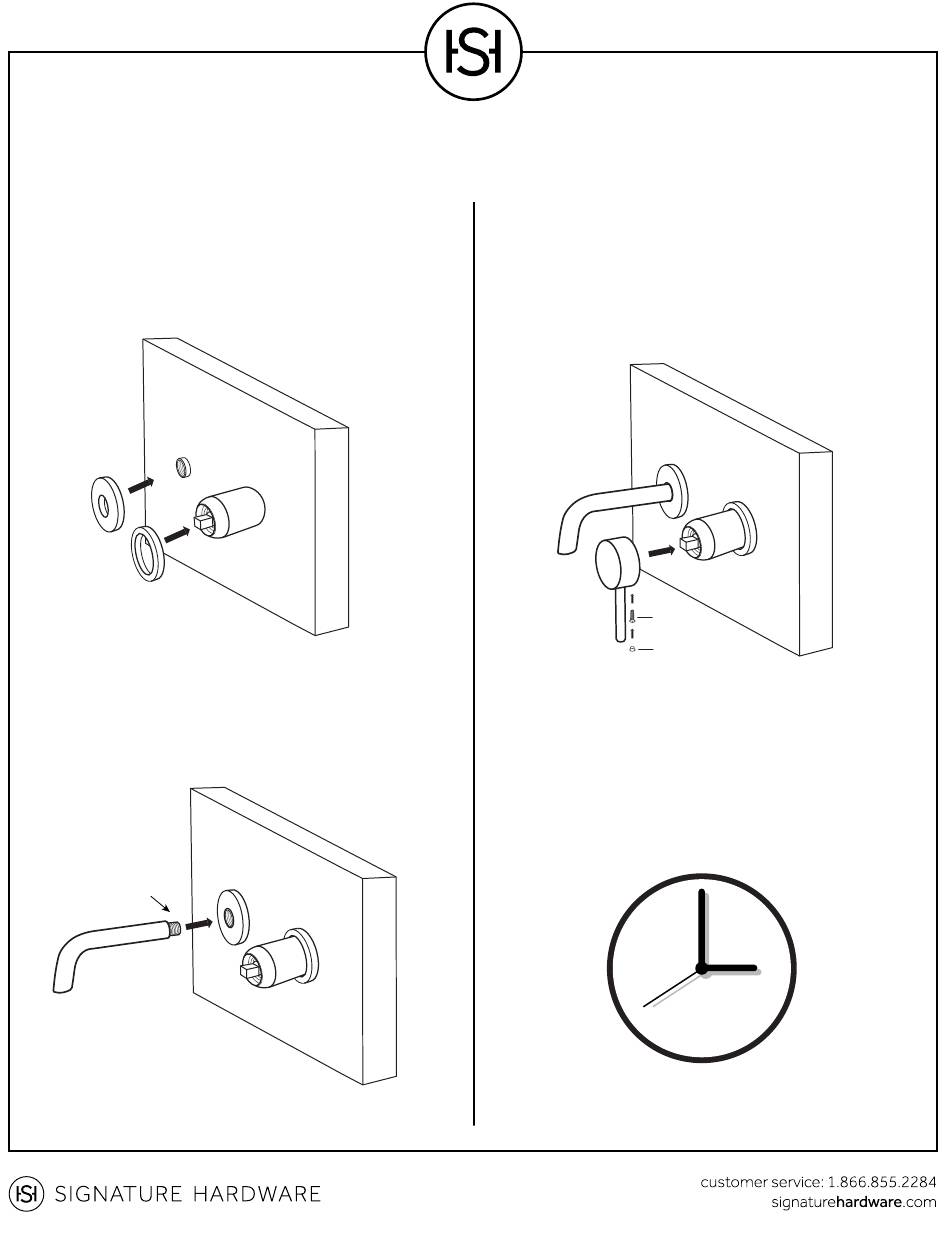

5. Slide the decorative escutcheons onto the
installed valve body, as shown.
6. Attach the spout to the valve by threading it into
its outlet, as shown. Apply plumber's tape or a small
amount of thread sealant to the threads before
attaching.
Apply thread
sealant or
plumber's tape
7. Attach the lever handle by sliding it onto the valve
stem. Remove the screw cover located on the
bottom of the handle, and tighten the set screw to
secure. Reinsert the screw cover.
Set Screw
Screw Cover
8. Once installation is complete, turn on the main
water supply. Use the provided tool to remove the
aerator from the spout. Turn the water on to allow any
dust or loose sediment to clear the system. Allow the
water to flow through the spout for approximately 60
seconds, and verify that hot and cold water are
running properly. Reattach the aerator once testing is
complete.
60 sec
Rotunda Wall-Mount Faucet Installation Instructions
3
