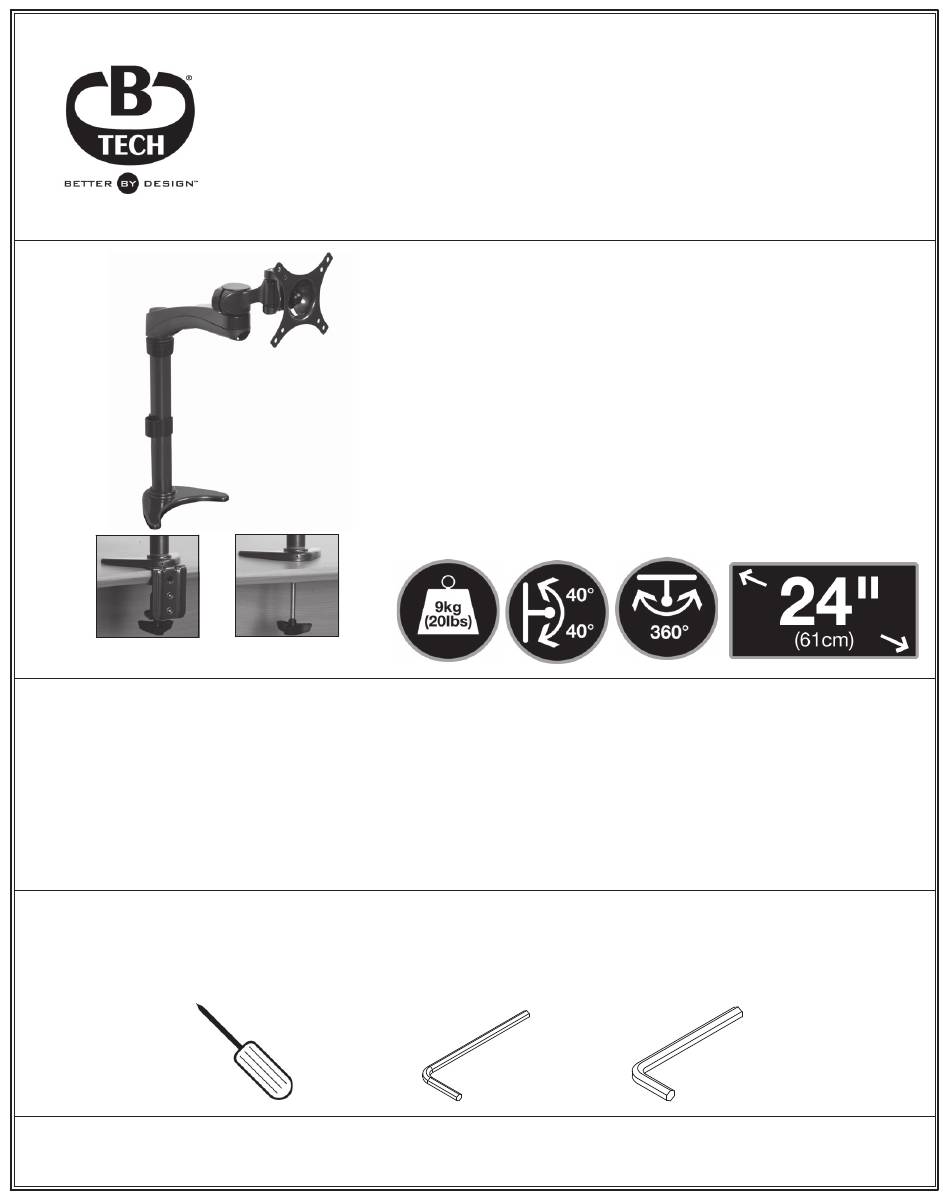

BT7372
DESK MOUNT WITH SINGLE ARM
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Desk Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
REGISTERED DESIGN NO. 001713280-0039
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................15
B-Tech Contact Details.....................................................................................................................16
INSTALLATION TOOLS REQUIRED
Crosshead
screwdriver
B-TECH AUDIO VIDEO MOUNTS
FEATURES
●
Designed for screens up to 24" (61cm) / 9kg (20lbs)
●
Fits screens with VESA mounting patterns:
75 x 75mm and 100 x 100mm
●
Optional desk clamp and grommet included
●
Easy tilt adjustment +/-40° tilt
●
Maximum extension is 285mm (11.2")
●
Features two swivel points: 360° at pole
and 180° at interface
●
Simple installation with all mounting hardware included
CONTENTS
2.5mm Hex Key
(Supplied)
www.btechavmounts.com
4mm Hex Key
(Supplied)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech BT7372
Summary of Contents for B-Tech BT7372
-
Page 1: Table Of Contents
Simple installation with all mounting hardware included REGISTERED DESIGN NO. 001713280-0039 CONTENTS Installation Safety Notes........................2 Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................15 B-Tech Contact Details........................16 INSTALLATION TOOLS REQUIRED Crosshead 2.5mm Hex Key 4mm Hex Key screwdriver (Supplied) (Supplied) B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT7372 PARTS LIST GROMMET CLAMP Suitable for loads up to 9kg (20lbs) - Page 5 PART NAME HEIGHT ADJUSTMENT COLLAR 10mm RECTANGULAR FOAM PAD 2.5mm HEX KEY (FOR PART10) 4mm HEX KEY (FOR PARTS 9 & 11) INTERFACE KIT 25mm 25mm 16mm PLEASE KEEP THIS FOR FUTURE REFERENCE...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Choose a preferred mounting method. i. Clamp (page 6) ii. Grommet (page 8) i. Desk clamp option. Max 70mm (2.8") - Page 7 Attach the foam pads to the underside of the clamp base. Place the mount over edge of the desk and tighten the short handwheel. DESKTOP...
- Page 8 ii. Grommet Clamp Max 95mm (3.7")
- Page 9 Remove the desk clamp and attach the grommet plate. Then attach the foam pads onto the grommet plate. Place the mount over the cable management hole and screw the handwheel into the grommet plate, then tighten the nut to clamp the desk. DESKTOP...
- Page 10 Attach the interface plate to the flat screen. FLAT SCREEN To lock height of adjustment collar, hold the top of the collar and rotate the lower part of the adjustment collar. LOCK COLLAR...
- Page 11 Slide the flat screen and arms onto the pole, adjust height, then tighten the grub screw. FLAT SCREEN iii. LOCK COLLAR UNLOCK COLLAR...
- Page 12 OPTIONAL : Cable Management. Insert the cable into the cable management slots on the underside of the arm. WARNING: Ensure arm is fully extended before connecting cables. FLAT SCREEN CABLE CABLE CABLE CAUTION: Ensure there is adequate cable slack for movement of the screen, and that cables will not be pinched when the mount is closed.
- Page 13 To increase tilt resistance, tighten part 9. +/-40° If this does not hold the screen at the required tilt, remove the flat screen from the interface. Then remove plastic nut cover and tighten the M8 nyloc nut. M8 nyloc nut...
- Page 14 Tilt and swivel. 360° 360° +/-90° FLAT SCREEN...
-
Page 15: Product Dimensions
DESK CLAMP, GROMMET & BASE 169mm 6.7" 100mm 3.9" 75mm 3" 83.7mm 72mm 3.3" 2.8" 120mm 4.7" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 16: B-Tech Contact Details
©2011 Bennett Technologies Limited. All rights reserved. B-Tech Audio Video Mounts is a division of Bennett Technologies Limited. B-Tech and Better By Design are registered trademarks of Bennett Technologies Limited. All other brands and product names are trademarks of their respective owners.
