- Page 1 MANUAL – INSTALLATION + SERVICE Deluxe ECM Speed Controller ECMDX Series Revision #: 01 – Issue Date: 03/11/14 © 2014 Price Industries Limited. All rights reserved.
- Page 2 DELUXE ECM SPEED CONTROLLER TABLE OF CONTENTS Product Overview General ................. 1 LED Digital Display ............1 Low Voltage Wiring ............2 BAS Input Signal ............2 Analog RPM Output SIgnal ..........3...

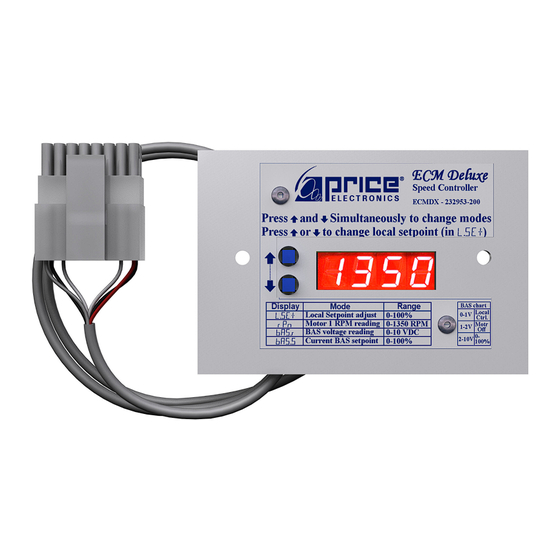

- Page 3 DELUXE ECM SPEED CONTROLLER PRODCUT OVERVIEW General ECMDX The Price Deluxe ECM speed controller works with a high efficiency ECM motor. This low voltage (24VAC) speed control allows full manual (push button adjust) or BAS (2-10VDC signal) control of the ECM motor.
- Page 4 PRODUCT OVERVIEW Low Voltage Wiring The Price Deluxe ECM speed controller works with a high efficiency ECM motor. This low voltage (24VAC) speed control allows full manual (push button adjust) or BAS (2-10VDC signal) control of the ECM motor. NOTE: 24VAC COM, BAS COM, ANALOG OUTPUT COM are all connected together.
- Page 5 DELUXE ECM SPEED CONTROLLER PRODCUT OVERVIEW Analog RPM Output Signal CAPTION A two wire connection supplies an analog (0-10VDC) signal that is directly proportional to the MOTOR 1 RPM. The range is 0 – 1500 RPM and it will output a proportional 0 – 10VDC signal. If a dual blower system is used only the RPM from motor 1 can be read.
- Page 6 DELUXE ECM SPEED CONTROLLER NOTES DELUXE ECM SPEED CONTROLLER - Manual | priceindustries.com...
- Page 7 DELUXE ECM SPEED CONTROLLER NOTES priceindustries.com | DELUXE ECM SPEED CONTROLLER - Manual...
- Page 8 This document contains the most current product information as of this printing. For the most up-to-date product information, please go to priceindustries.com © 2014 Price Industries Limited. All rights reserved.
