- Page 1 MANUAL – SERVICE + INSTALLATION BACnet Flow Controller for Fan Filter Units BFC Series v300 – Issue Date: 05/16/19 © 2019 Price Industries Limited. All rights reserved.
-
Page 2: Table Of Contents
BACNet Flow CoNtroller TABLE OF CONTENTS Product Overview General Information ............1 Installation & Mounting Instructions Typical Wiring ..............2 Input/Output Description ..........2 Display Navigation Initial Startup ..............3 Service Menu ..............4 Service Menu – Fan ............5 Service Menu –... -
Page 3: Product Overview General Information

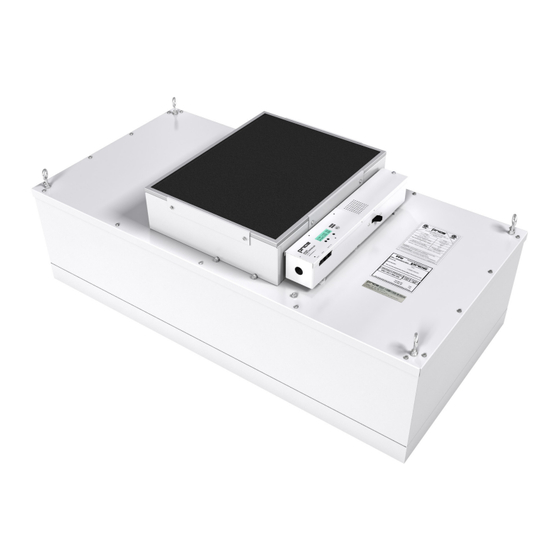

BACNet Flow CoNtroller PRODUCT OVERVIEW General Information The BACnet Flow Controller (BFC) is a BTL listed DDC fan controller designed specifically for controlling flow through Fan Filter Units (FFU) with EC motor technology. The BFC controls an EC motor through a local setpoint which is adjustable using a push button interface on the BFC, by an analog BAS input voltage, or over BACnet. -
Page 4: Installation & Mounting Instructions Typical Wiring
BACNet Flow CoNtroller INSTALLATION & MOUNTING INSTRUCTIONS typical wiring For every controller ordered with the BACnet option, an optional CAT-5 network cable can be provided by Price. Factory Wired -24V COM +24V HOT RED CABLE RED LED WHITE CABLE GREEN LED... -
Page 5: Display Navigation Initial Startup
BACNet Flow CoNtroller DISPLAY NAVIGATION Initial Startup When the BFC controller is powered up with 24VAC it will display the following information. PrICe Start–up screen eleCtroNICS Displays firmware version VX.X.X eCM SPeeD Displays RPM of motor 1 X rPM CUrreNt CFM... -
Page 6: Service Menu
BACNet Flow CoNtroller DISPLAY NAVIGATION Service Menu Hold down Menu button for 5 seconds, display will show ‘Passcode’. Use Up and Down arrow buttons to enter this sequence: Down, Up, Up, Down. Use Up and Down arrow buttons to navigate through the menu. Use the menu button to enter and exit specific menus. Sub Menu Accessible Menu Items Unit Style Supply... -
Page 7: Service Menu - Fan
BACNet Flow CoNtroller DISPLAY NAVIGATION Service Menu – Fan Press Menu button to enter this menu. Use Up and Down arrow buttons to navigate through. Use the menu button to enter and exit specific menu items. UNIt StYle SUPPlY Read Only - Factory set for supply or return airflow Displays the ECM motor calibration for FFU nominal size (2x2) UNIt SIZe Selectable sizes are: 2’... -
Page 8: Service Menu - Filter
BACNet Flow CoNtroller DISPLAY NAVIGATION Service Menu – Filter Press Menu button to enter this menu. Use Up and Down arrow buttons to navigate through. Use the menu button to enter and exit specific menu items. Adjust filter type, BTR, RSR. FIlter tYPe BTR = Bench Top Removable RSR = Room Side Removable FIlter loAD... -
Page 9: Service Menu - I/O
BACNet Flow CoNtroller DISPLAY NAVIGATION Service Menu – I/o Press Menu button to enter this menu. Use Up and Down arrow buttons to navigate through. Use the menu button to enter and exit specific menu items. BAS (AI1) Read Only – Displays current input BAS voltage for motor speed control 0 VDC Read Only –... -
Page 10: Service Menu - Bacnet
Press Menu button to enter this menu. Use Up and Down arrow buttons to navigate through. Use the menu button to enter and exit specific menu items. reStore This allows a full controller reset, and will revert all user changes back to Price defaults DeFAUltS PreSS MeNU to eXIt BACNet FLow CoNtroLLer - Manual | priceindustries.com... -
Page 11: Networking & Setup
CAT5 cable. Also pre-terminated - ¨ B/- (ORANGE) CAT5 cables are available from + ¨ A/+ (ORANGE/WHITE) SC ¨ NETCOM (BROWNS) Price. Model code: NETc35 (35 ft plenum rated cable, terminated with RJ45 plugs, 568-B standard) priceindustries.com | BACNet FLow CoNtroLLer - Manual... -
Page 12: Network Layout
Network layout The BFC can be connected over BACnet MS/TP and added to an existing BAS front end system. Price also offers its own mini front-end system known as FFU-BFC-FE which acts as a graphics package. The Price WEB Server allows the user to view variables such as filter status, CFM, etc. - Page 13 BACNet Flow CoNtroller NETWORKING & SETUP CoNNeCtIoN eXAMPle (GreAter tHAN 30 UNItS) IP router wIrING Power Ethernet Network Network MS/TP Network Connection IP switches or BACnet routers webserver IP Switch IP Switch IP Switch IP router BACnet BACnet BACnet BACnet BACnet BACnet BACnet...
-
Page 14: Package/Component Identification
Please ensure you have all components before proceeding. Inspect components for shipping damage. Do not install components that appear damaged. Contact your local PRICE Sales Rep for quick ship replacements. As always, for the latest information and 3. DIN RAIL video please visit priceindustries.com. -
Page 15: Location
INSTALLATION & MOUNTING INSTRUCTIONS location The Front-End components should be mounted in an accessible location close to a network connection. Price suggests mounting these components in the network or server room. The WEB-SERVER, PRTU-IP-RTR, PRTU-BAC-RTR, and PRTU-IP-SWITCH (if applicable) should all be mounted together. -
Page 16: Mounting
Using 3 screws (by others) mount the DIN rail horizontally to a secure, accessible surface. Hang the Price PRTU-WEB onto the DIN rail using the TOP white clips. Using the Price Electronics screwdriver, gently pull down on the BLACK clip, while pushing gently on the WEB- SERVER towards the DIN rail. -
Page 17: Bas Input Signal
BACNet Flow CoNtroller NETWORKING & SETUP BAS Input Signal The BAS input signal overrides the local setpoint using a remote 0 – 10VDC signal. If the BAS signal drops below 1VDC local control (via the push buttons) is restored. BAS Voltage Response Notes 0-1 VDC... -
Page 18: Analog Rpm Feedback
BACNet Flow CoNtroller NETWORKING & SETUP Analog rPM Feedback A two wire connection supplies an analog (0-10 VDC) signal that is directly proportional to the MOTOR 1 RPM. The range is 0 – 2500 RPM and it will output a proportional 0 – 10 VDC signal. If a dual blower system is used, only the RPM of motor 1 can be read. -
Page 19: Wiring And Cables
NETWORKING & SETUP wiring and Cables *For In depth ECM motor troubleshooting, please refer to ECM Troubleshooting Manual on Price Industries’ website. The ECM speed controller requires 24 VAC power from a transformer and outputs control signals to the ECM motor on dual MTA- 100 jacks. -
Page 20: Maintenance Troubleshooting
Keep this consistency throughout the network. Option #2 Price does not use EOL or termination on their devices. Terminating a device is almost never required at the low baud rate of MS/TP devices. In fact terminating can create more problems than it solves. -
Page 21: Specifications
BACNet Flow CoNtroller MAINTENANCE Specifications Power: Pluggable 24 VAC, 50/60 Hz, 50 VA Class 2 Input Power: 24 VAC, 50/60 Hz, 5 VA (plus external loads), Class 2 Environmental (operating): 10°C to 50°C (50°F to 122°F), 0% to 95% RH (non-condensing) Environmental (storage): -30°C to 50°C (50°F to 122°F), 0% to 95% RH (non-condensing) 1 Thermistor Input (10K Ohm, Type J) -
Page 22: Bacnet Points List For Bfc Firmware V2.0.0
BACNet Flow CoNtroller MAINTENANCE BACnet points list for BFC firmware v2.2.0 RETAINED Object Name Units Default Range Description ON POWER FAILURE Analog Output can be tied to several Analog Input 1 Volts DC Dynamic Dynamic signals. See O&M manual for detail. I/O (BAS) Menu Analog Output can be tied to several... - Page 23 BACNet Flow CoNtroller MAINTENANCE BACnet points list for BFC firmware v2.2.0 RETAINED Object Name Units Default Range Description ON POWER FAILURE "1 Off 2 Normal Unit Status Text Dynamic 4 States 3 No RPM Signal 4 Overspeed" "1 BACnet 2 BAS Control Mode Text Dynamic...
- Page 24 This document contains the most current product information as of this printing. For the most up-to-date product information, please go to priceindustries.com © 2019 Price Industries Limited. All rights reserved.
