molex 11-31-6356 Instruction Manual

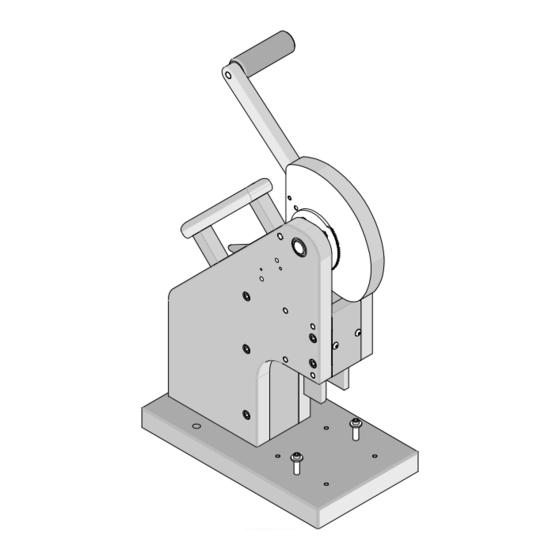

Standard manual assembly press
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Molex Standard Manual Assembly Press
Description
Operation
Maintenance
Order No: TM-011316356
Revision: D
Molex Standard Manual Assembly Press

Instruction Manual

Order No. 11-31-6356
Engineering No. AM-60026-50
Release Date: 02-05-99
Revision Date: 10-08-09
UNCONTROLLED COPY
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11-31-6356 and is the answer not in the manual?

Questions and answers

Related Manuals for molex 11-31-6356

Summary of Contents for molex 11-31-6356

  • Page 1: Instruction Manual

    Molex Standard Manual Assembly Press Molex Standard Manual Assembly Press Instruction Manual Order No. 11-31-6356 Engineering No. AM-60026-50 Description Operation Maintenance UNCONTROLLED COPY Order No: TM-011316356 Release Date: 02-05-99 Page 1 of 16 Revision: D Revision Date: 10-08-09...
  • Page 2 Molex Standard Manual Assembly Press WARNING NEVER OPERATE, SERVICE, OR ADJUST THIS PRESS OR INSTALL CRIMP DIES WITHOUT PROPER INSTRUCTION AND WITHOUT FIRST READING AND UNDERSTANDING THE INSTRUCTIONS IN THIS MANUAL. WORK SAFELY AT ALL TIMES For Service, Contact Your...
  • Page 3 Molex Standard Manual Assembly Press Table of Contents SECTION General Description Installation, Setup, and Operation Maintenance and Troubleshooting Parts List and Assembly Drawings UNCONTROLLED COPY Order No: TM-011316356 Release Date: 02-05-99 Page 3 of 16 Revision: D Revision Date: 10-08-09...

  • Page 4: General Description

    Molex Standard Manual Assembly Press Section 1 General Description 1.1. Description 1.2. Features 1.3. Technical Specifications 1.4. Delivery Check 1.5. Tools UNCONTROLLED COPY Order No: TM-011316356 Release Date: 02-05-99 Page 4 of 16 Revision: D Revision Date: 10-08-09...

  • Page 5: Technical Specifications

    533mm (21.00”) Description Width 152mm (6.00“) Depth 267mm (10.50“) The Molex Standard Manual Assembly Press (11- Unpacked weight 23.2kg (50.5 lbs) 31-6356) is versatile, reliable, and inexpensive to operate. It is designed to provide an effective Production Rate method of apply force to a wide variety of terminating and crimping dies.

  • Page 6: Installation

    Molex Standard Manual Assembly Press Section 2 Installation 2.1. Instaltion 2.2. Set-Up 2.3. Operation UNCONTROLLED COPY Order No: TM-011316356 Release Date: 02-05-99 Page 6 of 16 Revision: D Revision Date: 10-08-09...
  • Page 7 Left of Right Handed Operation The Ram Stroke Adjustment is made only when there is a tool kit installed. The Molex Standard Manual Press can be set up for either left or right handed operators by 1. Place the proper tooling into the press.

  • Page 8: Operation

    Molex Standard Manual Assembly Press 2.3 Operation ADJUSTING SCREW To cycle the press, pull the press ram handle #8-32 SET down and then return it to its original position. SCREW .207” (5.26mm) MAXIMUM HANDLE DEPTH POSITION IN THE DOWN MINIMUM...

  • Page 9: Maintenance

    Molex Standard Manual Assembly Press Section 3 Maintenance 3.1. Cleaning 3.2. Lubrication 3.3. Perishable Parts 3.4. Spare Parts 3.5. Troubleshooting UNCONTROLLED COPY Order No TM-011316356 Release Date: 02-05-99 Page 9 of 16 Revision: D Revision Date: 10-08-09...
  • Page 10 Grease the ram including the up and down stroke feed arm. Oil all moving parts of the press. Lubricate with multipurpose synthetic lubricant with Teflon or an equivalent. Molex ships its presses pre-greased with Permatex multi-purpose synthetic grease with Teflon No. 82329. A SAE 10 non-detergent oil or light spindle oil or 3-in-1 oil should be used on pivot points.

  • Page 11: Spare Parts

    There are no perishable parts for Molex Standard Manual Assembly Press. The various tooling kits will have perishable parts. Molex recommends that all customers keep at least one set of the perishable tool kit in stock at all times. This will reduce the amount of production down time. For the proper perishable tool kit information, refer to the Individual Instruction Manual supplied with the Tooling Kits.

  • Page 12: Troubleshooting

    Molex Standard Manual Assembly Press 3.5. Troubleshooting Symptom Cause Solution Improper gauge wire See product for wire gauge Wire does not terminate Adjust the ram stroke. See Ram Stroke properly in terminal Termination punch set to high or to deep Adjustment See Set-Up.
  • Page 13 Molex Standard Manual Assembly Press Section 4 Parts List Assembly Drawings UNCONTROLLED COPY Order No: TM-011316356 Release Date: 02-05-99 Page 13 of 16 Revision: D Revision Date: 10-08-09...

  • Page 14: Parts List

    Molex Standard Manual Assembly Press Parts List Molex Standard Manual Assembly Press 11-31-6356 (AM-60026-50) Item No. Order No. Engineering No. Description Quantity 11-31-7100 AM-60026-1 Base 11-31-7101 AM-60026-2 Frame Right Hand 11-31-7102 AM-60026-3 Frame Left Hand 11-31-7103 AM-60026-4 Tension Column 11-31-7104...
  • Page 15 Molex Standard Manual Assembly Press Molex Standard Manual Assembly Press 11-31-6356 (AM-60026-50) Item No. Order No. Engineering No. Description Quantity 5/16 by 1.0” Long Dowel Pin 1/4 by 1-1/2” Long Dowel Pin ** Available from an industrial supply company such as MSC (1-800-645-7270).
  • Page 16 2222 Wellington Ct. 1-800-78MOLEX 81-462-65-2324 65-6-268-6868 49-89-413092-0 Lisle, IL 60532 U.S.A. amerinfo@molex.com feninfo@molex.com fesinfo@molex.com eurinfo@molex.com 630-969-4550 Fax: 630-969-1352 Visit our Web site at http://www.molex.com UNCONTROLLED COPY Order No: TM-011316356 Release Date: 02-05-99 Page 16 of 16 Revision: D Revision Date: 10-08-09...
