closing the circuit turns the machine on, and breaking the circuit turns the machine off.
Remote On/Off Method 2: 5V sb PSU supports an external MCU, which controls a transistor
or MOSFET to manage the ON/OFF pins to switch the PSU ON/OFF remotely. The PSU will
turn on once power is provided to the 5V sb pin.
5 Order Information & Wire Type

5.1 Order Information

APW3-12-1600-B2

5.2 Wire Types

PSU Wire Type
Revision
Rated Power (W)
Voltage Output (V)
PSU Model #

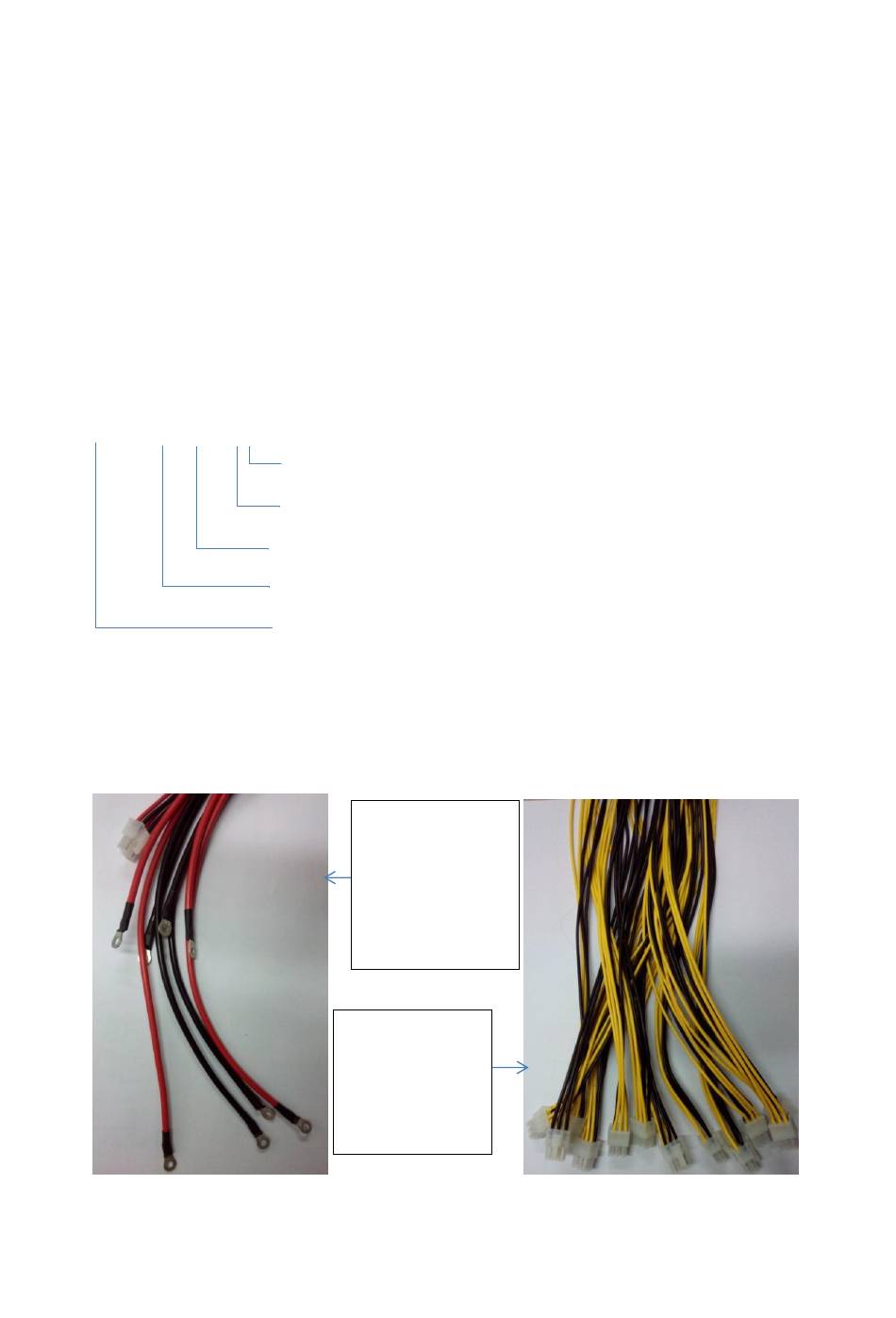

Type 1:
4 pairs of
round terminal
connectors and 1
PCI-E 6
connector
Type 2:
12 pairs of 6 pin
PCI-E connectors.
450mm length for
each PCI-E.
APW3-12-1600 Series
M4
pin
May 14, 2015 Version 1.1
Page 6 / 9
