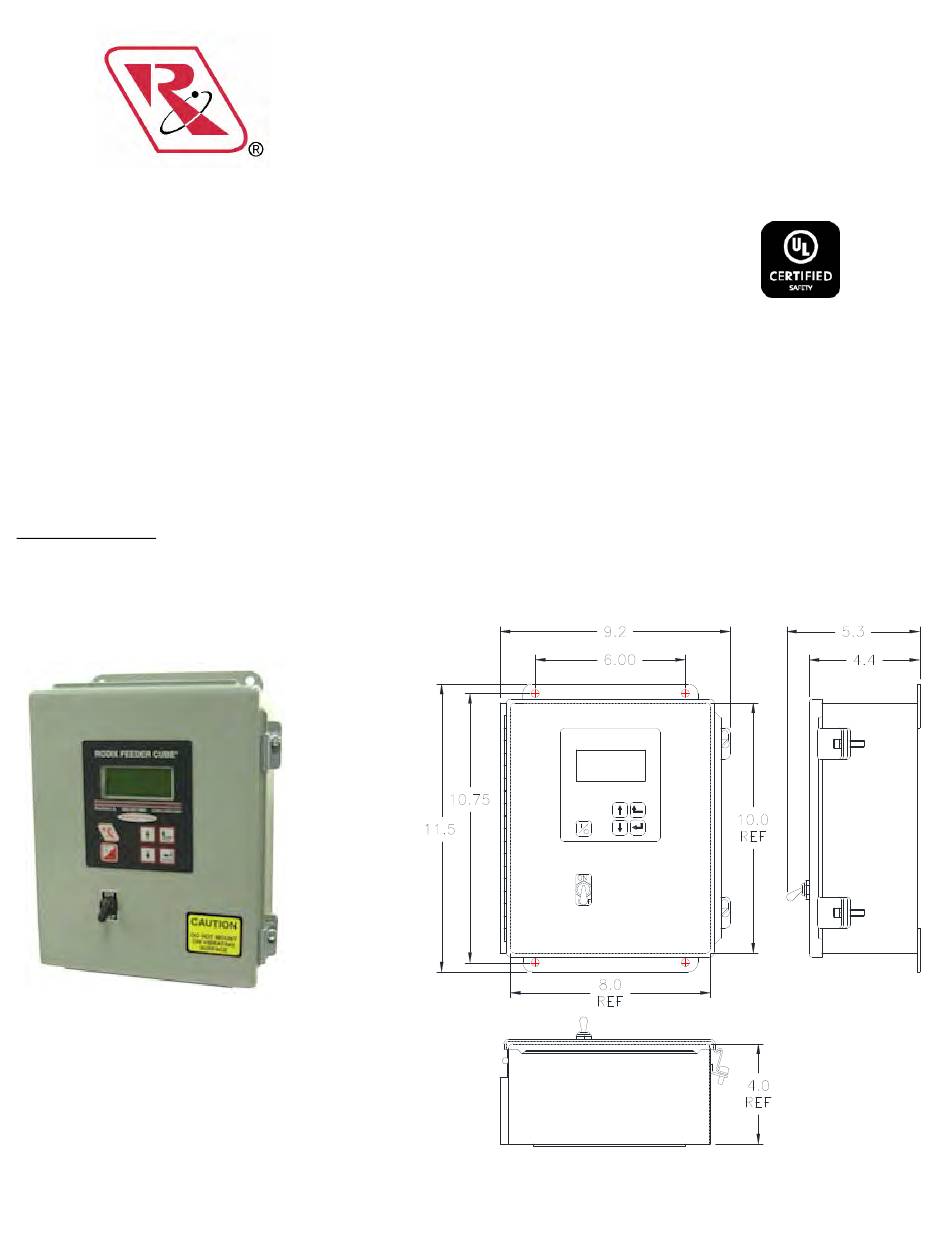

FEEDER CUBE ®
VF-3-OR, P/N 121-000-0772* and 121-200-0772
* Includes CFR vibration sensor P/N 123-215
OIL RESISTANT MODEL
IMPORTANT: APPLICATION NOTE
Input: 85 - 264 VAC, 50/60 HZ.
Single Unit Fuse Size: 5 AMPS
Output: 0 - 120/240 VAC
Maximum output voltage matches input voltage
Output Frequency: 5 - 300Hz
Rated Output Current: 3 Amps at 120V or 1.5 Amps at 240V
Rated for IP54 environment
UL rated for Type 5 environment
Model Information: The Autotune Series of Variable Frequency Feeder Cubes® generates an output frequency for feeding
that is independent from the power line frequency. An optional vibration sensor, P/N 123-215, can be used to maintain the
vibratory feeder at a constant feed rate. The start/stop operation of the output can be controlled with an optional parts
sensor. For more information on this control, refer to the enclosed Adjustments and Set Up pages.
© 2005, 2017 RODIX
RODIX INCORPORATED
TOLL FREE (800) 562-1868, FAX (815) 316-4701
E-mail custserve@rodix.com
rodix.com
.
INC
File No. E183233
5/4/2017 Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Autotune Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rodix Autotune Series

Summary of Contents for Rodix Autotune Series

  • Page 1 UL rated for Type 5 environment Model Information: The Autotune Series of Variable Frequency Feeder Cubes® generates an output frequency for feeding that is independent from the power line frequency. An optional vibration sensor, P/N 123-215, can be used to maintain the vibratory feeder at a constant feed rate.

  • Page 2: Sensor Option

    1N4006 DIODE RODIX INC.  FEEDER CUBE AIR VALVE 12VDC, <1 WATT VF Series WIRING DIAGRAM  Aux Out Air-Valve Connections Figure 2 Chassis OPTICS Bl #14 CFR Sensor P/N 123-215 INPUT Bl #14 BANNER SM312FP1H Bl #14 OPTIC SENSOR...

  • Page 3: Adjustments & Set Up

    Bowl/Hopper Interlock “+” and “sig” (see TB2 on the hoppers and linear inline feeders. The VF Series for proper cooling. wiring diagram) can be connected to a Rodix FC-40 output frequency can be adjusted to match the Plus All-Purpose Series control (TB2-11 & 12) when The VF-18 control and heat sink are cooled by a fan.

  • Page 4: Software Adjustments

    setting. For 208 and 240VAC applications, cut the plug off the tooling, reduces spring shock, and can D. The Arrow Up key allows the user to step up end(s) off and make proper plug-in connections for eliminate hammering when the control turns ON. The through the program menu or to increase a the factory’s power lines.
  • Page 5 bowl is much like finding a station on the AM radio band range larger before a reaction takes place. The Min Frequency adjustment specifies the band. Set the amplitude to about 30%. Then This setting normally doesn’t need to be changed. frequency used when the 0-10VDC input is at adjust the frequency across its range.
  • Page 6 If an “Over A. The control comes with the security setting Feeder Cube® and Auto Tune® are registered TM of Rodix Inc. Current” occurs, press the “1/0” key to restart the “Unlocked” so the control can be set up. The Banner...
  • Page 7 Steps to Interlock Two VF Series Controls together If a PLC is interfaced to both controls, optical isolation is necessary, see step 4 below. 1. Remove the run jumper from TB2 terminals 8 & 9 of the subordinate control. 2. Add a wire from terminal 3 of the master control to terminal 8 of the subordinate control. 3.

  • Page 8: Normal Operation Display

    Control Menu Layout for VF-3, VF-9 Normal Operation Display Press and hold ‘Enter’ key to enter the program menu or get to the security menu. Then use the “Enter” key to move right from Main Menu to Sub Menu to the Adjustable Setting. Use the “Back” key to move left. Main Menu Sub Menu Adjustable Setting...
  • Page 9 The cable should www.rodix.com is in the same direction as the vibration of the hang straight down from the sensor without touching feeder. The double-ended arrow in figure 1 shows © 2005 RODIX INC. VF-9 CFRsensor 171704.doc...
  • Page 10 Rodix controls have been designed with a AUX output. The shield “drain” wire high degree of immunity to electrical should be tied to the chassis in the Rodix RECTIFIER noise; however, depending on the control RELAY DIODE control. The drain wire should be kept...
