Sensor Option - Rodix Autotune Series User Manual

Bl #14
L1 1
INPUT
Bl #14
2
L2
Bl #14
3
Out +
OUTPUT
Bl #14
4
Out -
Tighten Main Terminals
to 9 in. lbs.
Chassis
INPUT POWER
85 - 264 VAC
Chassis
F1
F2
L2 L1 E E E O + O - 14
+
Line Load
Input Out
Accel.
TB1
1
LCD Display
High Voltage LED
Danger!
Shock
Hazard
Figure 1
1N4006 DIODE
AIR VALVE
+
12VDC, <1 WATT
-
TB2
3 2 1
-
+
SIG
Aux Out
Air-Valve Connections
Figure 2
CFR Sensor
P/N 123-215
Br +
Bl SIG
Br
Bu
Bu -
ACCEPTS BOTH OPTIC AND PROX SENSORS, NPN OR PNP.
CONNECT SINK OR SOURCE WIRE TO "SIG" INPUT
RUN
JUMPER
13 12 11 10 9 8 7 6 5 4 3
- - -
+ + + + +
S S S
Analog Enable SENSOR Aux Out
R21
TB4 Keypad
P1
LC D C ontrast

OPTICS
BANNER
SM312FP1H
OPTIC SENSOR

SENSOR OPTION

P/N 111-500
MASTER CONTROL
+
-
BOWL/HOPPER
INTERLOCK OUTPUT
TB2
2 1
-
S
R27
1
TB3
RODIX, INC.
Toll Free (800) 562-1868, FAX (815) 316-4701
Email custserve@rodix.com
rodix.com
VF-3-OR cover.docx 6/2/2017 Page 2
RODIX INC.

FEEDER CUBE
VF Series

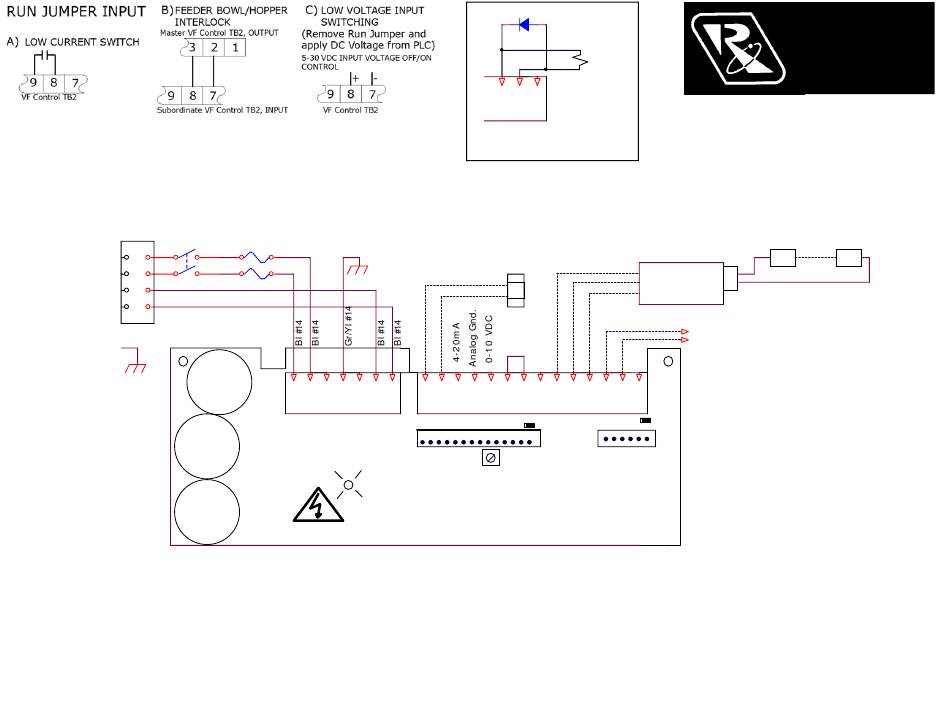

WIRING DIAGRAM
