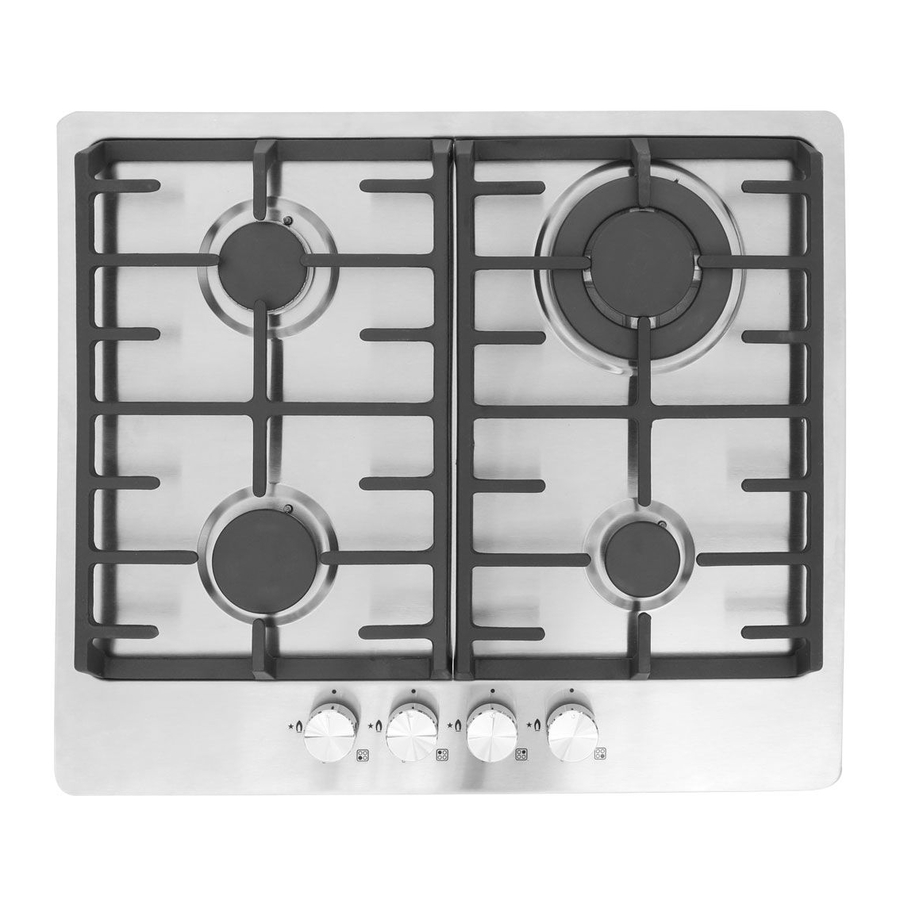

Gas Hobs Instruction Manual:
Applicable Models:
MGH61CX-BG, MGH75CX-BG, MGH90CX-BG
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
MGH30X-BG, MGB60X,
Advertisement
Table of Contents
Related Manuals for montpellier MGB60X
Summary of Contents for montpellier MGB60X
- Page 1 Installation and Operating Instructions Gas Hobs Instruction Manual: Applicable Models: MGH30X-BG, MGB60X, MGH61CX-BG, MGH75CX-BG, MGH90CX-BG Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Gas Hob. Our Gas Hobs have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Gas Hob to ensure you get the most from your purchase.
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Make sure that this instruction booklet is read thoroughly and understood before attempting to install or operate this hob. The instructions are provided in the interest of your safety. GAS SAFETY REGULATIONS AND USE OF YOUR HOB 1. It is a legal requirement that all gas appliances are installed by qualified personnel only in accordance with current legislation. - Page 4 1750W 1000W MGB60X MGH90BG Even if you have used a gas hob before, it is important that you read these instructions thoroughly before using the appliance, paying particular attention to the installation and safety instructions. If you have any problems installing, operating or cooking with your hob, please check through these instructions to ensure all of them have been adhered to.
-
Page 5: Installation Instructions
2.0W 860x510x100 Stainless 3.0kW 1.75kW 1.0kW 1.1W MGB60X 580x500x85 557x477 steel 3. CLEANING CAST IRON OR ENAMELLED PARTS In order to clean the hotplate, burner caps and pan supports on your hob, please use a soft cloth and hot, soapy water. -
Page 6: Installation Location
WARNING! a) Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are comptaible; b) The adjustment conditions for this appliance are tated on the label(or data plate); c) This appliance is not connected to a combustion products evacuation device, It shall be installed and connectd in accordance with current installation regulations. -
Page 7: Installation Options
Fix the seal to the hob evenly and securely, pressing it firmly in place. Unit: mm MGH30X MGH30BG 62 150min 90min 750min 283 498 MGB60X MGH61CX MGH61BG MGH75CX MGH75BG Fig. 4 62 150min 90min 750min... -
Page 8: Electrical Connection
N.I.C.E.I.C. and will comply with I.E.T. and local regulations. The wires in the mains lead are coloured in accordance with the following code: Green & Yellow = Earth, Blue = Neutral, Brown = Live. MGB60X MGH61CX MGH30X... -
Page 9: User Instructions
INJECTOR REPLACEMENT TABLE NORMAL NORMAL INJECTOR NOMINAL HEAT BURNERS PRESSURE RATE DIAMETER INPUT (kW) DESCRIPTION mbar mm (error ±0.01) MIN. BUTANE 28-30 0.49 AUXILIARY PROPANE 37 20 0.49 NATURAL 0.72 BUTANE 28-30 1.75 0.67 PROPANE 37 20 1.75 0.67 SEMI-RAPID NATURAL 1.75 0.97... -
Page 10: Troubleshooting
Small Medium Model PIN number Big (Rapid) Triple gas hob (Auxiliary) (Semi-rapid) 55.5% MGH30X 55.5% 2531CT-0052 MGH30BG 56.1% 54.1% 55.1% 2531CT-0052 MGB60X 56.5% 2531CT-0054 MGH61CX 55.1% 55.1% 55.1% 2531CT-0053 MGH61BG 56.5% 2531CT-0054 2531CT-0054 MGH75CX 55.5% 54.5% 55.5% MGH75BG 56.5% 56.5%... - Page 11 Your 2 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 12 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
